By AVLink

HX-2344Z Set

RM5,800.00
RM5,800.00

This seamless HDBaseT matrix switcher is a high-performance HDMI routing device for video and audio, enabling input/output cross-switching. Using extensible RJ-45 devices, it transmits images to each output up to 70 meters with HDBaseT zero-compression technology, minimizing signal loss for high-definition, high-fidelity output.
Total: MYR 5,800.00
SKU: SW0009
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

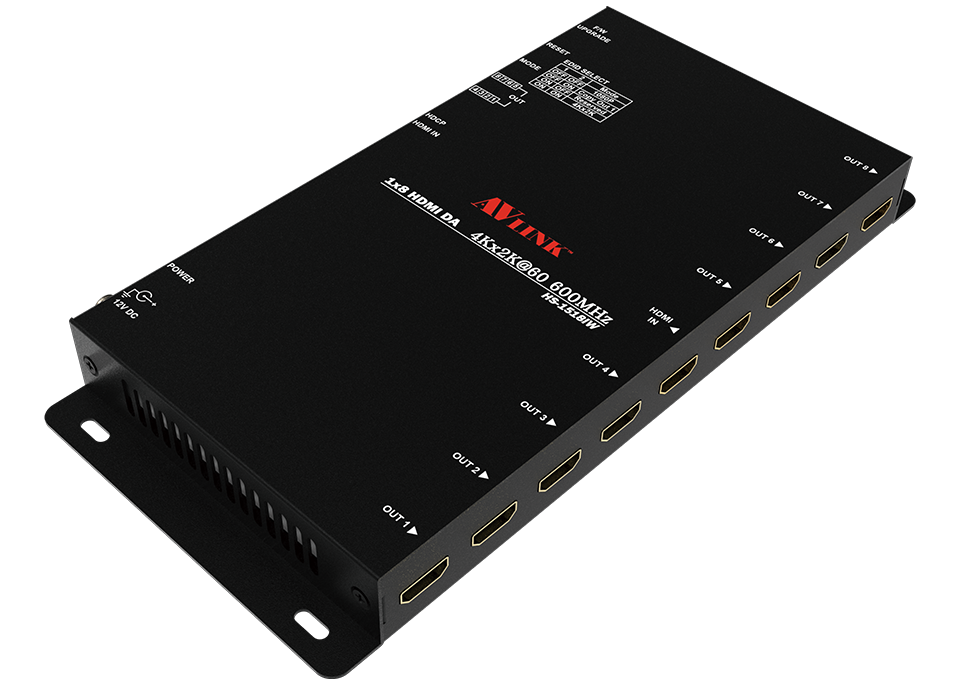

AVLinkHS-1518IW
HS-1518IW
HX-SRW
AVLinkHX-SRW
HX-2344Z Set
RM5,800.00
RM5,800.00
  • A 4x4 seamless HDBaseT matrix switcher built for professional AV installations — the HX-2344Z routes HDMI sources to multiple HDBaseT outputs with glitch-free switching, extensive video conversion, and full system control, all in a compact 1U rack-mount chassis.
  • Truly Seamless 4x4 SwitchingGlitch-free, instant transitions between any of the 4 HDMI inputs across all 4 HDBaseT outputs.
  • 70m HDBaseT ExtensionZero-compression HDBaseT technology extends each output up to 70 meters over a single Cat.5e cable, with Power over Cable support.
  • Built-In Video ConversionInterlace-to-progressive, up-convert, down-convert and cross-convert let you mix sources and displays of different resolutions on the same system.
  • Full High-Definition AudioPasses through Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio for a true home-theatre-grade signal chain.
  • Multiple Control OptionsRS-232, RS-485, LAN with built-in web server, IR remote and front-panel control cover virtually any integration scenario.
  • Duplex IR Pass-ThroughIR signals pass through every port in both directions, so remotes work at the display end just as they would locally.
  • EDID Management & PresetsBuilt-in EDID management and up to 8 memory presets make it easy to standardise settings across a multi-room deployment.
  • Video/HDMI
    • Inputs: 4x HDMI
    • Outputs: 4x HDBaseT (RJ-45)
    • Max Resolution: 1080p@60Hz (12-bit)
    • Highest TMDS Frequency: 225MHz
    • Supported Output Resolutions: VGA, 480p, SVGA, XGA, 720p, SXGA, UXGA, 1080p60
    • Video Conversion: Interlace-to-Progressive, Up-Convert, Down-Convert, Cross-Convert
    • Aspect Ratio Modes: Full, 1:1
    • HDCP Compliant
    • Audio Pass-Through: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
  • Distance/Extension
    • HDBaseT Zero-Compression Extension: up to 70m over a single Cat.5e cable
    • HDMI Cable Distance: 10m minimum
    • Power over Cable (PoC) Supported
  • Control/Connectivity
    • RS-232: 9-pin D-type, 9600bps
    • RS-485: 1x 5-pole captive screw
    • LAN: HTTP, DHCP, TCP/IP, ICMP, built-in web server
    • IR Pass-Through: duplex, on all ports
    • EDID Management
    • Memory Presets: up to 8
    • Hot-Pluggable with auto-skip for powered-off/unplugged ports
  • General/Physical
    • Dimensions (W x D x H): 332 x 482 x 44mm (1U rack-mount)
    • Weight: 3950g
    • Housing: Black aluminum
  • Power
    • Input: 100-240VAC, 50/60Hz
    • Internal power supply
  • What's in the Box
    • HX-2344Z matrix switcher unit
    • RS-232 cable
    • Power cord
    • IR extended line
    • 4x female 1x3-pole captive screw sockets
    • 2x female 1x5-pole captive screw sockets
    • RJ-45 cable
    • Remote controller with 2x AAA batteries
    • Software CD with user manual
