By AVLink

HS-1518IW

Enquire for price

This HDMI distribution amplifier transmits a uniform image from a single HDMI source, such as a DVD player, media player, PC, or laptop, to up to eight display projectors or HDTVs supporting 4K@60Hz resolution.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "HS-1518IW".
Total: MYR 0.00
SKU: S0007
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

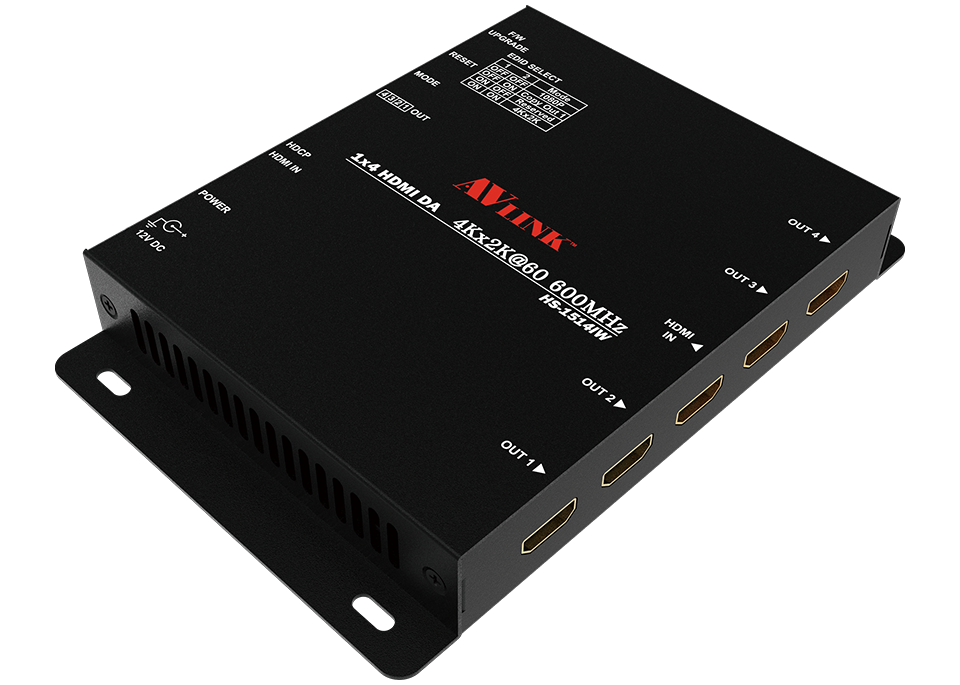

AVLinkHS-1514IW
HS-1514IW
HX-2344Z Set
AVLinkHX-2344Z Set
HS-1518IW
Enquire for price
  • The HS-1518IW is a 1-in/8-out HDMI distribution amplifier that sends one 4K@60Hz source to eight displays at once with identical image quality — a straightforward way to feed a bank of screens, a showroom wall, or a training room of monitors from a single player.
  • True 4K@60Hz 4:4:4 DistributionSupports UHD (3840x2160) and DCI 4K (4096x2160) at 60Hz over HDMI 1.4/2.0 with 18Gbps bandwidth.
  • 1 In, 8 Identical OutputsSplits a single HDMI source to eight displays simultaneously, all showing the same image.
  • HDCP 1.4/2.2/2.3 CompliantWorks reliably with protected 4K content from Blu-ray players, streaming boxes and PCs.
  • Cascadable DesignLink multiple units together to expand beyond 8 outputs for larger display arrays.
  • EDID & CEC ManagementEDID is managed from Output 1, and CEC pass-through is supported so connected displays behave predictably.
  • Field-Upgradable FirmwareFirmware can be updated via the USB-B port to keep the unit current.
  • Video/HDMI
    • Format: 1 In, 8 Out HDMI distribution amplifier
    • Resolution: Up to 4K UHD (3840x2160) and DCI 4K (4096x2160) @ 60Hz 4:4:4
    • HDMI Standard: HDMI 1.4/2.0, 18Gbps bandwidth
    • HDCP: 1.4 / 2.2 / 2.3 compliant
    • 3D: Supported
    • Audio: Dolby Digital / DTS-HD / Dolby TrueHD pass-through
  • Control
    • EDID: Managed from OUTPUT 1
    • CEC: Supported via OUTPUT 1
    • Firmware Upgrade: Via USB-B port
    • Status Indicator: LED
  • Connectivity
    • Input: 1x HDMI
    • Output: 8x HDMI (identical outputs)
    • Cascadable: Yes, for further output expansion
  • General/Physical
    • Foot Pads: 4x included
    • Mounting Screws: 2x included
  • Power
    • Power Supply: DC 12V adapter (included)
  • What's in the Box
    • HS-1518IW HDMI Distribution Amplifier (x1)
    • DC 12V Power Adapter (x1)
    • Mounting Screws (x2)
    • Foot Pads (x4)
    • User Manual (x1)

    • Download User Manual
