By AVLink

HX-SRW

RM440.00
RM440.00

This HDBaseT receiver unit (remote) supports 4K transmission up to 70m with IR control, DC12V with lock support, and compatibility with the HX-2444, HX-2488, and HX-341616 HDBaseT switchers.
Total: MYR 440.00
SKU: SW0012
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

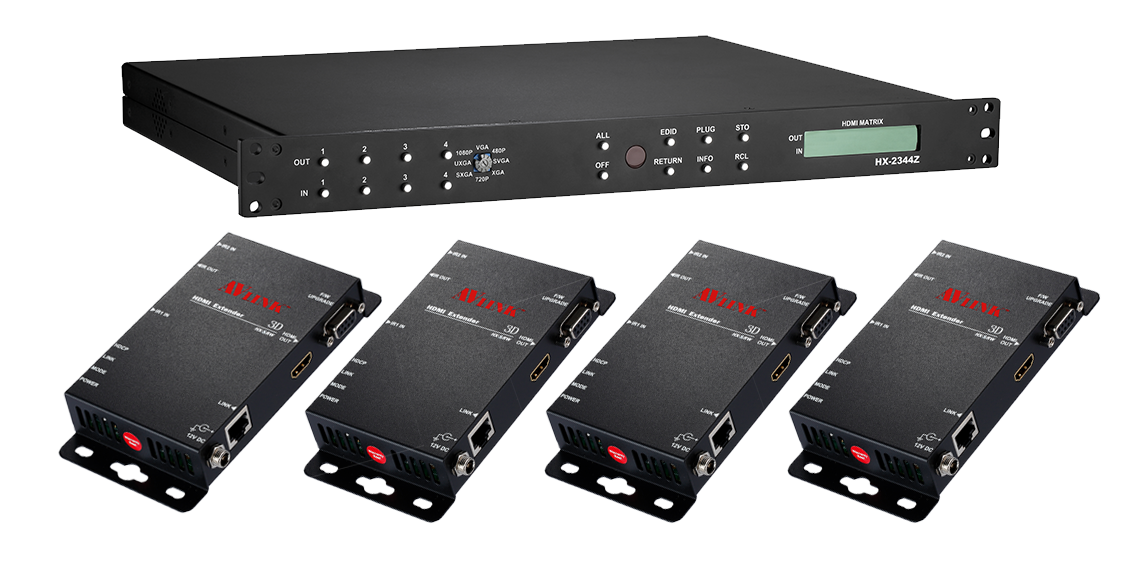

AVLinkHX-2344Z Set
HX-2344Z Set
MaitreView 4KLite
AVLinkMaitreView 4KLite
HX-SRW
RM440.00
RM440.00

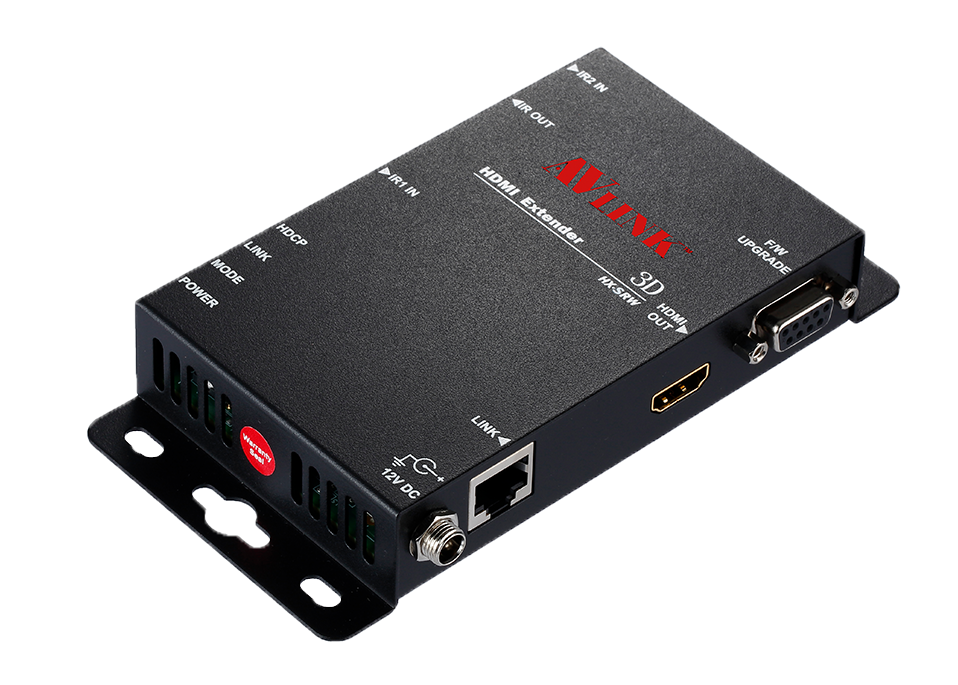

  • The HX-SRW is a compact HDBaseT receiver that pairs with AVLink's HX-series HDBaseT matrix switchers, extending a single HDMI output up to 70 metres over one Cat.5e/6 cable while keeping full IR control at the display end.
  • Up to 70m HDBaseT ExtensionDelivers HDMI signal from a compatible matrix switcher output over a single Cat.5e/6 cable, with no separate power run needed at the source end.
  • 4K & HDCP CompliantSupports 4K resolution with full HDCP content-protection compliance and 3D pass-through.
  • Full-Band IR Pass-ThroughPasses IR remote signals back to the source so you can control equipment from the display room.
  • Secure Locking Power ConnectorA locking DC12V connector keeps the power supply firmly seated in permanent installations.
  • Purpose-Built CompatibilityMatched to work as the remote unit for AVLink's HX-2444, HX-2488 and HX-341616 HDBaseT matrix switchers.
  • Simple Single-Cable SetupInstalls with just one Cat.5 cable between switcher and display, keeping cable runs clean.
  • Video/HDMI
    • Resolution Support: up to 4K
    • 3D Content Pass-Through
    • HDCP Compliant
  • Connectivity
    • Input: HDBaseT (RJ-45)
    • Output: HDMI
    • Cable Distance: up to 70m over a single Cat.5e/6 cable
    • Designed as the remote/receiver unit for AVLink HX-2444, HX-2488 and HX-341616 HDBaseT matrix switchers
  • Control
    • IR Control: full frequency band pass-through
  • Power
    • Power Input: DC12V, locking connector
  • Installation
    • Single Cat.5 cable installation
  • What's in the Box
    • HX-SRW receiver unit
    • DC12V power adapter (locking connector)
    • Quick installation guide
  • Note
    • Sold as a standalone receiver unit — designed to pair with the HDBaseT output of a compatible AVLink HX-2444, HX-2488 or HX-341616 matrix switcher (sold separately)
    •
