4K HDMI Switcher HRM-2518

RM1,350.00
RM1,350.00

This 4K HDMI switcher offers 8 inputs and 1 output, controllable via RS232, supporting 4K@30Hz/60Hz and 1080P@60Hz. Higher-voltage DC 12V power reduces transmission loss, with manual push button and remote control support. Made in Taiwan.
Total: MYR 1,350.00
SKU: SW002
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
AVLink4K HDMI Switcher HRM-2514

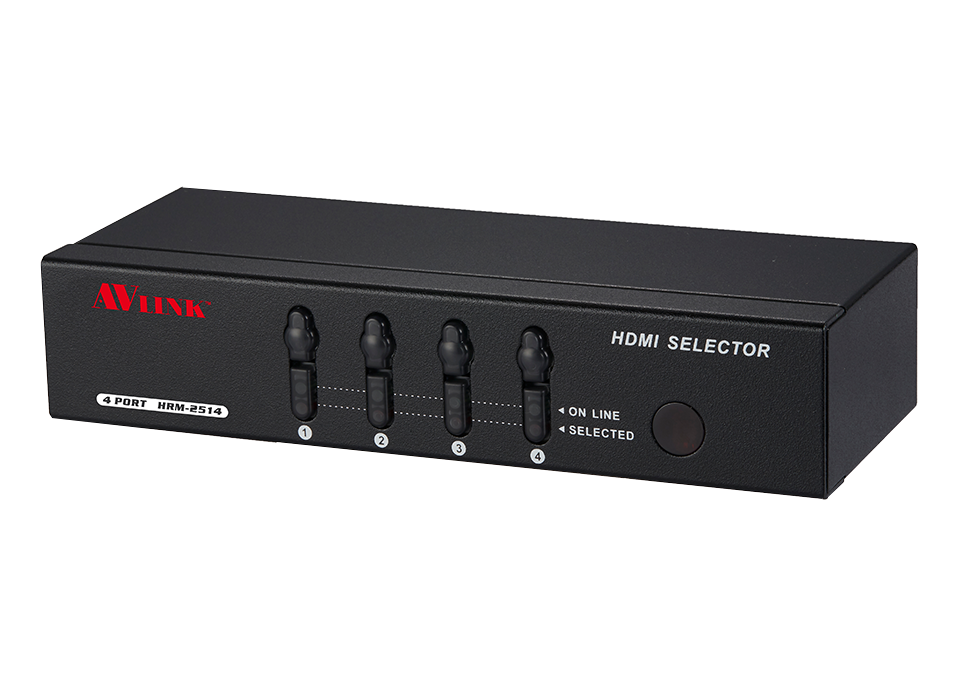

4K HDMI Switcher HRM-2514
4K HDMI Matrix Switcher HX-1522W
AVLink4K HDMI Matrix Switcher HX-1522W
4K HDMI Switcher HRM-2518
RM1,350.00
RM1,350.00
  • An 8-input HDMI switcher that puts eight 4K sources at your fingertips and routes any one of them to a single display — built for AV racks and control rooms that need reliable source switching with auto-detection and full 4K UHD/DCI support.
  • 8-Input HDMI SwitchingConnect up to eight HDMI sources and switch any one through to the single display output.
  • True 4K UHD/DCI SupportPasses 4K (3840x2160) and DCI (4096x2160) video at up to 60Hz in full 4:4:4 chroma.
  • HDCP2.2 / 1.4 Compliant with HDRWorks with HDCP-protected 4K sources and passes through HDR content.
  • Auto-Skip Input DetectionAutomatically skips powered-off or disconnected inputs when switching, so you never land on a blank source.
  • Hot-Swappable ConnectivityConnect or disconnect source devices while the unit is powered, with no reboot required.
  • RS-232 & IR Remote ControlControl from the included remote or integrate with automation systems over RS-232.
  • Rack-Ready Metal ChassisDurable all-metal housing sized to fit standard AV equipment racks.
  • Video/HDMI
    • HDMI Inputs: 8x Type-A Female
    • HDMI Output: 1x Type-A Female
    • Max Resolution: UHD (3840 x 2160) / DCI (4096 x 2160) @ 60Hz (4:4:4)
    • Max Pixel Clock: 600 MHz
    • HDCP2.2 / HDCP1.4 Compliant, HDR Support
    • HDMI2.0 / HDMI1.4 Compliant
  • Control
    • RS-232: DB-9 female connector
    • IR: Remote controller included
    • Hot-swappable inputs
    • Auto-skip for powered-off or disconnected inputs
  • General/Physical
    • Housing: Metal
    • Dimensions: 342 x 104 x 45 mm
    • Weight: 1,210 g
  • Power
    • Power Supply: DC 12V / 1.25A (minimum)
  • What's in the Box
    • HRM-2518 switcher unit
    • DC 12V/1.25A power adapter
    • Remote controller
    • RS-232 cable (1.8m, DB-9 Male to Female)
    • User manual

    • Download User Manual
