  5. 4K HDMI Switcher HRM-2514
By AVLink

4K HDMI Switcher HRM-2514

RM850.00
RM850.00

This 4K HDMI switcher offers 4 inputs and 1 output, controllable via RS232, supporting 4K@30Hz/60Hz and 1080P@60Hz. Higher-voltage DC 12V power reduces transmission loss, with manual push button and remote control support. Made in Taiwan.
Total: MYR 850.00
SKU: SW001
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

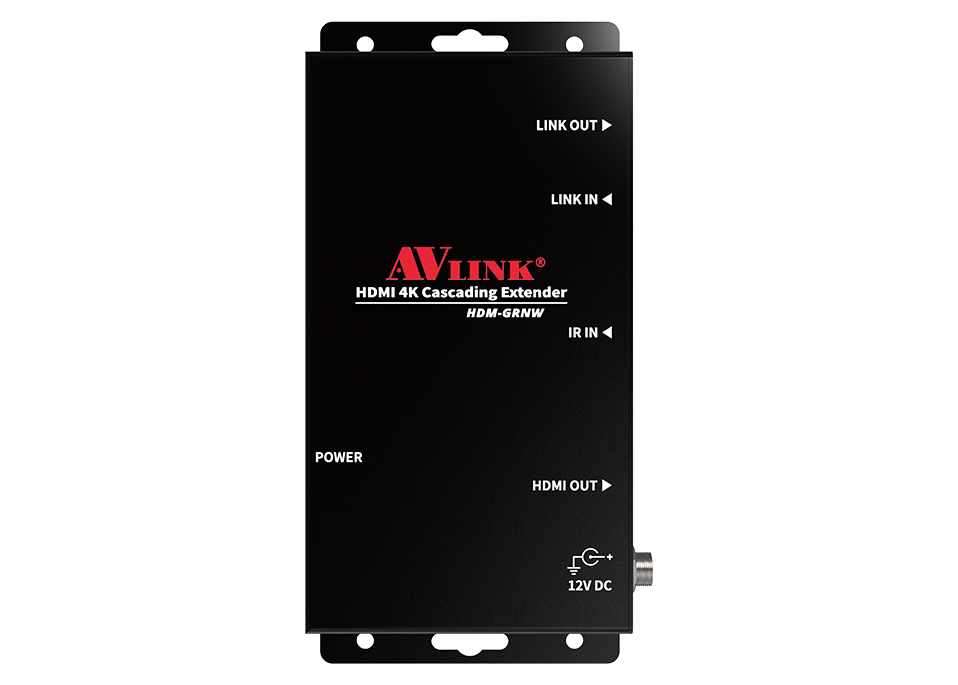

AVLinkHDM-GENW
HDM-GENW
4K HDMI Switcher HRM-2518
AVLink4K HDMI Switcher HRM-2518
4K HDMI Switcher HRM-2514
RM850.00
RM850.00
  • A 4-input HDMI switcher that lets you select from four 4K sources at the push of a button — a simple, reliable way to add source switching to a home theatre, meeting room or AV rack without a full matrix system.
  • 4-Input HDMI SwitchingConnect up to four HDMI sources and switch any one through to the single display output via the front selector, remote or RS-232.
  • True 4K @ 60Hz SupportPasses 4K x 2K video at up to 60Hz in full 4:4:4 chroma for crisp, true-to-source picture quality.
  • HDCP2.2 / 1.4 Compliant with HDRWorks with HDCP-protected 4K sources and passes through HDR content.
  • Auto-Bypass DetectionAutomatically bypasses powered-off or disconnected inputs when switching, so you never land on a blank source.
  • Hot-Swappable ConnectivityConnect or disconnect source devices while the unit is powered, with no reboot required.
  • RS-232 & IR Remote ControlControl from the included remote or integrate with automation systems over RS-232.
  • Compact Metal ChassisDurable all-metal housing sized to sit neatly on a desk, shelf or in a rack.
  • Video/HDMI
    • HDMI Inputs: 4x Type-A Female
    • HDMI Output: 1x Type-A Female
    • Max Resolution: 4K x 2K @ 60Hz (4:4:4)
    • Max Pixel Clock: 600 MHz
    • HDCP2.2 / HDCP1.4 Compliant, HDR Support
    • HDMI2.0 / HDMI1.4 Compliant
  • Control
    • Input Selection: 4-way selector switch
    • RS-232: DB-9 female connector
    • IR: Remote controller included
    • Hot-swappable inputs
    • Auto-bypass for powered-off or disconnected inputs
  • General/Physical
    • Housing: Metal
    • Dimensions: 200 x 75 x 45 mm
    • Weight: 600 g
  • Power
    • Power Supply: DC 12V / 1.25A
  • What's in the Box
    • HRM-2514 switcher unit
    • DC 12V/1.25A power adapter
    • Remote controller
    • RS-232 cable (1.8m, DB-9 Male to Female)
    • User manual

    • Download User Manual
