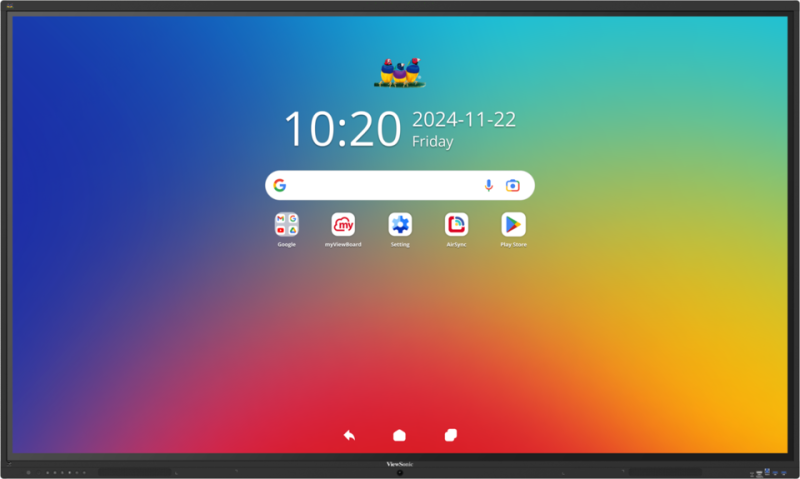

ViewBoard IFP8641-1-1C

Enquire for price

EDLA-certified 86-inch ViewBoard interactive display with built-in motion sensor and an 8-microphone array for clear voice pickup.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "ViewBoard IFP8641-1-1C".
Total: MYR 0.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
ViewSonicViewBoard IFP8635-1-1C
ViewBoard IFP8635-1-1C
IFP8651
ViewSonicIFP8651
ViewBoard IFP8641-1-1C
Enquire for price
  • The ViewBoard IFP8641-1-1C is an EDLA-certified 86" 4K interactive display with a motion sensor and 8-microphone array — built to run full hybrid meetings and lessons straight from the panel, with no extra hardware required.
  • EDLA-Certified Android 16Runs Google's EDLA-certified Android build with native access to Google Workspace and pre-loaded collaboration apps.
  • 64-Point IR TouchUltra Fine Touch Technology recognizes up to 64 simultaneous touch points with palm rejection.
  • 8-Microphone Beamforming ArrayBuilt-in far-field microphones pick up voices clearly across the room for video calls without an external speakerphone.
  • Motion-Sensing StandbyDetects room occupancy to wake the display automatically and sleep it when the room is empty, saving energy.
  • 100W USB-C One-Cable ConnectA single USB-C cable carries video, data, and up to 100W of power delivery to charge a connected laptop.
  • Upgradeable OPS SlotAdd an optional slot-in PC module to run a full desktop OS without external hardware.
  • Energy Star & EPEAT Silver CertifiedMeets recognized efficiency and environmental standards for institutional deployment.
  • Display
    • Screen Size: 86" diagonal
    • Panel: TFT LCD with DLED backlight
    • Native Resolution: UHD 3840 x 2160 (16:9)
    • Brightness: 400 nits (typical)
    • Contrast Ratio: 5,000:1 (max, DCR enabled)
    • Response Time: 6.5ms
    • Viewing Angle: 178° (H/V)
    • Surface: 9H hardness, anti-glare coating
  • Touch
    • Technology: Ultra Fine Touch (IR Recognition)
    • Touch Points: Up to 64 points with palm rejection
    • Touch Resolution: 32767 x 32767
  • OS & Compute
    • OS: EDLA-Certified Android 16
    • Processor: Rockchip RK3576, Octa-core
    • Memory: 8GB RAM
    • Storage: 128GB
    • Expansion: 1x OPS slot for optional slot-in PC module
  • Connectivity
    • HDMI: 3 ports (1 front, 2 rear with ARC)
    • DisplayPort: 1
    • USB-C: 2 (USB 3.2 Gen 1, DP 1.2, up to 100W power delivery)
    • USB-A: 5 ports (USB 3.2 Gen 1 / USB 2.0)
    • VGA: 1
    • LAN: 2x RJ45
    • Audio I/O: Line in/out, SPDIF optical
    • Card Slot: Micro SD
  • Audio
    • Speakers: 20W x 2 front soundbar + 15W subwoofer
    • Microphone: Built-in 8-array beamforming microphone
  • Physical & Power
    • Dimensions: 1956.7 x 1170.5 x 87.4mm (77.04" x 46.08" x 3.44")
    • Net Weight: 58.2kg (128.31 lb)
    • VESA Mount: 800 x 600mm
    • Power: 100-240VAC ±10%, 93.99W (on) / <0.5W (standby)
    • Certifications: Energy Star Certified (8.0 rating), EPEAT Silver Certified
  • What's in the Box
    • ViewBoard IFP8641-1-1C display unit
    • Remote control with battery
    • Power cord
    • USB touch cable
    • HDMI cable
    • Touch pen(s)
    • RS-232 adapter
    • Wall-mount clamps and screws
    • Quick start guide & compliance statement
  • Note
    • Exact cable lengths and accessory counts may vary by region — contact us to confirm before installation.
