ViewBoard IFP8635-1-1C

Enquire for price

EDLA-certified 86-inch ViewBoard interactive display with an energy-saving motion sensor for classrooms and meeting rooms.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "ViewBoard IFP8635-1-1C".
Total: MYR 0.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
ViewSonicIFP7551
IFP7551

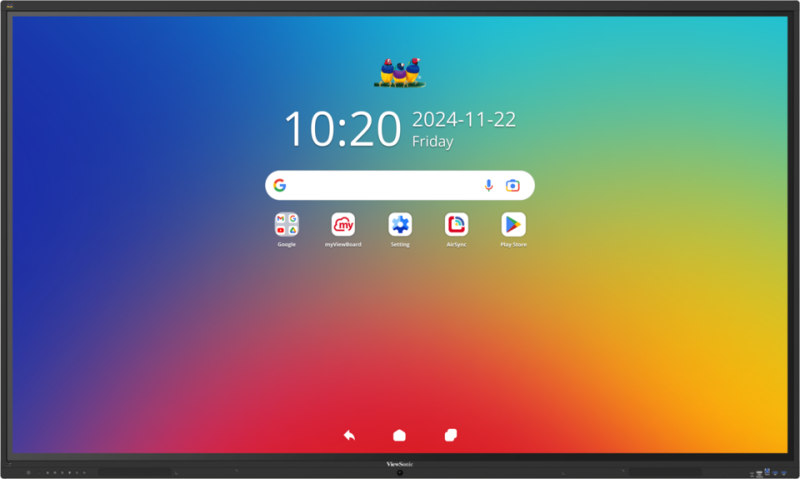

ViewBoard IFP8641-1-1C
ViewSonicViewBoard IFP8641-1-1C
ViewBoard IFP8635-1-1C
Enquire for price

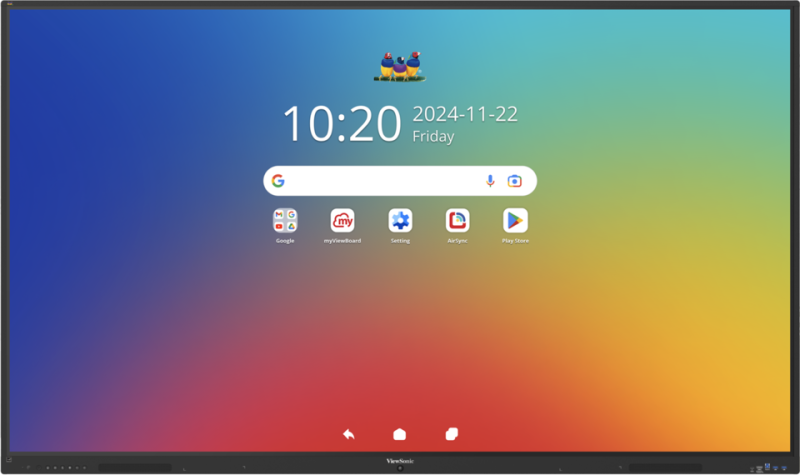

  • The ViewBoard IFP8635-1-1C is an EDLA-certified 86" 4K interactive display built for classrooms and meeting rooms — pairing a fast IR-touch panel with an energy-saving motion sensor, one-cable USB-C connectivity, and an upgradeable OPS slot for a fully self-contained collaboration hub.
  • EDLA-Certified Android 16Runs Google's EDLA-certified Android build with native access to Google Workspace and pre-loaded classroom and collaboration apps.
  • 64-Point IR TouchUltra Fine Touch Technology recognizes up to 64 simultaneous touch points with palm rejection for natural writing and multi-user collaboration.
  • Energy-Saving Motion SensorAutomatically wakes and sleeps the display based on room occupancy to cut standby power use.
  • One-Cable USB-CFront USB-C delivers video, data, and up to 65W power delivery from a single cable for laptops.
  • Upgradeable OPS SlotAdd an optional slot-in PC module to run a full desktop OS without external hardware.
  • Built-In Soundbar20W x 2 front-facing speakers project clear audio directly toward the room.
  • Energy Star & EPEAT Silver CertifiedMeets recognized efficiency and environmental standards for institutional deployment.
  • Display
    • Screen Size: 86" diagonal
    • Panel: TFT LCD with DLED backlight
    • Native Resolution: UHD 3840 x 2160 (16:9)
    • Brightness: 350 nits (typical)
    • Contrast Ratio: 5,000:1 (max, DCR enabled)
    • Response Time: 6.5ms
    • Viewing Angle: 178° (H/V)
    • Surface: 9H hardness, anti-glare coating
    • Backlight Life: 50,000 hours
  • Touch
    • Technology: Ultra Fine Touch (IR Recognition)
    • Touch Points: Up to 64 points with palm rejection
    • Touch Resolution: 32767 x 32767
  • OS & Compute
    • OS: EDLA-Certified Android 16
    • Processor: Octa-core CPU
    • Memory: 8GB RAM
    • Storage: 64GB / 128GB (configuration dependent)
    • Expansion: 1x OPS slot for optional slot-in PC module
  • Connectivity
    • HDMI: 3 ports (1 front HDMI 2.1 4K@60Hz, 2 rear incl. ARC)
    • DisplayPort: 1 (DP 1.2)
    • USB-C: 2 (front 65W PD, rear 15W PD)
    • USB-A: 5 (mix of USB 3.2 Gen 1 / USB 2.0)
    • USB-B: 2 (USB 3.2 Gen 1)
    • VGA: 1
    • LAN: 2x RJ45
    • Control: RS-232
    • Audio I/O: Line in/out, SPDIF optical
    • Card Slot: SD / MicroSD
  • Audio
    • Speakers: 20W x 2 front-facing soundbar
  • Physical & Power
    • Dimensions: 1956.7 x 1159.6 x 98.3mm (77.04" x 45.65" x 3.87")
    • Net Weight: 49.7kg (109.57 lb)
    • VESA Mount: 800 x 600mm
    • Power: 100-240VAC ±10%, 93.99W (on) / <0.5W (standby)
    • Certifications: Energy Star Certified, EPEAT Silver Certified
  • What's in the Box
    • ViewBoard IFP8635-1-1C display unit
    • Remote control with battery
    • Power cord
    • USB touch cable
    • HDMI cable
    • Touch pen(s)
    • RS-232 adapter
    • Wall-mount clamps and screws
    • Quick start guide & compliance statement
  • Note
    • Exact cable lengths and accessory counts may vary by region — contact us to confirm before installation.
