ViewBoard IFP110

Enquire for price

ViewBoard® 110-inch 4K interactive display, engineered for the largest classrooms and auditoriums.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "ViewBoard IFP110".
Total: MYR 0.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

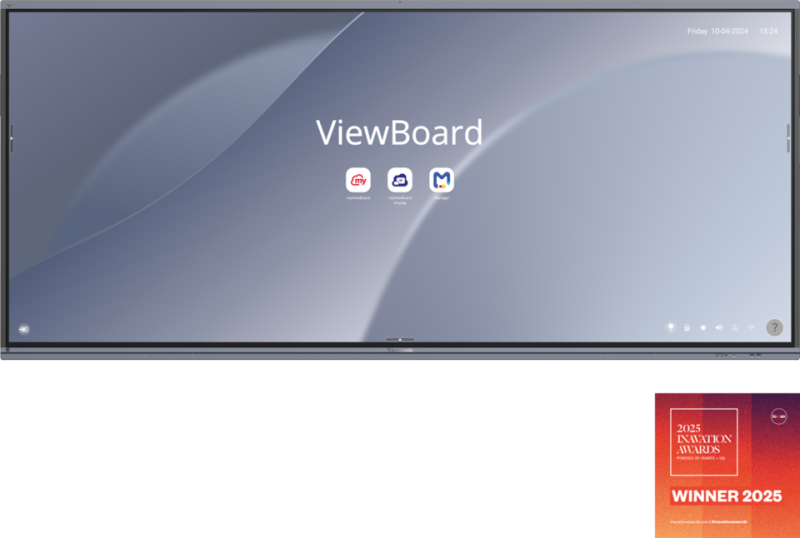

ViewSonicViewBoard IFP105UW
ViewBoard IFP105UW
ViewBoard IFP5541-1-1C
ViewSonicViewBoard IFP5541-1-1C

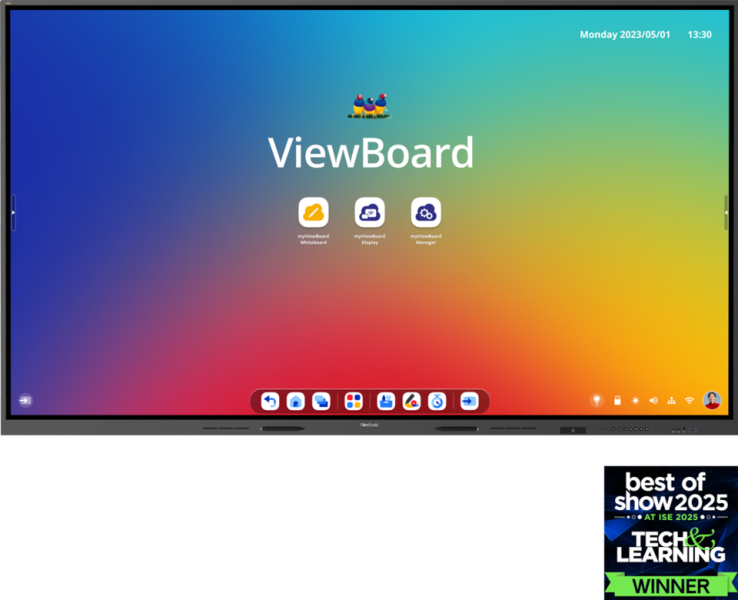

ViewBoard IFP110
Enquire for price
  • A 110" native 4K interactive display built for large lecture halls, auditoriums, and boardrooms — the IFP110 pairs true 3840 x 2160 resolution with 40-point multi-touch and a built-in microphone array, so big rooms get the same natural touch and audio experience as a standard-size ViewBoard.
  • 110" Native 4K UHD Display3840 x 2160 resolution at 500 nits keeps text and video sharp and bright even at auditorium scale.
  • 40-Point Multi-TouchInfrared touch technology supports up to 40 simultaneous touch points on Windows for natural, responsive annotation across the huge canvas.
  • Triple USB-C Connectivity with 100W Power DeliveryTwo rear and one front USB-C port carry display, touch and up to 100W of laptop charging over a single cable.
  • Built-In 8-Array MicrophoneAn integrated microphone array picks up voices clearly from across a large room for hybrid meetings and lectures.
  • NFC & SSO Sign-InViewSonic Launcher supports NFC card tap and single sign-on so users can get started quickly on shared devices.
  • ViewBoard Cast Wireless PresentationShare and annotate content wirelessly from laptops, phones, and tablets with touch-back feedback.
  • Optional Windows Slot-In PCAn OPS slot accepts an optional Windows slot-in PC module for a full standalone Windows experience.
  • Display
    • Screen Size: 110" diagonal
    • Native Resolution: 3840 x 2160 (UHD 4K)
    • Aspect Ratio: 16:9
    • Brightness: 500 cd/m² (typical)
    • Contrast Ratio: 1,200:1 (typical) / 5,000:1 (DCR)
    • Viewing Angles: 178° horizontal and vertical
    • Panel Surface: 7H hardness, anti-glare coating
    • Response Time: 8ms
    • Backlight Life: 50,000 hours
  • Touch
    • Technology: Infrared (IR) recognition
    • Touch Points: 40 (Windows) / 20 (Android)
    • Touch Resolution: 32767 x 32767
  • Connectivity
    • HDMI: 3x in (1 front HDMI 2.0, 2 rear – 1x HDMI 2.0, 1x HDMI 2.1 with ARC)
    • USB-C: 3x (2 rear PD100W/DP1.2/Touch, 1 front PD65W/DP1.2/Touch)
    • USB-A: 5x (1x USB 2.0, 4x USB 3.0)
    • USB-B: 3x
    • DisplayPort: 1x
    • VGA: 1x
    • RS232: 1x
    • Ethernet: 2x RJ45 (in/out)
    • Audio I/O: 1x 3.5mm in, 1x earphone out, 1x SPDIF
    • OPS PC Slot: 1x
    • Wireless: WiFi module slot; NFC reader built-in
  • Audio
    • Speakers: 15W x2 + 20W subwoofer
    • Microphone: Built-in 8-array microphone
  • OS/Compute
    • Operating System: Android 13
    • CPU: Octa-core (4x Cortex-A73 + 4x Cortex-A53)
    • Memory: 8GB LPDDR
    • Storage: 128GB eMMC
  • Physical/Power
    • Dimensions (W x H x D): 2507.1 x 1474.8 x 96.8 mm
    • Net Weight: 120.2 kg
    • VESA Mount: 1000 x 800mm
    • Power Input: 100-240 VAC ±10%
    • Power Consumption: 175.46W typical / ≤0.5W standby
  • What's in the Box
    • IFP110 display unit
    • Remote control with batteries
    • 3m power cable
    • 3m HDMI cable
    • 3m USB 2.0 touch cable
    • RS232 adapter
    • 2x passive styluses
    • 1x retractable stylus
    • 5x mounting clamps
    • Camera mounting plate
    • 8x mounting screws
    • Quick Start Guide and compliance statement

    • Download Brochure (PDF)

    Download User Manual
