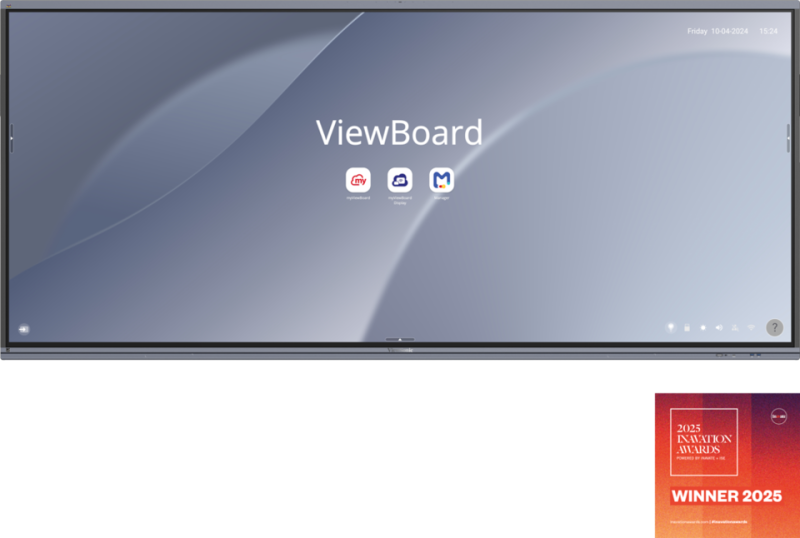

ViewBoard IFP105UW

Enquire for price

ViewBoard® 105-inch 5K interactive display for large boardrooms and lecture halls, delivering ultra-sharp detail across an expansive screen.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "ViewBoard IFP105UW".
Total: MYR 0.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
ViewBoard IFP110
ViewSonicViewBoard IFP110
ViewBoard IFP105UW
Enquire for price
  • A 105" 21:9 ultrawide interactive display purpose-built for Microsoft Teams Rooms and Front Row layouts — the IFP105UW pairs 5K resolution with 40-point multi-touch, a powerful integrated soundbar and microphone array, and fast USB-C connectivity for next-generation hybrid meetings.
  • 105" 21:9 Ultrawide 5K Display5120 x 2160 resolution delivers extra horizontal screen space so video participants and shared content can be viewed side by side at true-to-life clarity.
  • 40-Point Multi-Touch with Palm RejectionInfrared touch supports up to 40 simultaneous touch points with dual-tip stylus and finger/palm recognition for natural annotation and whiteboarding.
  • Built-In 47W Soundbar & 8-Mic ArrayIntegrated 16W x2 speakers plus a 15W subwoofer and an 8-channel beamforming microphone array with full-duplex echo cancellation deliver clear, room-filling audio for calls.
  • USB-C with 100W Power DeliveryConnect and charge a laptop over a single USB-C cable for fast, clutter-free presenting.
  • vCast Wireless Sharing & AnnotationShare and annotate content wirelessly from laptops, phones, and tablets without extra hardware.
  • ViewBoard OS with Octa-Core ProcessingAn octa-core processor with 8GB RAM and 128GB storage runs apps and annotation tools smoothly without an attached PC.
  • Centralized Fleet ManagementViewSonic Manager™ lets IT teams monitor, update, and manage multiple displays remotely across rooms and buildings.
  • Display
    • Screen Size: 105" diagonal
    • Native Resolution: 5120 x 2160 (5K)
    • Aspect Ratio: 21:9
    • Brightness: 400 cd/m²
    • Contrast Ratio: 5,000:1 (dynamic) / 4,000:1 (static)
    • Viewing Angles: 178° horizontal and vertical
    • Panel Surface: Anti-glare 9H tempered glass
    • Backlight Life: 50,000 hours
    • Response Time: 6.5ms (GTG)
    • Refresh Rate: 60Hz
  • Touch
    • Technology: Infrared
    • Touch Points: 40 (Windows) / 20 (Android)
    • Touch Latency: ≤5ms
    • Tip Detection: Dual tips (2mm & 8mm), finger (10-15mm), palm (30mm)
    • Supported OS: Windows 7/8/10/11, macOS 10.8+, Linux kernel 3.5+
  • Connectivity
    • HDMI: 3x HDMI 2.0 in, 1x HDMI 2.1 in, 1x HDMI out
    • DisplayPort: 1x
    • USB: 6x USB 3.0, 1x USB 2.0 Type-A, 3x USB 2.0 Type-B
    • USB-C: 2x (up to 60W Power Delivery)
    • Ethernet: 2x RJ45
    • Control: 1x RS232
    • Audio I/O: 1x S/PDIF, 1x 3.5mm Line In, 1x 3.5mm Mic In
    • Wireless: Bluetooth 5.2; Wi-Fi via optional VB-WIFI-004 adapter
  • Audio
    • Speakers: 16W x2 + 15W subwoofer (47W total)
    • Microphone: 8-channel beamforming array with full-duplex echo cancellation
  • OS/Compute
    • Operating System: ViewBoard OS
    • CPU: Octa-core (4x Cortex-A76 + 4x Cortex-A55)
    • GPU: Mali-G610
    • Memory: 8GB LPDDR
    • Storage: 128GB eMMC 5.0
  • Physical/Power
    • Dimensions (W x H x D): 2507.2 x 1130.1 x 103.2 mm
    • Net Weight: 91.4 kg
    • VESA Mount: 1000 x 400mm, M8
    • Power Input: 100-240 VAC
    • Power Consumption: 275W typical / <0.5W standby
    • Operating Temperature: 0-40°C
  • What's in the Box
    • IFP105UW display unit
    • 3m power cord
    • 1.8m USB-C cable
    • 3m USB touch cable
    • 3m HDMI cable
    • 2x passive styluses
    • Remote control with AAA batteries
    • RS232 adapter
    • Camera mounting plate with 8 screws (4 camera, 4 wall mount)
    • 5x mounting clamps
    • Quick Start Guide and compliance statement
