  5. Epson EB-PU2216B WUXGA Laser Installation Projector (16,000 Lumens)
By Epson

Epson EB-PU2216B WUXGA Laser Installation Projector (16,000 Lumens)

RM130,000.00
RM130,000.00

This laser projector's lens shift feature allows the display to be moved without physically repositioning the unit, maintaining image quality without relying on digital keystone correction. Delivering up to 16,000 lumens with a wide color gamut and strong color accuracy, it suits exhibitions, events, and other professional environments needing flexible, high-brightness installation.
Total: MYR 130,000.00
Reference Number:Epson017
SKU: E0038
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
EpsonEpson EB-PQ2213B 4K Crystal Motion Laser Installation Projector (13,000 Lumens)
EB-PQ2213B front view

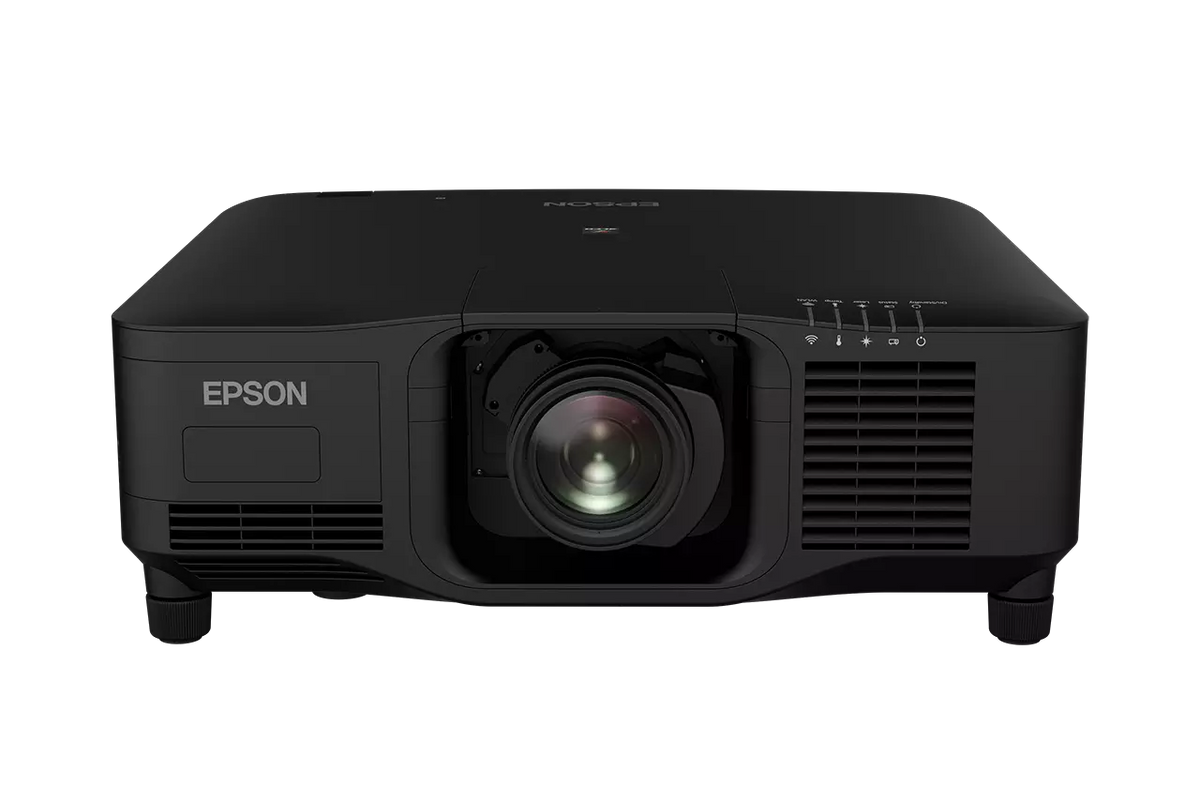

EB-PQ2216B front view
EpsonEpson EB-PQ2216B 4K Crystal Motion Laser Installation Projector (16,000 Lumens)
EB-PU2216B
RM130,000.00
RM130,000.00
  • A compact, large-venue installation laser projector for auditoriums, arenas, houses of worship and broadcast environments — the EB-PU2216B delivers 16,000 lumens with an interchangeable lens system (lens sold separately), so it can be matched to almost any throw distance and stacked or blended for bigger, brighter images.
  • Compact, Lightweight BodyAt approx. 24.2 kg, it's easier to rig, transport and store than comparable high-brightness projectors.
  • 4K Enhancement with HDRNative WUXGA resolution upscaled via 4K Enhancement Technology, with HDR10 and HLG support.
  • Laser Light SourceUp to 20,000 hours (Normal/Quiet) or 30,000 hours (Extended) of near-maintenance-free operation — no lamp replacements.
  • IP5X Dust ResistanceA hermetically sealed optical engine and laser light source unit keeps performance reliable in demanding installation environments.
  • Interchangeable Lens SystemLens sold separately — choose from Epson's ELPL lens range with motorised zoom, focus and lens shift (±60% V / ±18% H), plus 10 lens-position memories.
  • PC-Free Stacking & Edge BlendingStack two units to double brightness, or blend multiple projectors for seamless large-scale images, all without an external PC.
  • Extensive ConnectivityHDBaseT, 3G-SDI, dual HDMI/DVI-D digital inputs and optional wireless LAN for flexible integration with AV control systems.
  • Technology
    • 3-chip 3LCD projection system
    • LCD Panel Size: 1.0" (poly-silicon TFT active matrix)
  • Image
    • Native Resolution: WUXGA (1920 x 1200)
    • Aspect Ratio: 16:10
    • Brightness (Normal): 16,000 lm
    • Brightness (Quiet/Extended): 11,200 lm
    • Contrast Ratio: Over 5,000,000:1
    • Light Source: Laser Diode
    • Light Source Life: Up to 20,000 hrs (Normal/Quiet) / 30,000 hrs (Extended)
    • 4K Enhancement Technology with HDR10 & HLG support
  • Projection Lens
    • Lens Type: Interchangeable – sold separately (standard lens ELPLM15 available)
    • Standard Lens (ELPLM15) Throw Ratio: 1.57–2.56:1
    • Throw Ratio Range (full optional lens lineup): 0.35–7.41:1
    • Zoom Ratio: Up to 1.6x (Motorised, lens-dependent)
    • Lens Shift: Motorised – Vertical ±60%, Horizontal ±18%
    • Keystone Correction: Manual Vertical/Horizontal + Curved Surface & Corner Wall Correction
    • Screen Size: Up to 1,000″ (lens dependent)
  • Connectivity
    • Digital Input: HDMI x1 (HDCP 2.3), DVI-D x1 (HDCP 1.4)
    • HDBaseT: Yes (RJ-45, up to 100m)
    • SDI Input/Output: Yes (BNC)
    • Computer Input: D-Sub 15-pin x1
    • USB Type-A: x1 (5V/2A), Service USB Type-B x1
    • Control I/O: RS-232C
    • Network: LAN (100/10 Base-T)
    • Wireless LAN: Optional (ELPAP11, 802.11a/b/g/n)
    • Audio Output: Stereo Mini Jack
  • General
    • Dimensions (W x H x D): 586 x 185 x 492 mm (excl. raised section)
    • Weight: Approx. 24.2 kg (excl. lens)
    • Power Consumption (220–240V): 1,083W (Normal) / 773W (Quiet)
    • Standby Power: 2.0W (Communication On) / 0.4W (Off)
    • Fan Noise (Normal/Quiet): 38dB(A) / 34dB(A)
    • Dust Resistance: IP5X certified, sealed optical engine & laser light source unit
    • Operating Altitude: 0–3,048 m

    • Throw distance data for this model is not yet available. Please contact us for a placement recommendation.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)

    • Download Brochure (PDF)

    Download User Manual

    ELPLL08 Long Throw Zoom Lens
    ELPLL08 Long Throw Zoom Lens
    ELPLM10 Middle Throw Zoom Lens
    ELPLM10 Middle Throw Zoom Lens
    ELPLM11 Middle Throw Zoom Lens
    ELPLM11 Middle Throw Zoom Lens
    ELPLM15 Normal Lens
    ELPLM15 Normal Lens
    ELPLU03S Short Throw Zoom Lens
    ELPLU03S Short Throw Zoom Lens
    ELPLU04 Short Throw Zoom Lens
    ELPLU04 Short Throw Zoom Lens
    ELPLW06 Wide Throw Zoom Lens
    ELPLW06 Wide Throw Zoom Lens
    ELPLW08 Wide Throw Lens
    ELPLW08 Wide Throw Lens
    ELPLX02S Ultra Short-Throw Lens
    ELPLX02S Ultra Short-Throw Lens
    ELPAF46 Air Filter Set
    ELPAF46 Air Filter Set
    What is the EB-PU2216B best suited for?
    The EB-PU2216B is an installation-class projector built for auditoriums, halls, and other large-venue setups that need a professional install.
    What resolution does the EB-PU2216B project at?
    The EB-PU2216B's native resolution is 4K enhancement.
    Does the EB-PU2216B come with a projection lens included?
    No — like other models in this installation series, the EB-PU2216B uses an interchangeable lens system. The lens is chosen and purchased separately based on your throw distance and screen size, so it can be matched precisely to the venue. Let us know your room dimensions and we can help recommend the right lens.
    What warranty comes with the EB-PU2216B?
    Includes a 3-year on-site warranty, with CoverPlus extensions available in 36-month tiers. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
