  5. Epson EB-PQ2216B 4K Crystal Motion Laser Installation Projector (16,000 Lumens)
By Epson

Epson EB-PQ2216B 4K Crystal Motion Laser Installation Projector (16,000 Lumens)

RM215,000.00
RM215,000.00

The EB-PQ2216B is a high-end installation laser projector delivering up to 16,000 lumens with powered lens shift for precise, flexible placement without physical adjustment. 4K Crystal Motion Technology and a wide color gamut produce crisp, vivid images at large scale, while the dust-proof design and optional ELPEC01 camera support easy stacking and blending. Designed for auditoriums, conference centers, and other professional large-venue installations.
Total: MYR 215,000.00
Reference Number:Epson002
SKU: PQ2216B
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
EpsonEpson EB-PU2216B WUXGA Laser Installation Projector (16,000 Lumens)
EB-PU2216B
EB-PU2220B
EpsonEpson EB-PU2220B WUXGA Laser Installation Projector (20,000 Lumens)

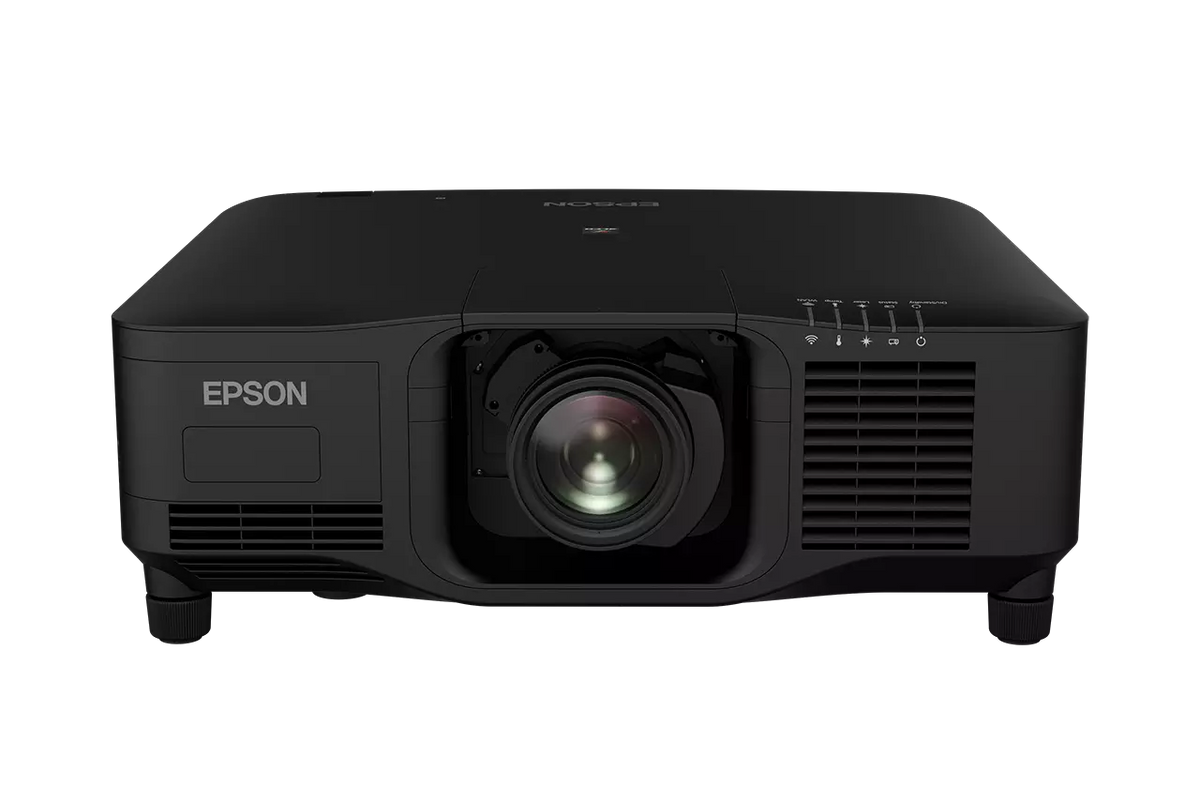

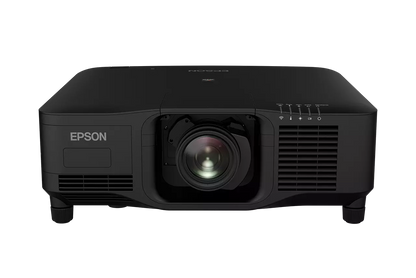

EB-PQ2216B front view
RM215,000.00
RM215,000.00
  • Built for large auditoriums, worship venues, and halls that need serious brightness without stadium-scale bulk, the EB-PQ2216B brings Epson's 4K Crystal Motion laser installation platform to mid-to-large venues.
  • 16,000 Lumens BrightnessBright enough for large auditoriums and venues with ambient light, keeping images crisp without dimming the room.
  • 4K Crystal Motion TechnologyDelivers a sharp, detailed 4K UHD (3840×2160) on-screen image via high-speed pixel-shift from a native Full HD 3LCD panel.
  • Interchangeable Lens SystemChoose from Epson's full range of powered zoom lenses — standard ELPLM15 gives a 1.52–2.47:1 throw ratio — to match any venue's throw distance precisely.
  • Laser Light Source, Up to 20,000 HoursUp to 20,000 hours in Normal mode (30,000 hours Extended), with no lamp replacements and consistent brightness over the projector's lifetime.
  • Edge Blending & Multi-ProjectionBuilt-in tiling, edge blending, and simple stacking let multiple units combine into one seamless, oversized image.
  • Powered Lens Shift, Zoom & FocusRemote-adjustable ±64% vertical / ±16% horizontal lens shift makes precise installation and calibration fast, even in hard-to-reach mounting positions.
  • Full Network & Control IntegrationRJ45, RS232C, PJLink, and optional wireless (ELPAP11) support centralised monitoring and control across multi-room AV systems.
  • 3-Year On-Site WarrantyBacked by a 3-year (36-month) on-site warranty covering manufacturing defects, with the light source covered for the same period.
  • Technology
    • RGB liquid crystal shutter projection system (3LCD)
    • LCD Lens Size: 1.04" DMLA (C2 Fine, 12-bit, OD)
  • Image
    • Native Resolution: 4K Crystal Motion (Full HD 3LCD panel with high-speed pixel-shift, on-screen 4K UHD)
    • Brightness (Colour/White, Normal): 16,000 lm
    • Light Source: Laser
  • Projection Lens
    • Throw Ratio: 1.52–2.47:1 (based on Standard Lens ELPLM15, sold separately — interchangeable lens system)
    • Lens Shift: Powered — Vertical ±64%, Horizontal ±16%
    • Zoom Ratio: 1–1.61 (Powered)
    • F-Number: 2.0–2.1
    • Focal Length: 14.8–17.7 mm
    • Zoom / Focus Type: Power

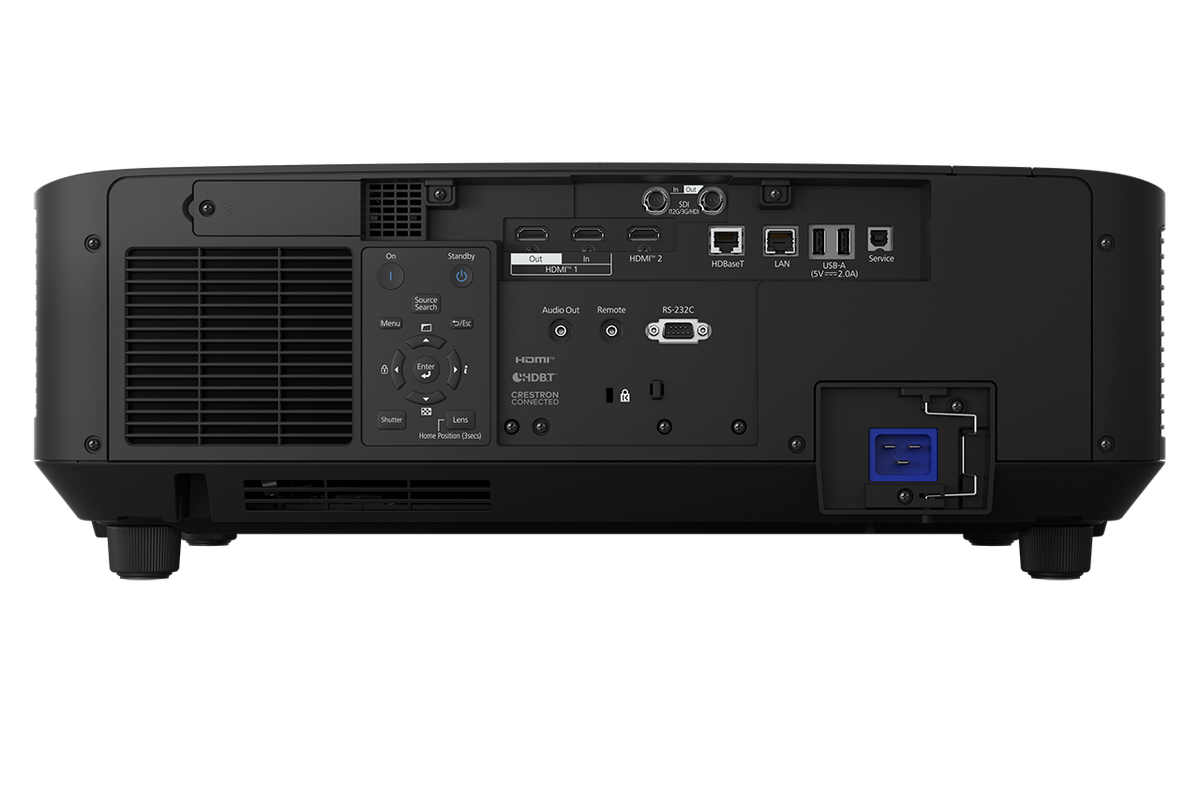

  • Connectivity
    • Digital Input: HDMI x2 (HDCP 2.3), HDBaseT x1, BNC x1
    • Digital Output: HDMI x1 (HDCP 2.3), BNC x1
    • Audio Output: Mini Stereo x1
    • Control I/O: RS232C x1
    • Wired LAN: RJ45 x1
    • USB Type A x2, USB Type B x1 (Service Port)
    • Wireless LAN: Optional (ELPAP11)
  • General
    • Dimensions (W x H x D): 586 x 185 x 492 mm
    • Weight: Approx. 28.8 kg
    • Fan Noise (Normal/Eco): 37dB / 34dB (36dB with ELPLX02 lens)
    • Power Supply: 100–240V AC ±10%, 50/60Hz

    • Throw distance data for this model is not yet available. Please contact us for a placement recommendation.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)

    • Download Brochure (PDF)

    Download User Manual

    ELPLX02S Ultra Short-Throw Lens
    ELPLX02S Ultra Short-Throw Lens
    ELPLU03S Short Throw Zoom Lens
    ELPLU03S Short Throw Zoom Lens
    ELPLU04 Short Throw Zoom Lens
    ELPLU04 Short Throw Zoom Lens
    ELPLW05 Wide Throw Zoom Lens
    ELPLW05 Wide Throw Zoom Lens
    ELPLW06 Wide Throw Zoom Lens
    ELPLW06 Wide Throw Zoom Lens
    ELPLW08 Wide Throw Lens
    ELPLW08 Wide Throw Lens
    ELPLM10 Middle Throw Zoom Lens
    ELPLM10 Middle Throw Zoom Lens
    ELPLM11 Middle Throw Zoom Lens
    ELPLM11 Middle Throw Zoom Lens
    ELPLM15 Normal Lens
    ELPLM15 Normal Lens
    ELPLL08 Long Throw Zoom Lens
    ELPLL08 Long Throw Zoom Lens
    ELPAF46 Air Filter Set
    ELPAF46 Air Filter Set
    ELPAP11 Wireless LAN Unit
    ELPAP11 Wireless LAN Unit
    ELPEC01 HBR Camera
    ELPEC01 HBR Camera
    What is the EB-PQ2216B best suited for?
    The EB-PQ2216B is an installation-class projector built for auditoriums, halls, and other large-venue setups that need a professional install.
    What resolution does the EB-PQ2216B project at?
    The EB-PQ2216B's native resolution is 4K.
    Does the EB-PQ2216B come with a projection lens included?
    No — like other models in this installation series, the EB-PQ2216B uses an interchangeable lens system. The lens is chosen and purchased separately based on your throw distance and screen size, so it can be matched precisely to the venue. Let us know your room dimensions and we can help recommend the right lens.
    What warranty comes with the EB-PQ2216B?
    Includes a 3-year on-site warranty, with CoverPlus extensions available in 36-month tiers. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
