  5. Epson EB-760W WXGA Laser Ultra Short Throw Projector
By Epson

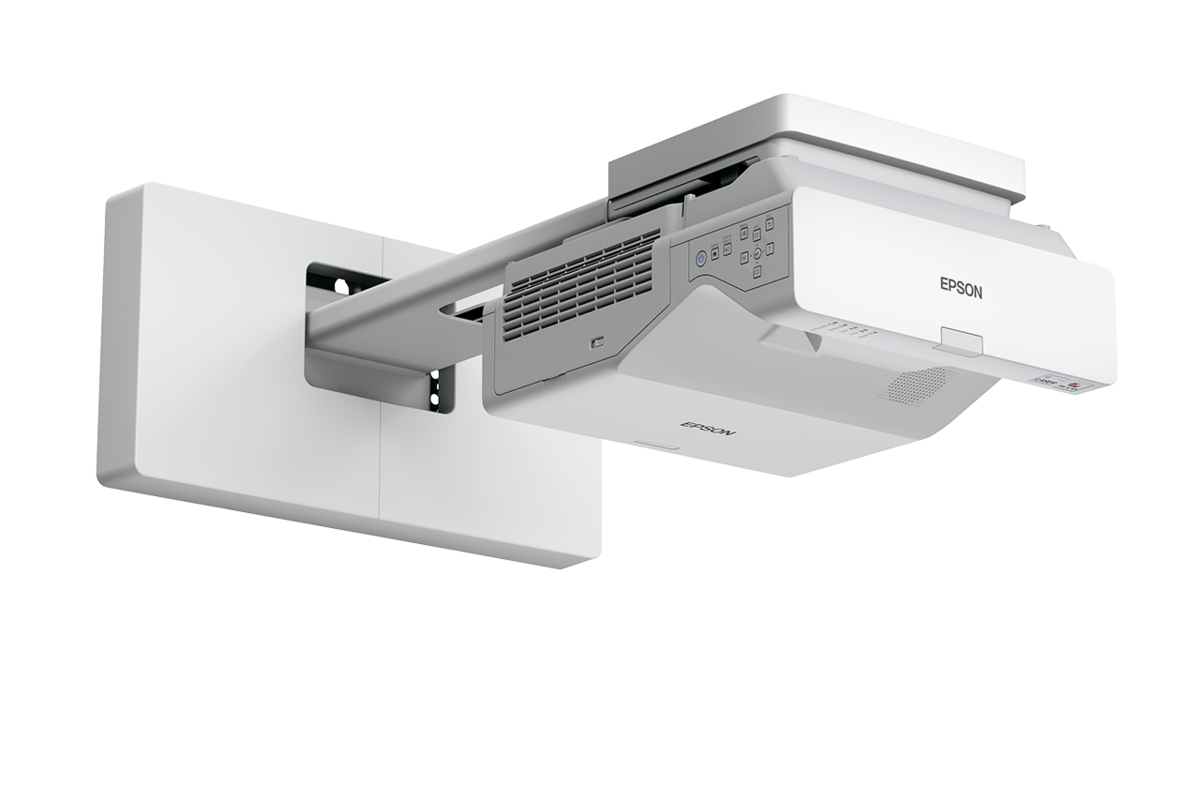

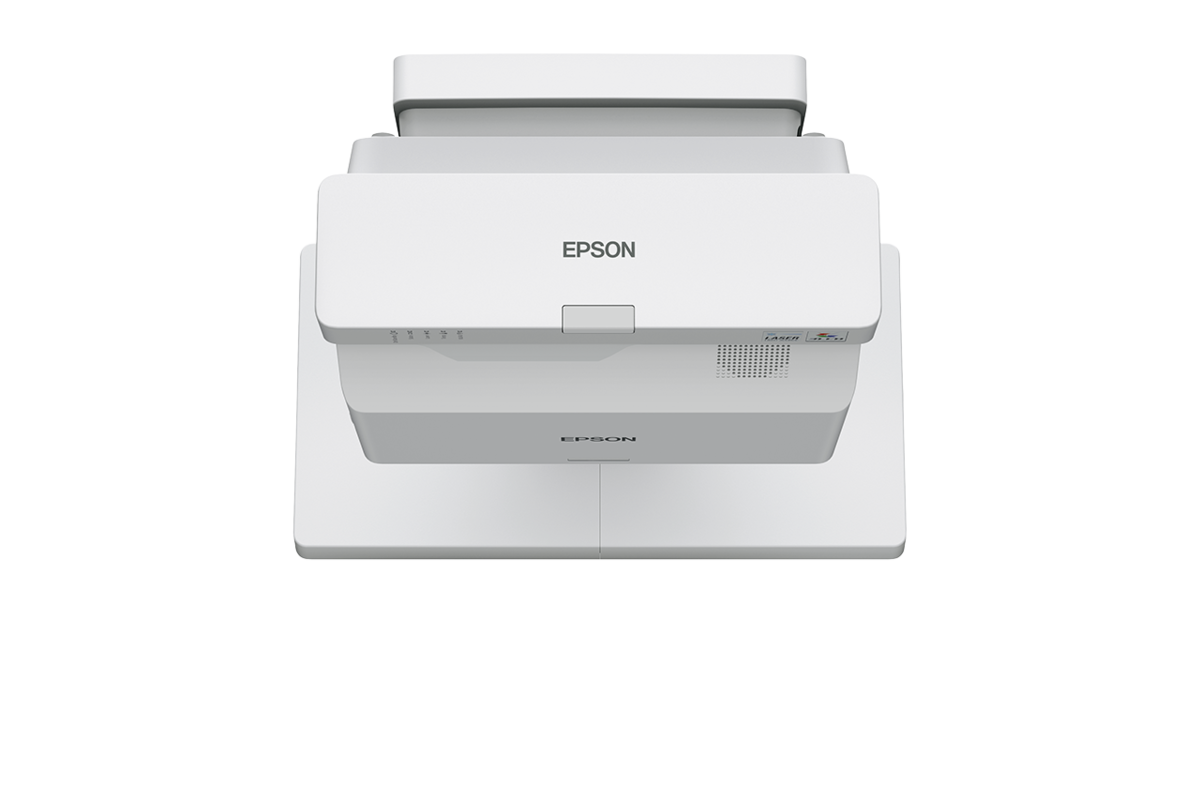

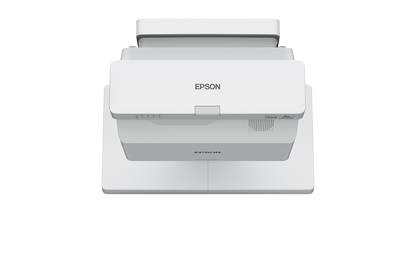

Epson EB-760W WXGA Laser Ultra Short Throw Projector

RM11,339.00
RM11,339.00

This ultra-short-throw (UST) laser projector produces clear, sharp large-screen images from a very short distance, suitable for small rooms where a longer throw distance isn't feasible. The laser light source offers longer life, better color accuracy, and faster response times than lamp-based projectors, while eliminating shadows cast by presenters walking in front of the unit.
Total: MYR 11,339.00
Reference Number:Epson026
SKU: E0028
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

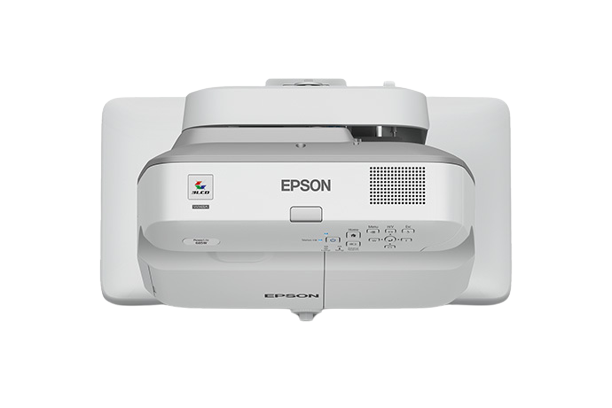

EpsonEpson EB-685W WXGA Ultra Short Throw Projector
EB-685W
EB-695Wi

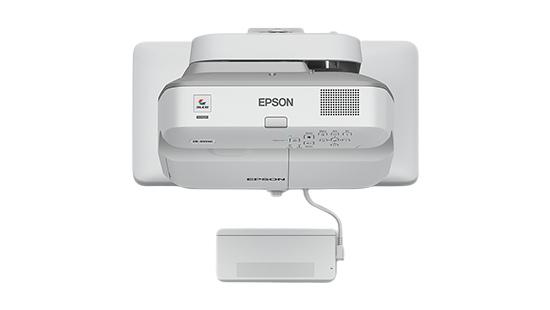

EpsonEpson EB-695Wi WXGA Interactive Ultra Short Throw Projector
EB-760W
RM11,339.00
RM11,339.00
  • A WXGA ultra-short-throw laser projector for classrooms and meeting rooms — the EB-760W sits right beneath the screen, freeing up space and eliminating the shadows and glare that come with standard-throw projectors.
  • Ultra-Short Throw PlacementProjects up to 150" from just centimetres away, keeping presenters shadow-free and freeing up floor space.
  • Laser Light SourceUp to 20,000 hours (Normal) or 30,000 hours (Eco) of virtually maintenance-free operation, with instant on/off and no lamp to replace.
  • Bright WXGA Image4,100 lumens of colour and white brightness with contrast up to 2,500,000:1 for sharp, vivid visuals.
  • Built-In Wireless & Screen MirroringDual-band Wi-Fi lets you connect and project from up to 50 devices via Epson iProjection.
  • Flexible Connectivity3x HDMI, VGA, USB and wired LAN make it easy to integrate into classroom or meeting-room AV setups.
  • Quiet OperationRuns as low as 27dB in Quiet mode, keeping the room distraction-free.
  • Technology
    • 3-chip 3LCD projection system (RGB liquid crystal shutter)
    • LCD Panel Size: 0.59" (1,024,000 dots)
  • Image
    • Native Resolution: WXGA (1280 x 800)
    • Aspect Ratio: 16:10 (also supports 16:9, 4:3)
    • Brightness (Colour/White, Normal): 4,100 lm
    • Contrast Ratio: Up to 2,500,000:1
    • Light Source: Laser Diode
    • Light Source Life: 20,000 hrs (Normal) / 30,000 hrs (Eco)
  • Projection Lens
    • Throw Ratio: 0.27–0.37:1 (Fixed, Ultra Short Throw)
    • Digital Zoom: 1.0–1.35x (manual)
    • Screen Size: 60"–150"
  • Connectivity
    • HDMI: 3x
    • Analog Input: D-Sub 15-pin (VGA)
    • Composite Input: RCA
    • USB Type-A/B: Yes
    • Wired LAN: RJ45
    • Wireless: Built-in 802.11a/b/g/n/ac (dual-band)
    • Control I/O: RS-232C
    • Epson iProjection: Connect up to 50 devices
  • General
    • Dimensions (max): 356 x 133 x 395 mm
    • Weight: Approx. 5.9 kg
    • Power Consumption: 277W (100–120V) / 263W (220–240V); Standby 0.5–2.0W
    • Fan Noise: 37dB (Normal/Extended) / 27dB (Quiet)

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's fixed lens throw ratio (0.27:1).

    —
    —

    Fixed lens (no optical zoom, manual focus). Screen size changes only by physically moving the projector closer to or further from the screen, at a fixed 0.27:1 throw ratio. This model also offers up to 1.4x digital zoom to shrink the image further at a given distance, but digital zoom reduces image quality and isn't reflected in the figures above.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)
    • Standard: 3-year on-site warranty included
    • Laser Light Source warranty: 12,000 hours or 36 months, whichever comes first
    • View CoverPlus extension options
    • Must be purchased before your standard warranty expires

    • Download Brochure (PDF)

    Download User Manual

    ELPMB62 UST Setting Plate
    ELPMB62 UST Setting Plate
    ELPAF60 Air Filter
    ELPAF60 Air Filter
    What is the EB-760W best suited for?
    The EB-760W is an ultra-short-throw projector that sits right beneath the screen, minimising shadows and freeing up the space in front of it.
    What resolution does the EB-760W project at?
    The EB-760W's native resolution is WXGA.
    How far from the screen does the EB-760W need to be placed?
    It has a throw ratio of 0.27–0.37:1 (fixed lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    Does the EB-760W use a lamp or a laser light source?
    This model uses a laser light source rather than a replaceable lamp, so there's no lamp to swap out over its rated life.
    What warranty comes with the EB-760W?
    Includes a 3-year on-site warranty, plus a laser light-source warranty of 12,000 hours or 36 months. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
