Epson EB-685W WXGA Ultra Short Throw Projector

RM6,550.00
RM6,550.00

This ultra-short-throw (UST) projector projects images up to 8 feet from just a few inches away, ideal for classrooms, boardrooms, and training rooms with limited space. Specialized lenses and mirrors achieve the ultra-short throw while eliminating shadows cast by presenters walking in front of the unit.
Total: MYR 6,550.00
Reference Number:Epson027
SKU: E0027
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

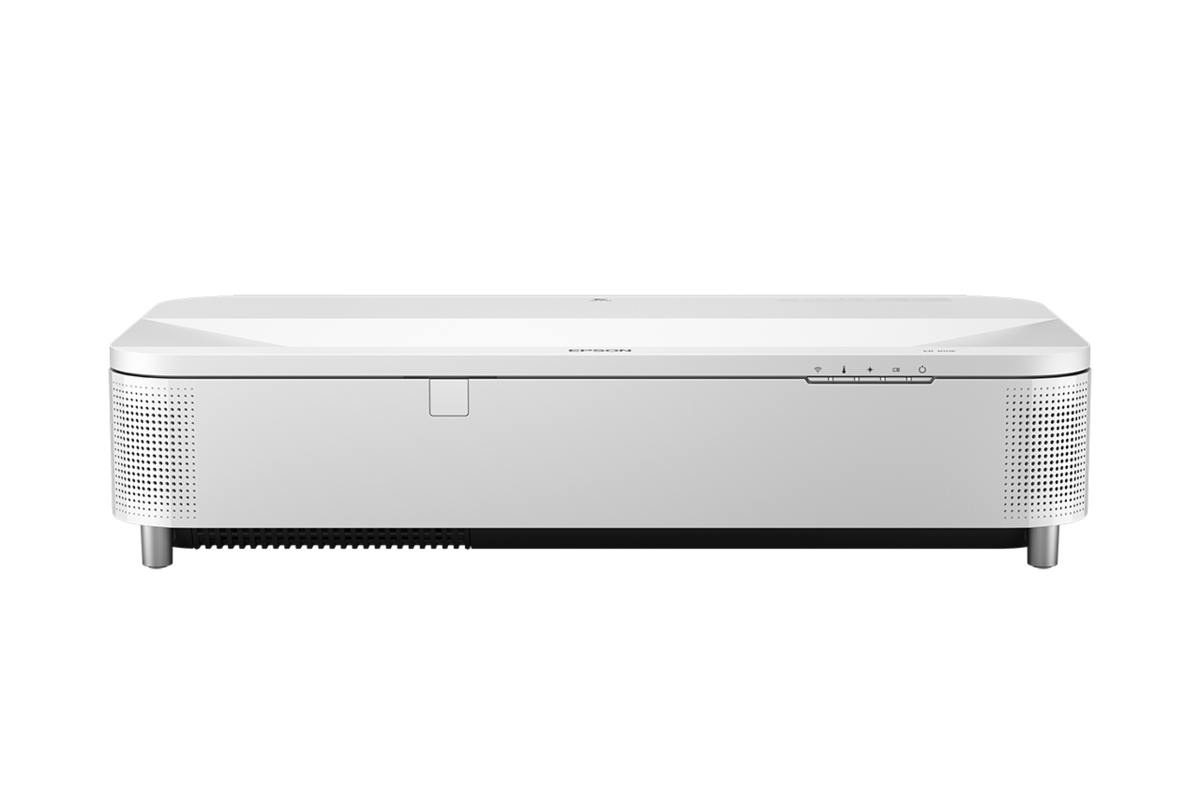

EpsonEpson EB-810E Full HD Laser Ultra Short Throw Projector
EB-810E
EB-760W
EpsonEpson EB-760W WXGA Laser Ultra Short Throw Projector
EB-685W
RM6,550.00
RM6,550.00
  • A cost-effective ultra-short-throw projector for classrooms and boardrooms with limited space — the EB-685W projects a bright, large image from just inches away, so presenters can move freely in front of the screen without casting shadows.
  • Ultra-Short Throw DesignA 0.28–0.37:1 throw ratio lets it sit just inches from the wall, projecting up to 100" images without shadows or glare.
  • Bright, Clear WXGA Image3,500 lumens of colour and white brightness with 14,000:1 contrast keeps content sharp and legible.
  • Long-Life LampRated for up to 10,000 hours in Eco mode, reducing replacement frequency and running costs.
  • Flexible Connectivity3x HDMI plus USB Display, VGA and composite input/output make it easy to connect laptops and classroom AV equipment.
  • Optional WirelessAdd wireless projection with the optional 802.11b/g/n module.
  • Compact & LightweightAt just 5.7kg, it's easy to wall- or ceiling-mount in space-constrained rooms.
  • Technology
    • 3LCD projection system
    • LCD Panel Size: 0.59" (D9)
  • Image
    • Native Resolution: WXGA (1280 x 800)
    • Aspect Ratio: 16:10
    • Brightness (Colour/White, Normal): 3,500 lm
    • Brightness (Eco): 2,900 lm
    • Contrast Ratio: 14,000:1
    • Light Source: 250W UHE Lamp
    • Light Source Life: 5,000 hrs (Normal) / 10,000 hrs (Eco)
  • Projection Lens
    • Throw Ratio: 0.28–0.37:1 (Ultra Short Throw)
    • Digital Zoom: 1.0–1.35x
    • Lens Shift: Manual Vertical/Horizontal ±3°
    • Screen Size: 60"–100"
    • Projection Distance: 0.4m (60") – 0.6m (100")
  • Connectivity
    • HDMI: 3x
    • USB Type-A/B: 2.0 (with USB Display)
    • Wired LAN: 100Base-TX / 10Base-T
    • Wireless: 802.11b/g/n (optional module)
    • Analog: RGB/Composite/VGA input & output
  • General
    • Dimensions (W x D x H): 367 x 400 x 149 mm
    • Weight: 5.7 kg
    • Power Consumption: 301W (Normal) / 258W (Eco) / 0.37W (Standby)
    • Fan Noise: 35dB (Normal) / 30dB (Eco)

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's fixed lens throw ratio (0.28:1).

    —
    —

    Fixed lens (no optical zoom, manual focus). Screen size changes only by physically moving the projector closer to or further from the screen, at a fixed 0.28:1 throw ratio. This model also offers up to 1.3x digital zoom to shrink the image further at a given distance, but digital zoom reduces image quality and isn't reflected in the figures above.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)

    • Download Brochure (PDF)

    Download User Manual

    ELPLP91 Replacement Lamp
    ELPLP91 Replacement Lamp
    ELPMB29 Table Projection Mount
    ELPMB29 Table Projection Mount
    ELPAF47 Air Filter Set
    ELPAF47 Air Filter Set
    What is the EB-685W best suited for?
    The EB-685W is an ultra-short-throw projector that sits right beneath the screen, minimising shadows and freeing up the space in front of it.
    What resolution does the EB-685W project at?
    The EB-685W's native resolution is WXGA.
    How far from the screen does the EB-685W need to be placed?
    It has a throw ratio of 0.28–0.37:1 (fixed lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    Does the EB-685W use a lamp or a laser light source?
    This model uses a traditional projector lamp, which is a wearable part — see the warranty question below for lamp coverage.
    What warranty comes with the EB-685W?
    Includes a 2-year carry-in warranty (plus 3 extra months when registered), and a 1-year (or 1,000-hour) lamp warranty. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
