VPC25-W33-O1-1B

Enquire for price

Slot-in PC module for ViewBoard interactive displays, turning the display into a standalone Windows computer.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "VPC25-W33-O1-1B".
Total: MYR 0.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

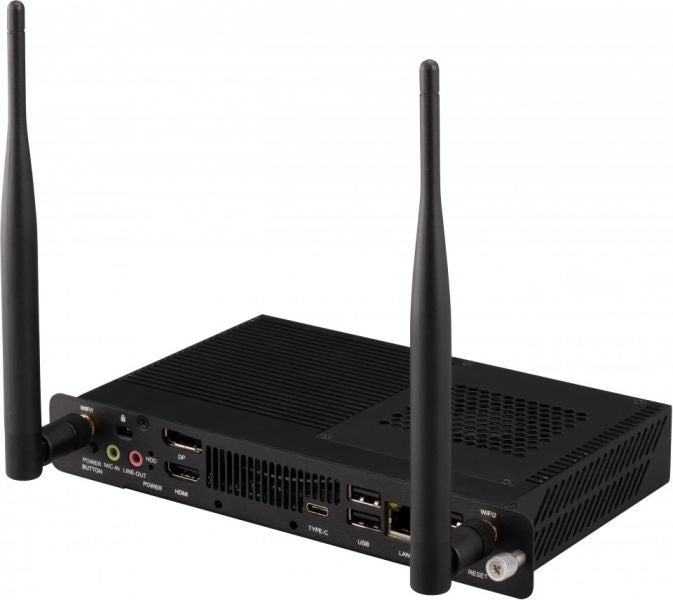

VPC25-W33-O1-1B
Enquire for price
  • A slot-in OPS PC module that turns a compatible ViewBoard interactive display into a standalone Windows computer — slide it into the display's OPS bay and skip the external PC, cables, and extra desk space entirely.
  • Intel Core i5 Performance10th Gen Intel Core i5-10400T with Turbo Boost up to 3.6GHz handles everyday productivity, presentation, and collaboration apps smoothly.
  • Windows 11 Pro Built InShips ready to use with Windows 11 Pro, so the display works as a full PC the moment it's installed.
  • Fast NVMe Storage256GB PCIe Gen3 SSD delivers quick boot times and responsive app switching.
  • Wi-Fi 6 & Gigabit LANIntel AX200 Wi-Fi 6 with Bluetooth 5.2, plus a Gigabit Ethernet port, for fast and reliable network connections.
  • Tool-Free OPS InstallationSlides directly into the OPS slot on compatible ViewBoard and commercial displays — no separate PC or cable clutter.
  • Broad Display CompatibilitySupports a wide range of ViewBoard and commercial display models from 55" to 86".
  • Processor & Graphics
    • CPU: Intel Core i5-10400T, 2.0GHz (Turbo Boost 3.6GHz), TPM 2.0 support
    • Graphics: Integrated Intel UHD 630
  • Memory & Storage
    • RAM: 8GB DDR4
    • Storage: 256GB M.2 2280 NVMe PCIe Gen3 SSD
  • Operating System
    • Windows 11 Pro (Windows 10 Pro downgrade preinstalled)
  • Connectivity
    • Video Output: DisplayPort 1.4 (4096x2160@60Hz), HDMI 1.4 (4096x2160@30Hz)
    • USB: 4x USB Type-A (1x USB 3.2, 3x USB 2.0), 1x USB Type-C
    • Audio: 1x Line-out, 1x Microphone input
    • Network: Gigabit LAN (RJ45)
  • Wireless
    • Intel AX200 Wi-Fi 6 + Bluetooth 5.2 (dual band)
  • General
    • Standard: OPS (Open Pluggable Specification), 80-pin connector
    • Dimensions: 202 x 119 x 30 mm (7.95 x 4.69 x 1.18 in)
    • Weight: 1 kg (2.2 lb)
    • Power: DC 12–19V @ 3.42A, 65W typical consumption
  • What's in the Box
    • VPC25-W33-O1-1B OPS slot-in PC module
    • Mounting screws (x2)
    • Quick start guide
