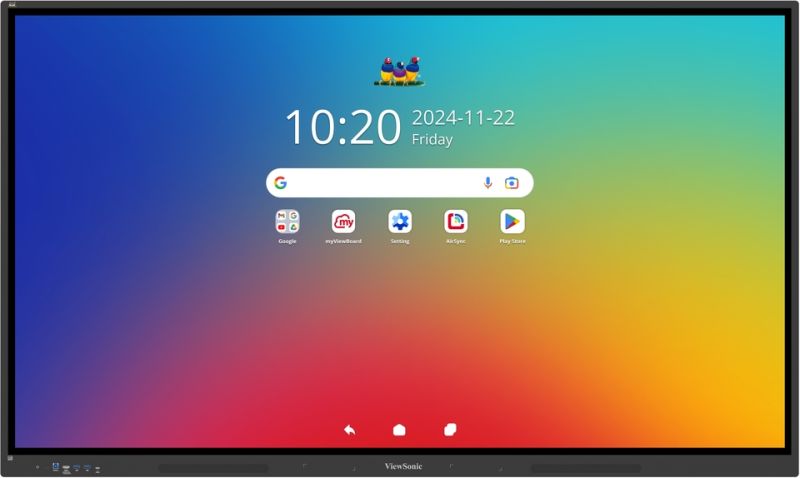

ViewBoard IFP8634

Enquire for price

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 86-inch 4K interactive display for classrooms and meeting rooms.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "ViewBoard IFP8634".
Total: MYR 0.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
ViewBoard IFP8634
Enquire for price
  • A Google EDLA-certified 86" 4K interactive display sized for large classrooms, lecture halls, and boardrooms — the IFP8634 combines precise 40-point touch with a built-in Android workspace and OPS expansion, so big-room collaboration doesn't need extra hardware.
  • 4K UHD at 86"3840x2160 resolution keeps content crisp and legible even at the back of a large room.
  • 40-Point Ultra Fine TouchSimultaneous 40-point touch with palm rejection enables natural multi-user writing across a big canvas.
  • Android 14 EDLA CertifiedFull Google Play access with enterprise-grade security and over-the-air updates.
  • Expandable with OPS Slot-In PCAdd an optional Windows OPS module to run desktop software natively.
  • Comprehensive ConnectivityThree HDMI inputs, DisplayPort, dual USB-C, and dual RJ45 ports support laptops, cameras, and network device management.
  • Built-In 16W Stereo SpeakersClear built-in audio suited to large-room presentations and video calls.
  • Included Collaboration SoftwaremyViewBoard annotation, AirSync wireless presentation, and Manager device management come pre-installed.
  • EPEAT Gold & ENERGY STAR 8.0 CertifiedMeets rigorous efficiency standards for sustainable large-format deployments.
  • Display
    • Screen Size: 86"
    • Panel Type: TFT LCD with DLED Backlight
    • Native Resolution: 3840 x 2160 (4K UHD)
    • Aspect Ratio: 16:9
    • Brightness: 350 nits
    • Contrast Ratio: 5000:1 (max, DCR enabled)
    • Response Time: 8ms
    • Viewing Angle: 178°/178° (H/V)
    • Surface Hardness: 7H Anti-glare coating
    • Backlight Life: 50,000 hours (8 hrs/day use)
  • Touch
    • Technology: Ultra Fine Touch (Infrared)
    • Touch Points: 40-point multi-touch
    • Touch Resolution: 32767 x 32767
    • Palm Rejection: Yes
  • OS/Compute
    • Operating System: Android 14, EDLA certified
    • Processor: Quad-core CPU
    • RAM: 8GB DDR4
    • Internal Storage: 128GB (expandable via microSD)
    • OPS Slot: 1x (optional Intel-standard slot-in PC module)
    • Software: myViewBoard, AirSync, Manager
  • Connectivity
    • HDMI: 3x (1 front, 2 rear with ARC)
    • DisplayPort: 1x
    • USB-A: 4x USB 3.2 Gen 1 + 1x USB 2.0
    • USB-C: 2x (front PD 65W, rear PD 15W)
    • RS232: 1x
    • RJ45 (LAN): 2x
    • MicroSD Slot: 1x
    • Wi-Fi Module Slot: 1x (optional)
  • Audio
    • Built-In Speakers: 16W x 2
    • Audio Output: 1x
    • S/PDIF: 1x
  • Physical/Power
    • Dimensions: 1961.8 x 1163.9 x 87.7 mm (77.2 x 45.8 x 3.45 in)
    • Net Weight: 62.3 kg (137.35 lbs)
    • Gross Weight: 77.3 kg (170.42 lbs)
    • VESA Mounting Pattern: 800 x 600 mm
    • Power Input: 100-240V AC
    • Power Consumption: 114.15W (On) / ≤0.5W (Standby)
    • Operating Temperature: 0°C–40°C, 20–80% RH non-condensing
    • Certifications: EPEAT Gold, ENERGY STAR 8.0 (EEI Rating F), FCC, CE, RoHS, WEEE, BIS
  • What's in the Box
    • ViewBoard IFP8634 interactive display
    • Remote control with batteries
    • Power cord
    • Touch pens (x2)
    • USB cable (Type-A to Type-B)
    • Wall mount bracket and screws
    • Quick start guide

    • Download Brochure (PDF)

    Download User Manual
