VB-WIFI-001

Enquire for price

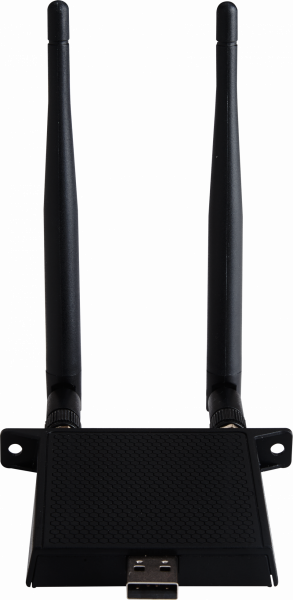

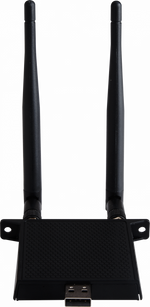

ViewSonic wireless module for ViewBoard and wireless presentation displays with Wi-Fi 6 connectivity.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "VB-WIFI-001".
Total: MYR 0.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
VB-WIFI-001
Enquire for price
  • A dual-band wireless module that adds Wi-Fi 6 and Bluetooth connectivity to compatible ViewBoard interactive displays, enabling wireless screen casting and network access without an external adapter.
  • Wi-Fi 6 Connectivity802.11ax support delivers faster, more reliable wireless performance across busy meeting and classroom networks.
  • Dual-Band 2.4GHz / 5GHzConnects on whichever band gives the cleanest signal in the room.
  • Bluetooth 5.2Pairs with Bluetooth peripherals and accessories alongside the Wi-Fi connection.
  • Compact Internal FitSlots into the display's dedicated wireless module bay, keeping the install cable-free and out of sight.
  • Low Power DrawUnder 4.5W consumption keeps the module running cool with minimal impact on the display's power budget.
  • Wireless Standards
    • Wi-Fi: 802.11 a/b/g/n/ac/ax (Wi-Fi 6), dual-band 2.4GHz & 5GHz
    • Bluetooth: 2.2 / 3.0 / 4.0 / 5.2 BLE
  • Compatibility
    • ViewBoard IFP52, IFP62, and select IFP50/55 series displays (check model compatibility before ordering)
  • Connector Type
    • Internal wireless module for ViewBoard's dedicated Wi-Fi module slot
  • Physical & Power
    • Dimensions: 99 x 11 x 77 mm (3.90 x 0.43 x 3.03 in)
    • Weight: 30g net
    • Power: 5V DC @ 0.9A, <4.5W consumption
    • Operating Temperature: 0–40°C; Humidity: 10–90% non-condensing
  • Certifications
    • FCC, IC, CE, RCM
  • What's in the Box
    • VB-WIFI-001 wireless module
    • Quick start guide
