Grandview Large Stage Series Motorized Tab-Tension MA

Enquire for price

This professional-grade tab-tensioned projection screen is engineered for large-scale installations, featuring a lightweight yet high-strength aluminum casing with an oversized reinforced roller tube that prevents sagging, driven by an industrial motor with integrated DC magnetic brake. Its precision tab-tensioning mechanism applies uniform tension across the entire surface to eliminate wrinkles and edge curl, maintaining flatness up to 300" diagonal across aspect ratios 4:3, 16:9, 16:10, and 2.35:1. Available in UHD130 (1.3 gain, 130° viewing angle), WW5 (1.0 gain, 160° viewing angle), and GG3 (0.8 gain, 160° viewing angle) fabric options.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "Grandview Large Stage Series Motorized Tab-Tension MA".
Total: MYR 0.00
SKU: LSMAT
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

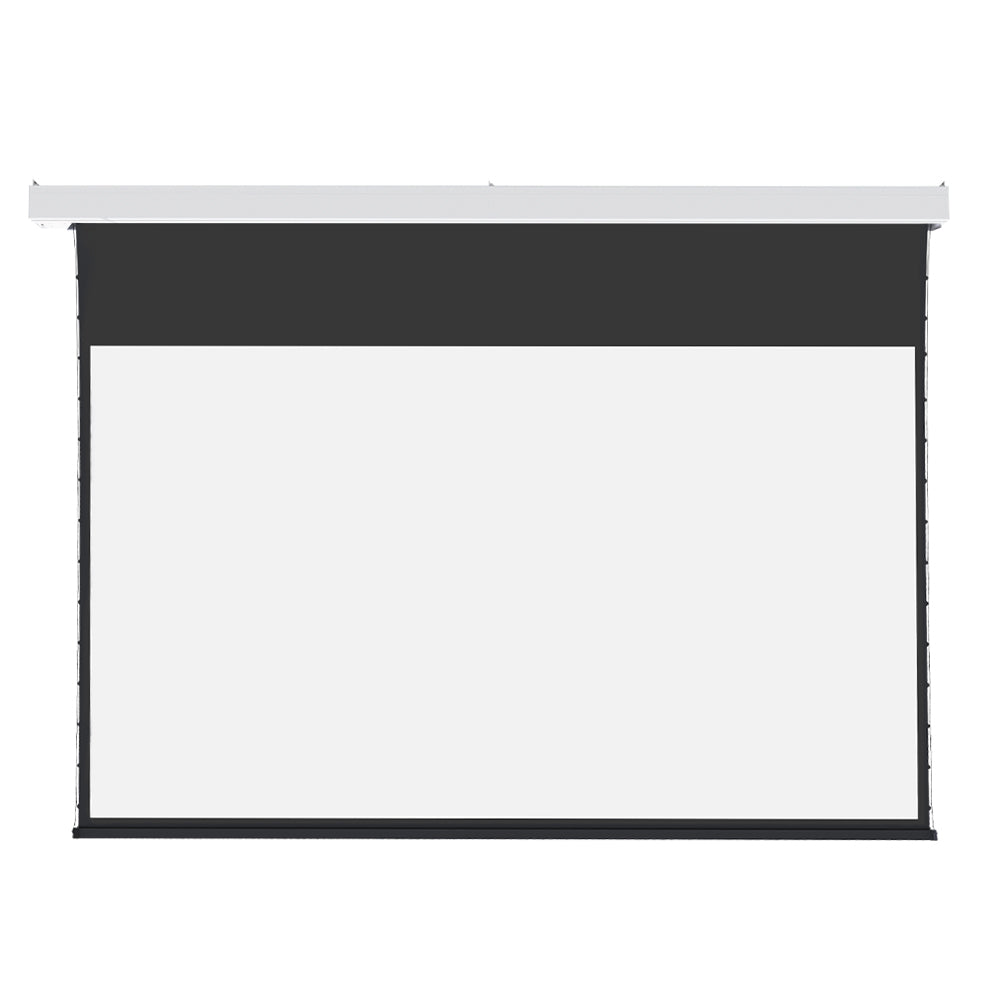

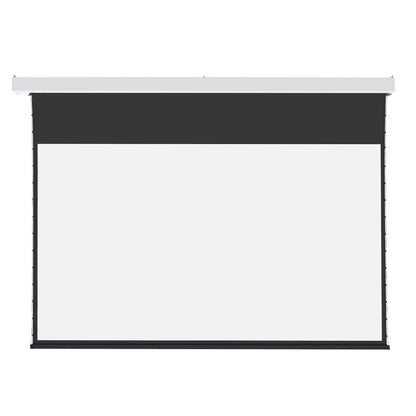

Grandview Large Stage Series Tab-Tension MA motorized screen
Enquire for price
  • Purpose-built for demanding, large-scale installations, the Large Stage Series Tab-Tension MA delivers a perfectly flat viewing surface even at massive diagonal sizes.
  • Precision Tab-TensioningUniform tension across the entire surface eliminates wrinkles and edge curl up to 300", for distortion-free image reproduction.
  • Oversized Reinforced RollerHeavy-duty roller tube prevents "V-shaped" sagging under large, heavy fabric loads.
  • Industrial Motor with DC BrakeHigh-performance motor with integrated DC magnetic brake ensures safe, reliable continuous operation.
  • Self-Lubricating BearingsUniversal bearings minimize noise, vibration, and mechanical wear for a longer service life.
  • Structure/Frame
    • Lightweight, high-strength aluminum casing; oversized reinforced roller tube
    • Endcap 221mm H x 221mm W; black drop 600mm; borders 80mm
  • Fabric
    • UHD130 — gain 1.3, 130° viewing angle
    • WW5 — gain 1.0, 160° viewing angle
    • GG3 — gain 0.8, 160° viewing angle
  • Available Sizes
    • 200", 220", 221", 240", 250", 280", 300" diagonal
    • Aspect ratios: 4:3, 16:9, 16:10, 2.35:1
  • Control System
    • Motorized with integrated DC magnetic brake
  • Rigging/Mounting
    • Engineered for large-scale, suspended venue installs
  • Warranty
    • Grandview standard limited manufacturer warranty
  • What's in the Box
    • Motorized Tab-Tension MA screen assembly
    • In-Line Switch
    • Limit Adjustment Tool
    • Mounting hardware
    • User manual and product catalog

    • Download Brochure (PDF)
