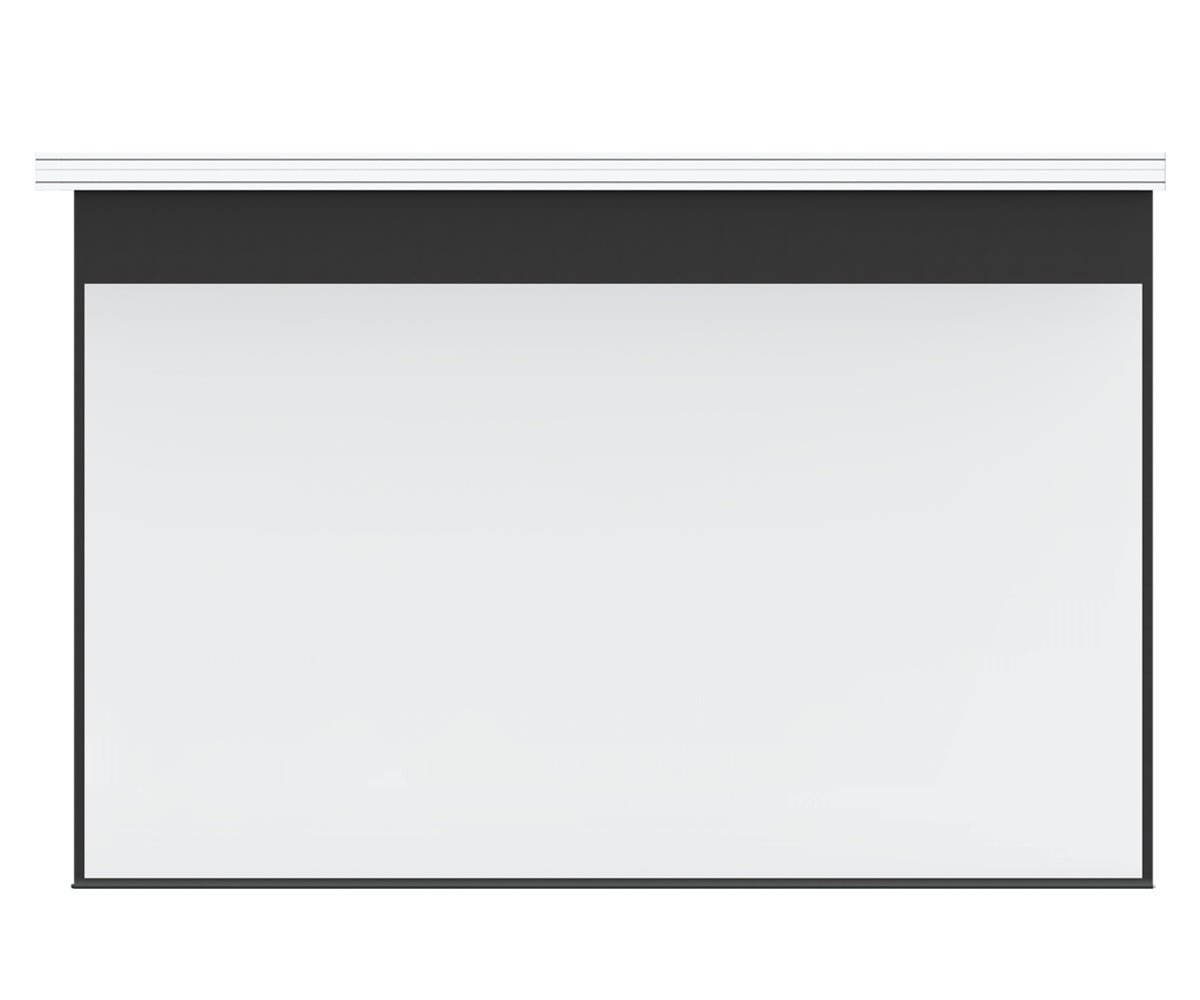

Grandview Large Stage Series Motorized Screen-Model MB
Enquire for price
This large-format motorized screen features a double positioning design with a built-in physical stroke counter and factory-set limits for security and safety, along with multiple control options including RF, RS485, and dry contact. A screen flatness adjustment rod eliminates fabric wrinkles on screens up to 400", while the high-efficiency motor includes a built-in DC magnetic brake system for durable extended operation, available in internal or external motor configurations. Sizes range from 300" to 400" diagonal across aspect ratios 4:3, 16:9, 16:10, and 2.35:1, using WM9 fabric with 1.0 gain and 160° viewing angle.
Couldn't load pickup availability
Total: MYR 0.00
Enquire for price

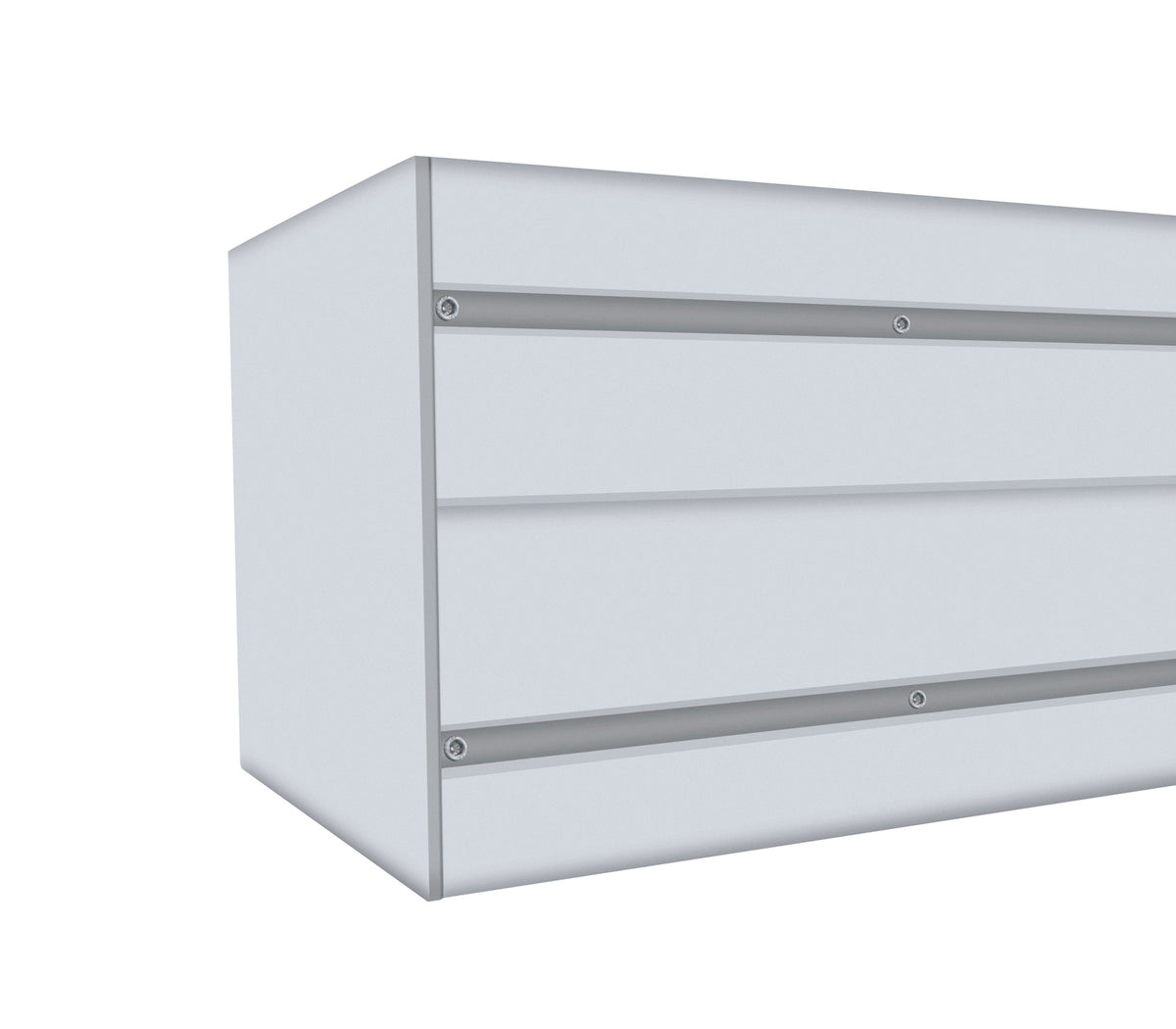

- Heavy-duty aluminum construction, endcap 282mm H x 282mm W
- WM9 fiberglass matte white — gain 1.0, 160° viewing angle
- 300"-400" diagonal (4:3); 300"-380" (16:9); 300"-380" (16:10); 300"-350" (2.35:1)
- Internal or external motor; in-line switch standard
- Optional external RF and IR control systems
- Ceiling or wall mount; 600mm black drop (external motor)
- Grandview standard limited manufacturer warranty
- Motorized Model MB screen assembly with integrated motor

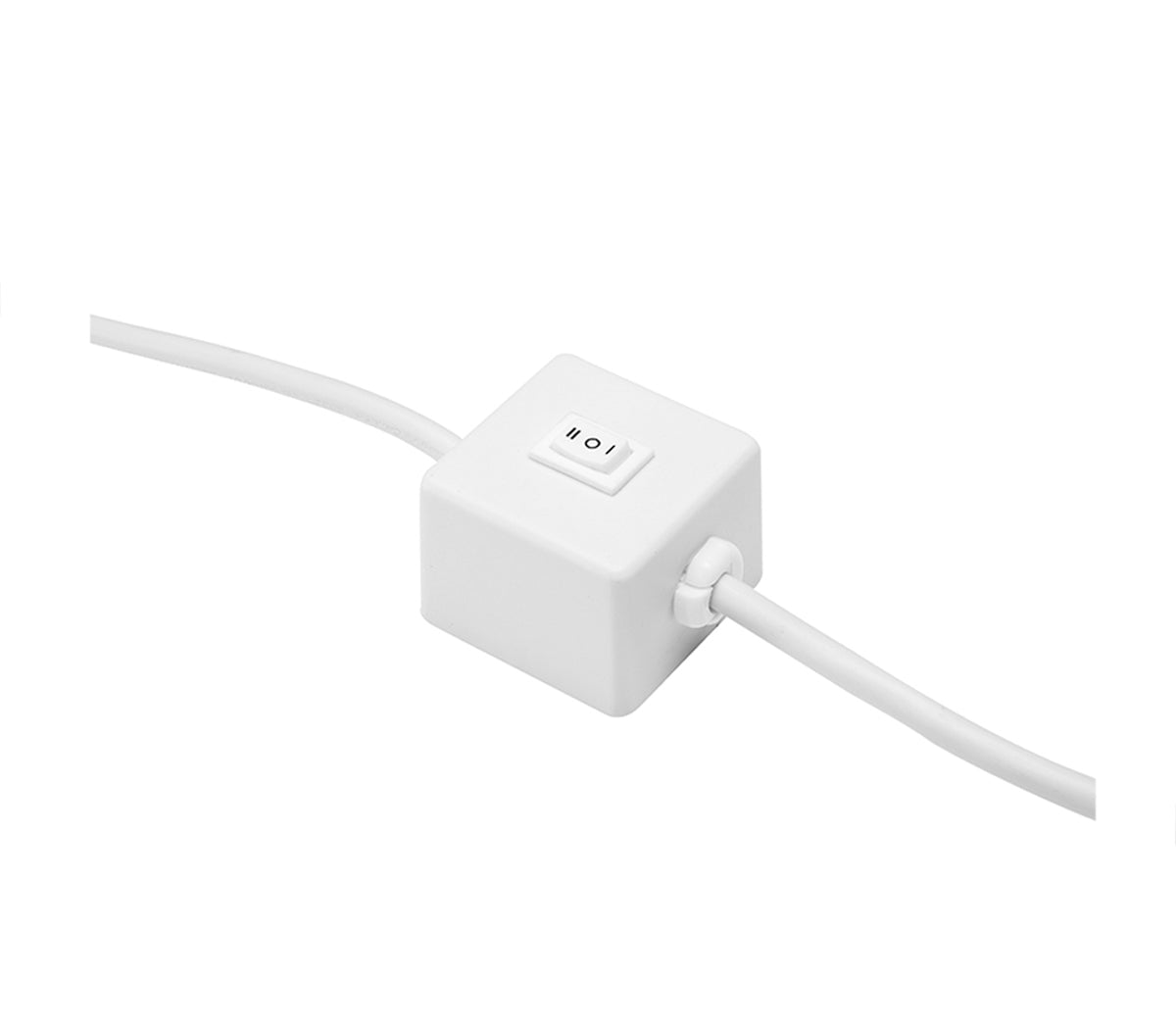

- In-Line Switch

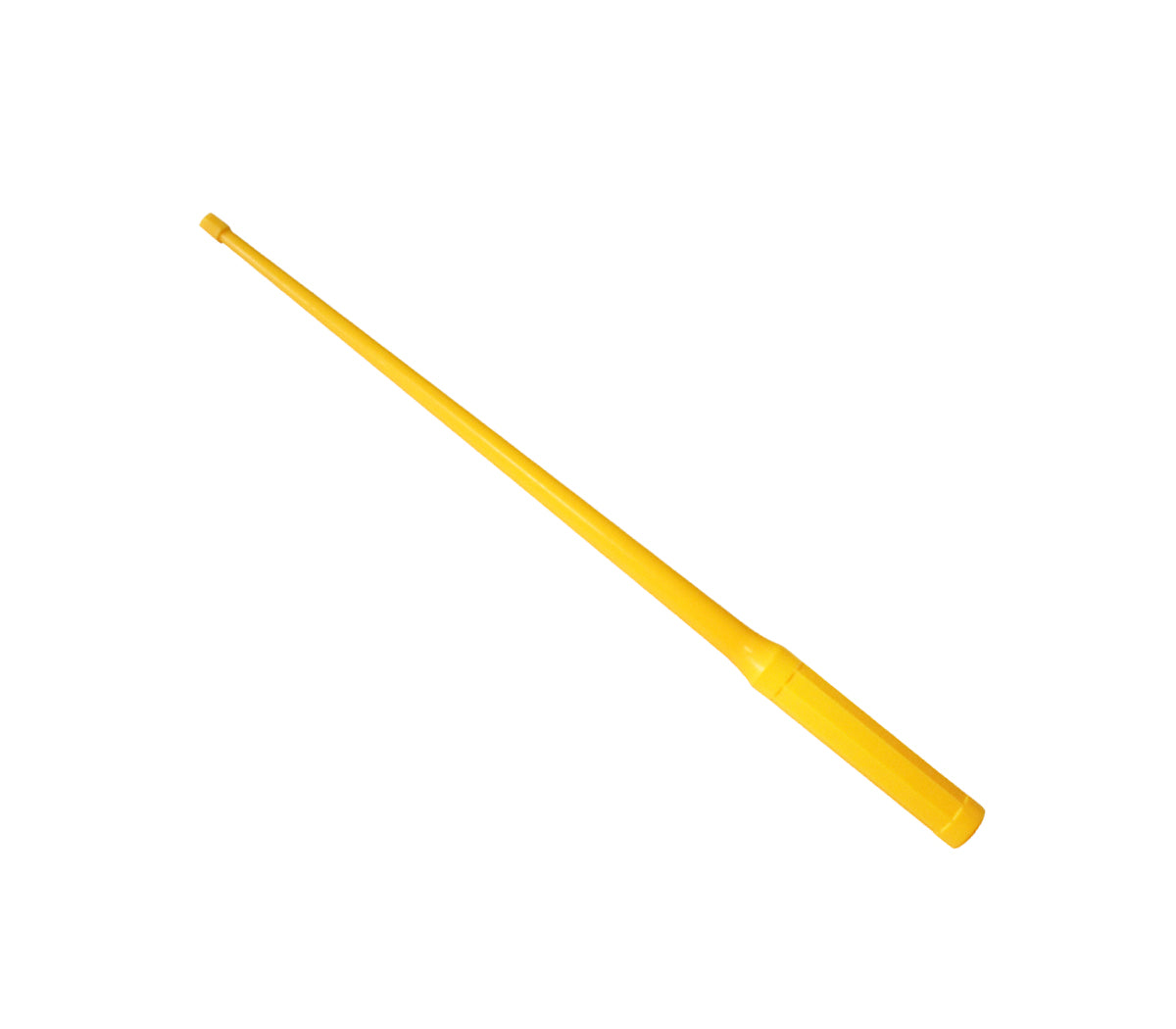

- Limit Adjustment Tool
- User manual and product catalog
Standard accessories
- In-Line Switch
- Limit Adjustment Tool
Optional accessories

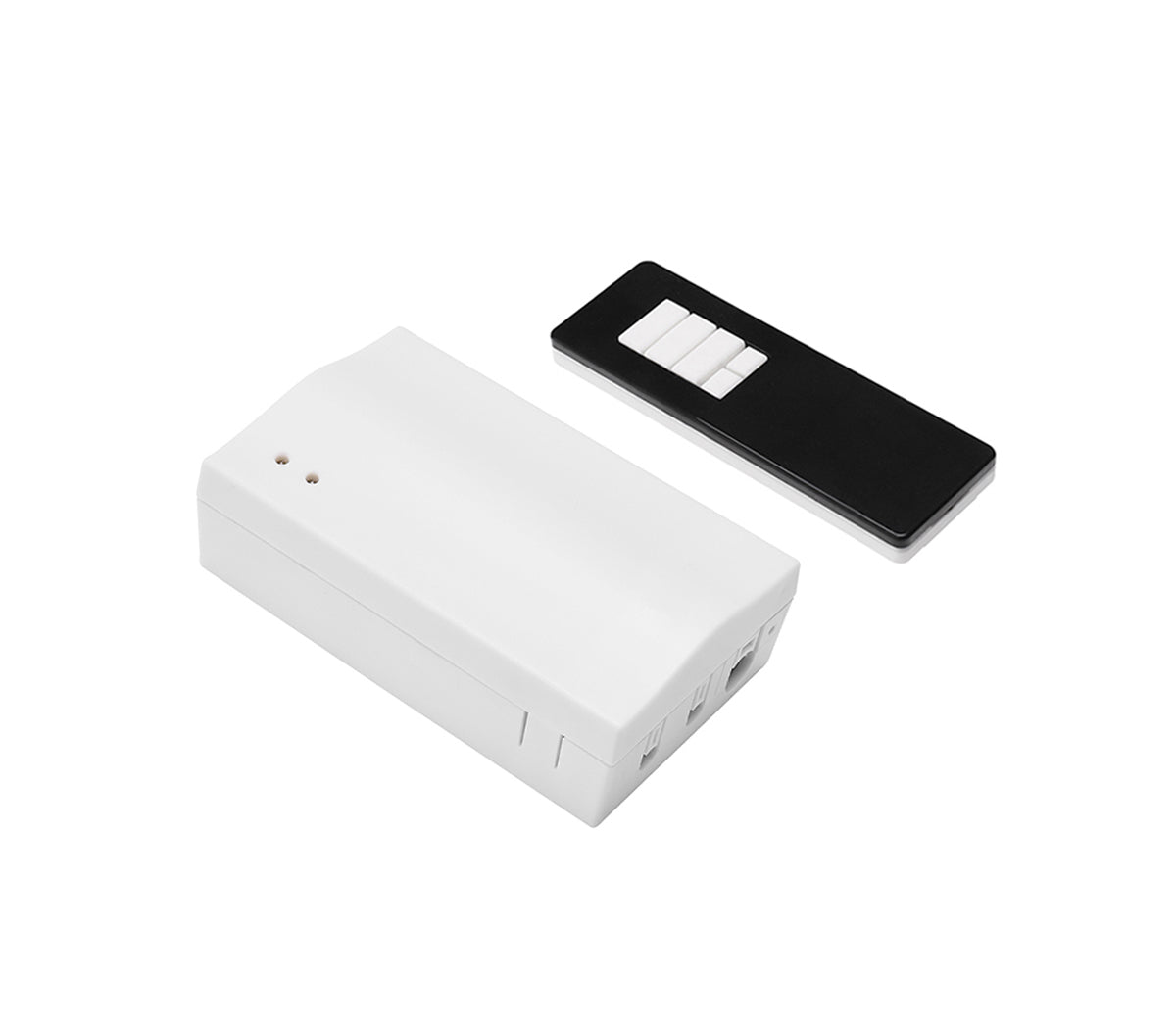

- External RF Control System
- External IR Control System
