By Grandview

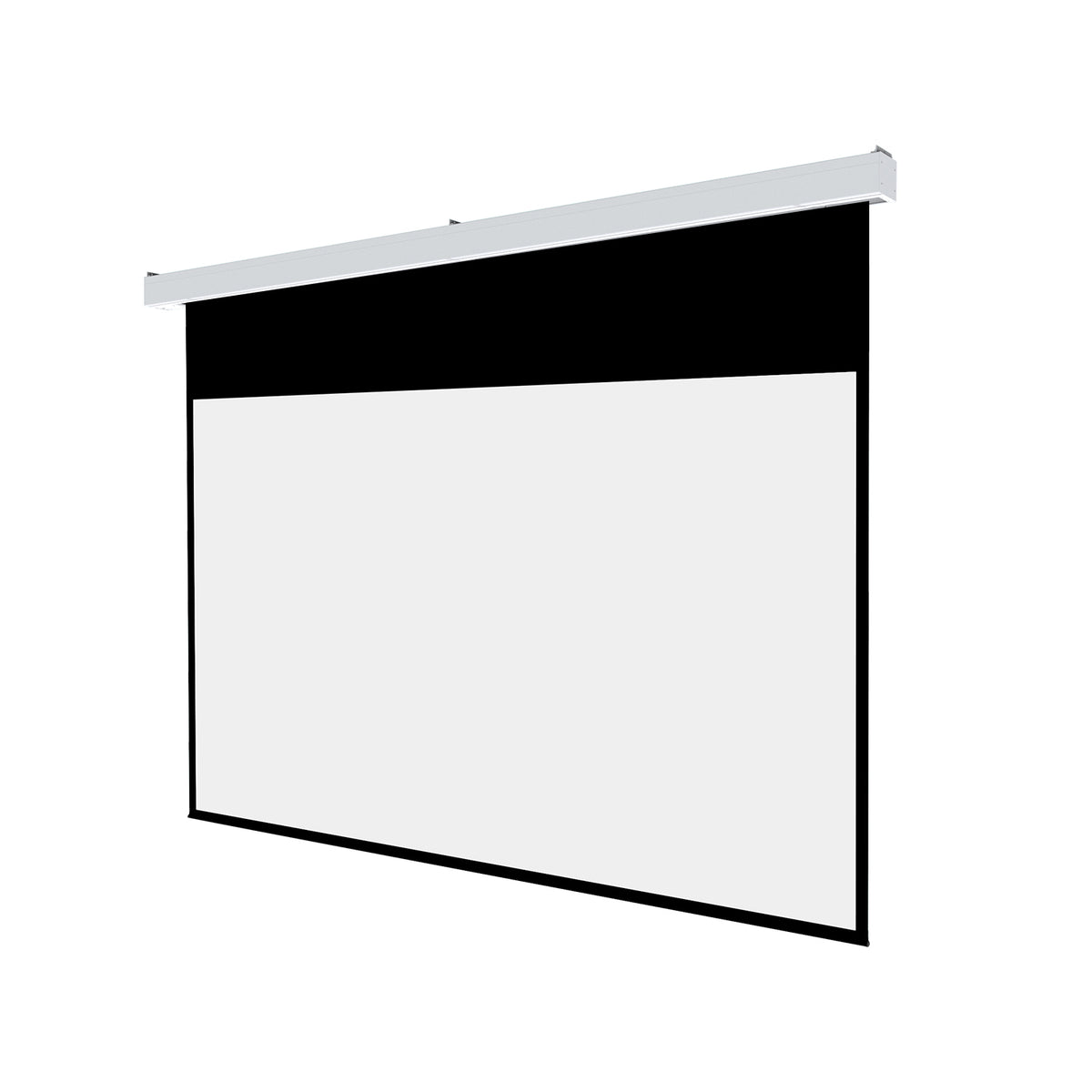

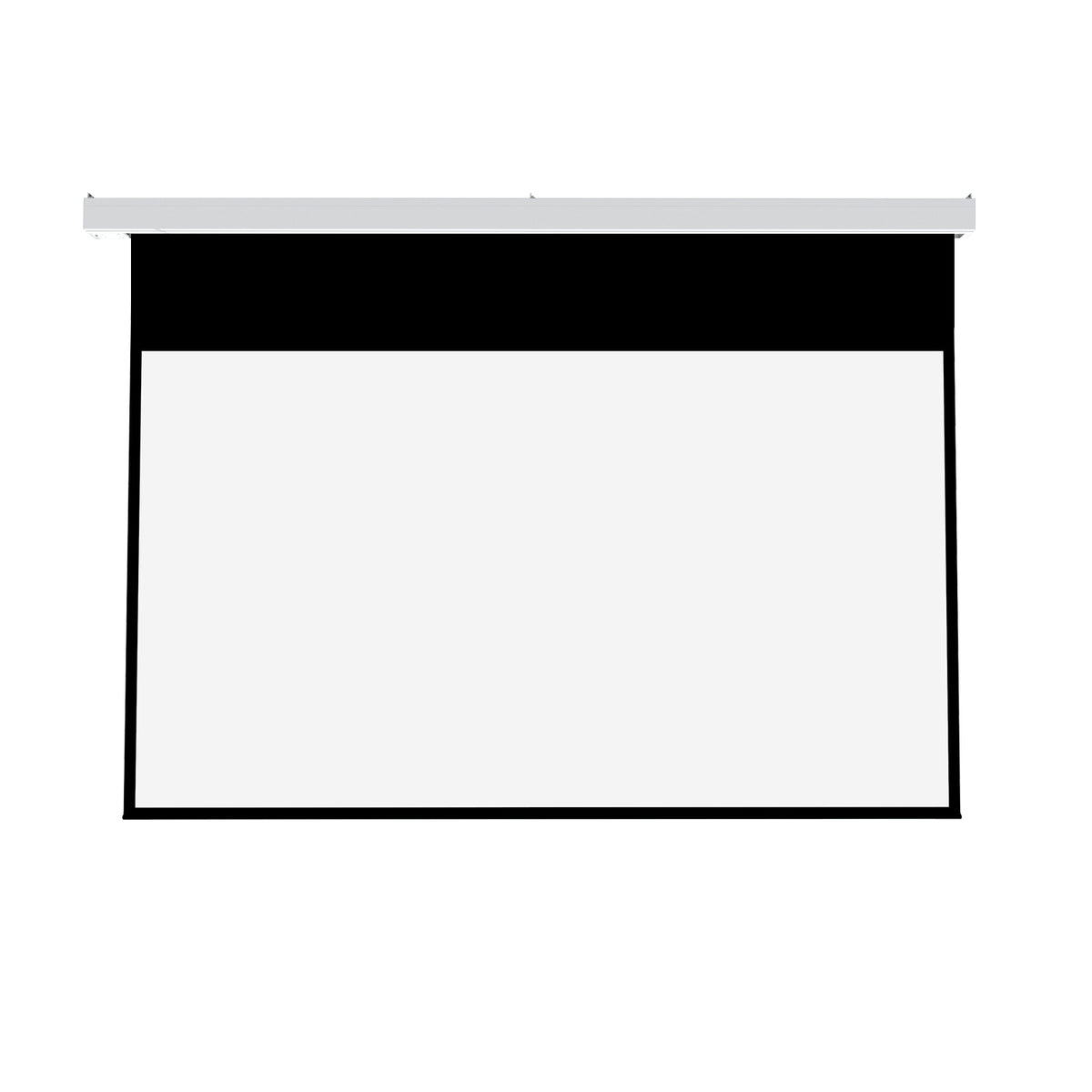

Grandview Large Stage Series Motorized Screen-Model MA
Enquire for price
This commercial-grade projection screen excels in large venue installations, incorporating a high-intensity extra-large aluminum alloy roller that maintains rigidity across spans up to 10 meters, with self-lubricating supports and shock-absorbent parts that reduce operational noise and vibration. Available in 200"-300" diagonal sizes with an aluminum casing and suspended mounting, in aspect ratios 4:3, 16:9, 16:10, and 2.35:1, with internal or external motor configurations controllable via IR, RF, RS485, dry contact, or 3-12V trigger. Uses WM9 fabric with 1.0 gain and 160° viewing angle.
Couldn't load pickup availability
Total: MYR 0.00
Enquire for price
- Aluminum casing, endcap 221mm H x 221mm W
- Black drop 600mm; side/lower borders 80mm
- WM9 fiberglass matte white — gain 1.0, 160° viewing angle
- 200", 220", 221", 240", 246", 250", 280", 300" diagonal
- Aspect ratios: 4:3, 16:9, 16:10, 2.35:1
- Internal or external motor
- IR, RF, RS485 + dry contact, 3-12V trigger, central control compatible
- Suspended mount system
- Grandview standard limited manufacturer warranty
- Motorized Model MA screen assembly

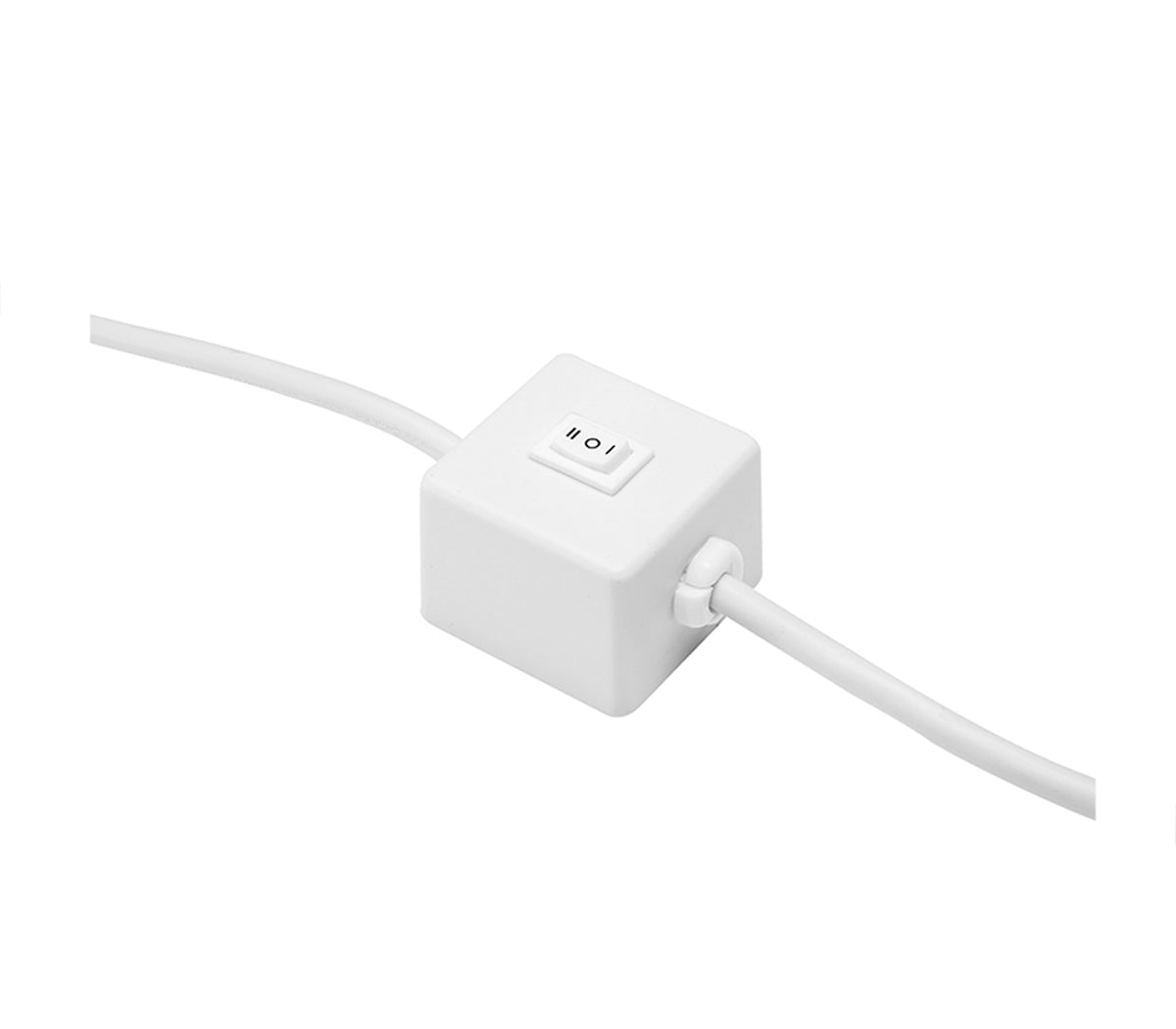

- In-Line Switch

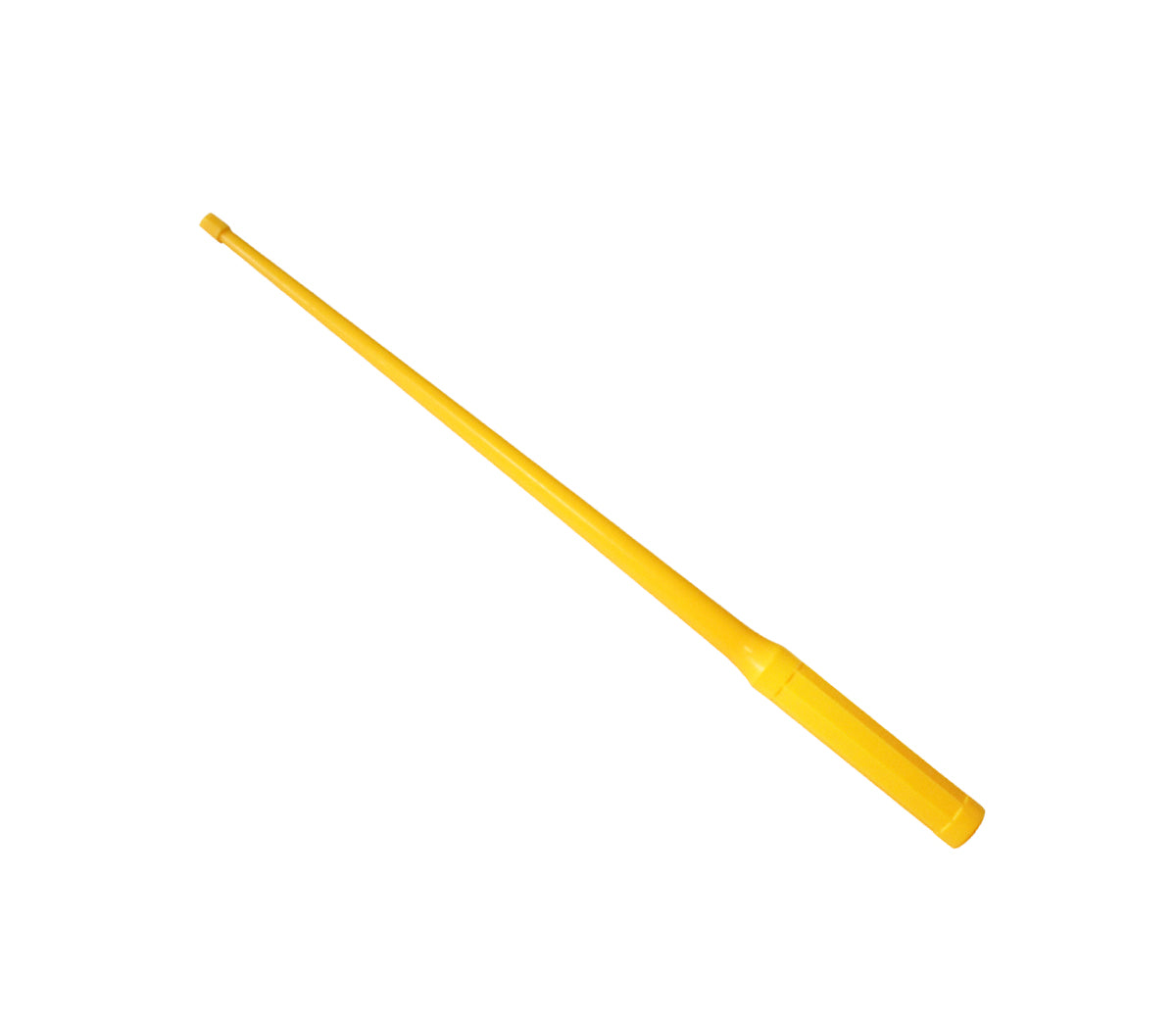

- Limit Adjustment Tool
- Mounting hardware
- User manual
Standard accessories
- In-Line Switch
- Limit Adjustment Tool
Optional accessories
- External RF Control System
- External IR Control System
