Grandview Large Stage Series Motorized Screen-Model M

Enquire for price

This commercial-grade projection screen features a high-intensity extra-large aluminum alloy roller construction that maintains rigidity across spans up to 10 meters, with self-lubricating supports and shock-absorbent parts that reduce noise and vibration. Available in 400"-500" diagonal sizes with wall or ceiling mount configurations, in aspect ratios 4:3, 16:9, 16:10, and 2.35:1. Uses WM9 fiberglass matte white fabric with 160° viewing angle and 1.0 gain.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "Grandview Large Stage Series Motorized Screen-Model M".
Total: MYR 0.00
SKU: LSM
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

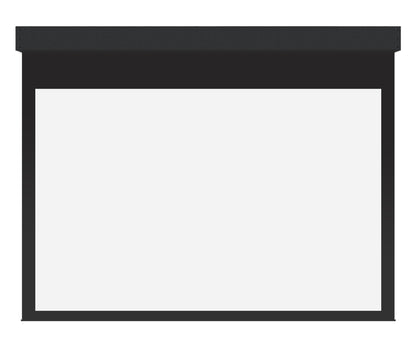

Grandview Large Stage Series Model M motorized projection screen
Enquire for price
  • Grandview's Large Stage Series Model M is a commercial-grade motorized projection screen engineered for auditoriums, ballrooms and worship venues that demand rock-solid flatness at extreme sizes.
  • Reinforced Roller ConstructionHigh-intensity extra-large aluminum alloy roller stays rigid and flat across spans up to 10 meters, even at large diagonal sizes.
  • Quiet, Shock-Absorbent DriveSelf-lubricating supports and shock-absorbent components minimize noise and vibration during raise/lower cycles.
  • Flexible MountingWall or ceiling mount configurations with a black, high-intensity casing for a finished, professional appearance.
  • Structure/Frame
    • High-intensity extra-large aluminum alloy roller

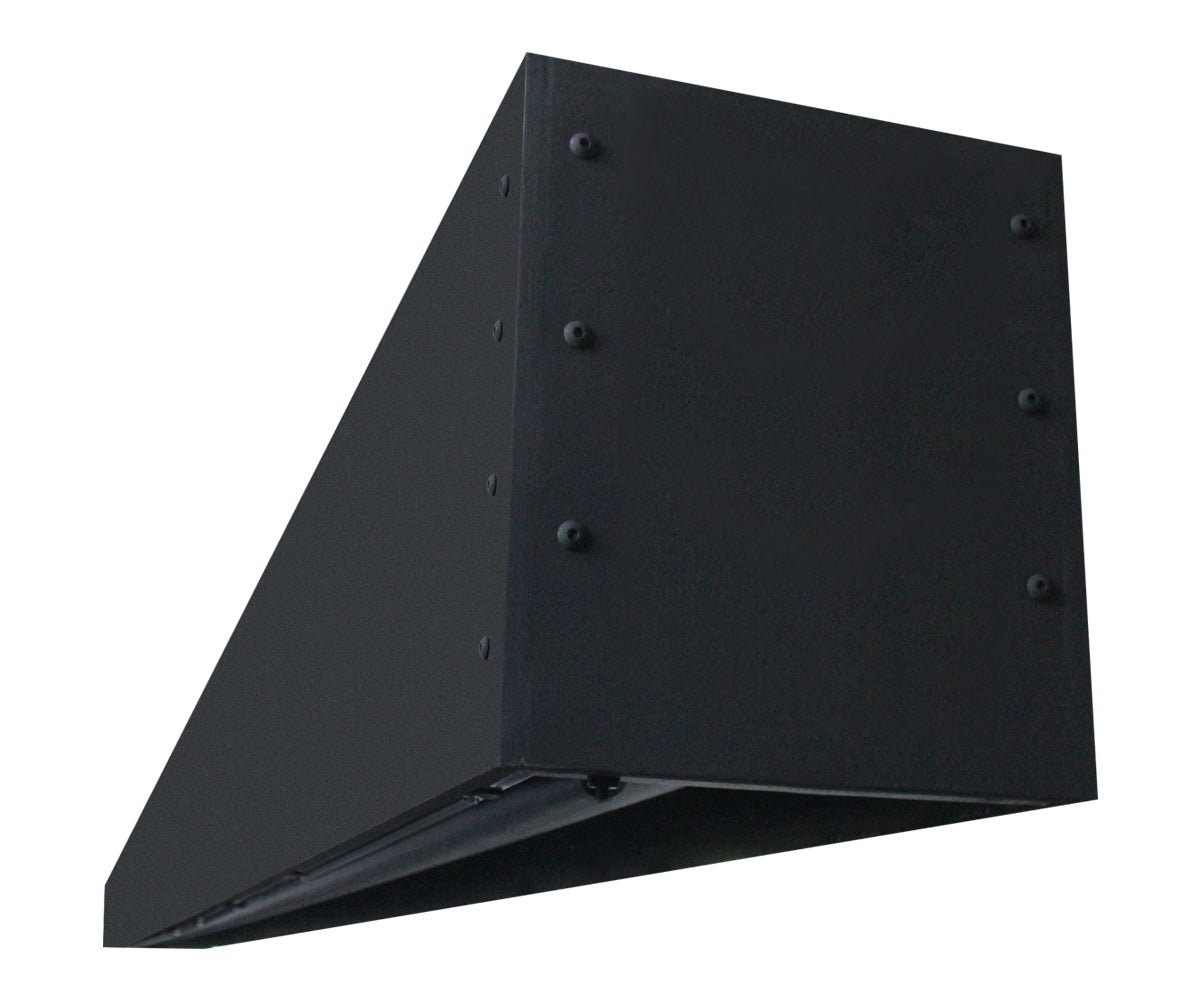

    • Black high-intensity casing, endcap 221mm H x 221mm W
  • Fabric
    • WM9 fiberglass matte white — gain 1.0, 160° viewing angle
  • Available Sizes
    • 200", 220", 221", 240", 246", 250", 280", 300" diagonal (large-format custom sizes up to 400"-500" available)
    • Aspect ratios: 4:3, 16:9, 16:10, 2.35:1
  • Control System
    • Internal or external motor
    • Optional external RF or IR control system
    • Standard in-line switch with limit adjustment tool
  • Rigging/Mounting
    • Wall mount or ceiling mount
    • Black drop 600mm; side/lower borders 80mm
  • Warranty
    • Grandview standard limited manufacturer warranty
  • What's in the Box
    • Motorized Model M screen assembly with pre-installed fabric
    • In-Line Switch
    • Limit Adjustment Tool
    • Mounting hardware
    • User manual

    • Download Brochure (PDF)

    Download User Manual

    Standard accessories

    • In-Line Switch
    • Limit Adjustment Tool

    Optional accessories

    • External RF Control System
    • External IR Control System
