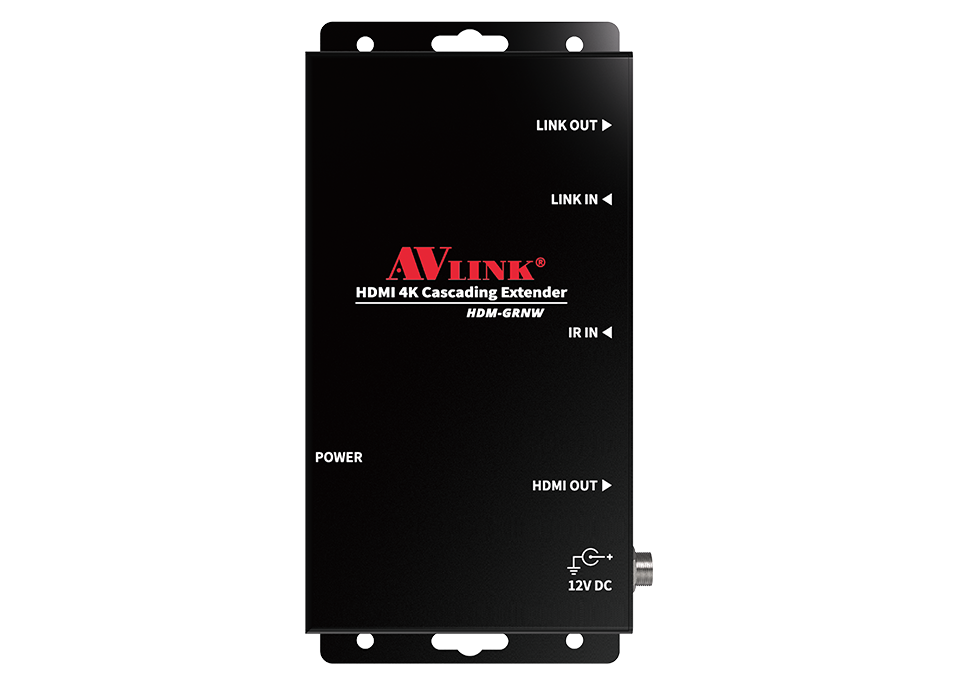

HDM-GENW

RM100.00
RM100.00

This HDMI extender delivers 4K/60Hz 4:4:4 signal up to 50 meters over Cat5e/6 cable, with multi-receiver cascading up to 2 levels for 4K/60Hz sources or 4 levels for 4K/30Hz sources. It supports Power over Cable (PoC), HDCP 2.2/1.4 compliance, HDMI local loopback on the transmitter, and full-band IR control.
Total: MYR 100.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
HDM-GENW
RM100.00
RM100.00
  • The HDM-GENW is a cascading 4K HDMI extender system that carries 4K@60Hz 4:4:4 video up to 50 metres over standard network cable, with the ability to chain multiple receivers for distributing one source to several displays.
  • 4K@60Hz 4:4:4 Extension to 50mDelivers full 4K@60Hz 4:4:4 video over a single Cat.5e/6/6a cable, up to 50 metres from source to display.
  • Multi-Level CascadingChain up to 2 receivers at 4K@60Hz, or up to 4 receivers at 4K@30Hz, to feed several displays from one source.
  • Power over Cable (PoC)Power the whole link from one end — no separate power adapter needed at every point in the chain.
  • Local HDMI LoopbackThe transmitter's HDMI loopback output lets you preview the source locally, right at the source equipment.
  • HDCP 2.2 / 1.4 CompliantFully compatible with protected 4K content from streaming boxes, Blu-ray players and set-top boxes.
  • Full-Band IR Pass-ThroughIR control signals pass between transmitter and receiver so remotes keep working at the display end.
  • Compact Metal Wall-Mount HousingSlim metal enclosures mount neatly behind displays or in equipment racks.
  • Video/HDMI
    • Resolution: 4K@60Hz (3840x2160), 4:4:4 chroma
    • HDCP Compliant: 2.2 / 1.4
    • HDMI Local Loopback at the transmitter for on-site preview
  • Distance/Cascade
    • Cable Distance: up to 50m over Cat.5e/6/6a
    • Cascade Connection: up to 2 levels (2 receivers) at 4K@60Hz, or up to 4 levels (4 receivers) at 4K@30Hz
    • Power over Cable (PoC) Supported
  • Connectivity
    • Transmitter (HDM-GLNW): 1x HDMI in, 1x HDMI out (loopback), 1x LAN (RJ-45), 1x IR out
    • Receiver (HDM-GRNW): 1x HDMI out, 2x LAN (RJ-45, in/cascade), 1x IR in
  • Control
    • IR Control: full frequency band, pass-through
  • General/Physical
    • Dimensions (each unit): 78 x 155 x 26mm
    • Weight (each unit): approx. 665g
    • Housing: Metal, wall-mountable
  • Power
    • Input (each unit): DC12V, 2A
  • What's in the Box
    • 1x HDM-GENW extender unit
    • 1x DC12V power adapter
    • Quick installation guide
  • Note
    • Sold as a standalone unit — pairs with its matching HDM-GENW transmitter or receiver (sold separately) to complete a link, or use it to add an extra display to an existing HDM-GENW cascade

    • Download User Manual
