  3. HDM-EXC (Pair)
By AVLink

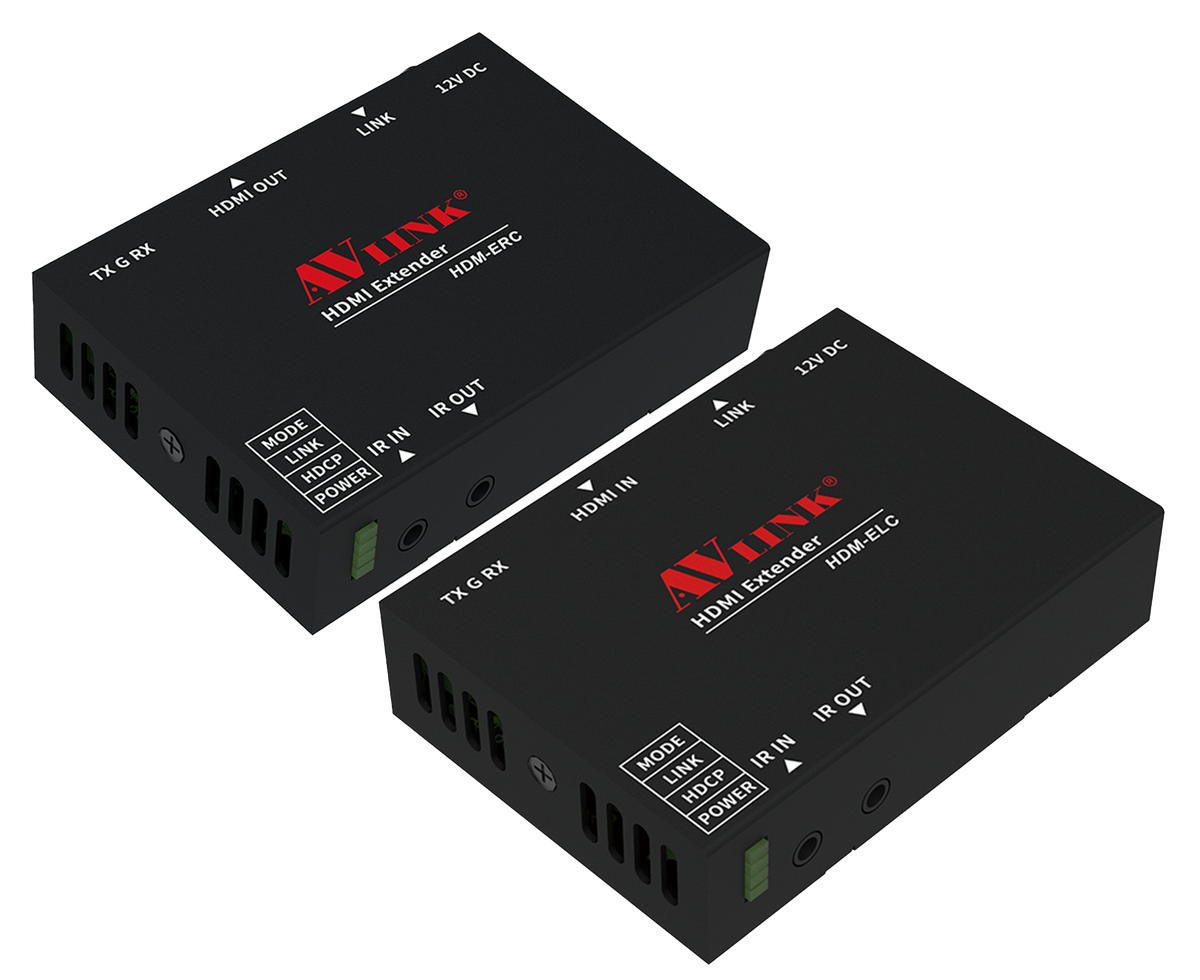

HDM-EXC (Pair)

RM990.00
RM990.00

This HDBaseT transmitter/receiver pair delivers uncompressed ultra-HD video, 3D video, digital audio, DC power, and RS-232 control over a single category cable (Cat5e/6/6a/7) up to 100 meters, supporting 4K@60Hz 4:2:0 and 4K@30Hz 4:4:4 with 3D and CEC pass-through.
Total: MYR 990.00
SKU: EH0024
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
HDM-EXC Pair
RM990.00
RM990.00
  • A complete point-to-point HDBaseT extension kit that carries uncompressed Ultra-HD video, digital audio, RS-232 and IR control over a single Cat5e/6/6a/7 cable up to 100 metres — everything needed to send an HDMI source to a distant display, projector or receiver, in one box.
  • Single-Cable HDBaseT ExtensionExtends HDMI up to 100m over one Cat5e/6/6a/7 cable, eliminating the need for separate video, audio and control runs.
  • Ultra-HD Video SupportPasses 4K/60Hz (4:2:0) and 4K/30Hz (4:4:4) video with HDCP 1.4/2.2 compliance, plus 3D and CEC pass-through.
  • Bi-Directional RS-232 & IR ControlControl source or display equipment from either end of the link, with full frequency-band IR pass-through.
  • Power over Cable FlexibilityPoC support simplifies cabling to hard-to-reach display locations.
  • Complete Ready-to-Install KitIncludes transmitter, receiver, power adapters, HDMI cable, IR cables and mounting hardware.
  • Compact Metal HousingDurable metal enclosures with a small footprint for desks, racks or behind a display.
  • Video/HDMI
    • Max Resolution: 4K/60Hz (4:2:0) / 4K/30Hz (4:4:4)
    • HDCP Compliance: HDCP 1.4 / 2.2
    • 3D Pass-Through: Yes
    • CEC Pass-Through: Yes
    • HDMI Input (Local/HDM-ELC): Type-A Female x1
    • HDMI Output (Remote/HDM-ERC): Type-A Female x1
  • Control
    • RS-232: Bi-directional pass-through (terminal blocks)
    • IR Control: Full frequency-band IR pass-through (blaster + receiver cables included)
  • Connectivity
    • Network Port: RJ-45 x1 per unit
    • Technology: HDBaseT 1.0
    • Transmission Cable: Single Cat5e/6/6a/7 cable
  • Power & Distance
    • Max Distance: Up to 100m over a single category cable
    • Power Input: DC 12V (locked connector), 1 per unit
    • Power over Cable (PoC): Supported
  • General/Physical
    • Housing: Metal enclosure
    • Dimensions (W x D x H, each unit): 89.2 x 63 x 22 mm
    • Weight: 175g (Local/HDM-ELC) / 183g (Remote/HDM-ERC)
  • What's in the Box
    • 1x HDM-ELC Local (Transmitter) Unit
    • 1x HDM-ERC Remote (Receiver) Unit
    • 2x DC 12V Power Adapters (locked connector)
    • 1x HDMI Cable (1.2m)
    • IR Blaster Cable + IR Receiver Cable
    • RS-232 Terminal Blocks
    • Mounting Screws & Foot Pads
    • User Manual

    • Download User Manual
