  3. Grandview GPSC Series Motorized Projector Lift (X-Arm)
By Grandview

Grandview GPSC Series Motorized Projector Lift (X-Arm)

Enquire for price

The GPSC Series is an ultra-thin X-arm projector lift for small and medium projectors, designed for hidden installation above the ceiling with overload protection. Six models offer travel lengths from 500 mm to 1500 mm, with dry contact and wireless control.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "Grandview GPSC Series Motorized Projector Lift (X-Arm)".
Total: MYR 0.00
SKU: GPSC
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
Grandview GPSC Series Motorized Projector Lift
Enquire for price

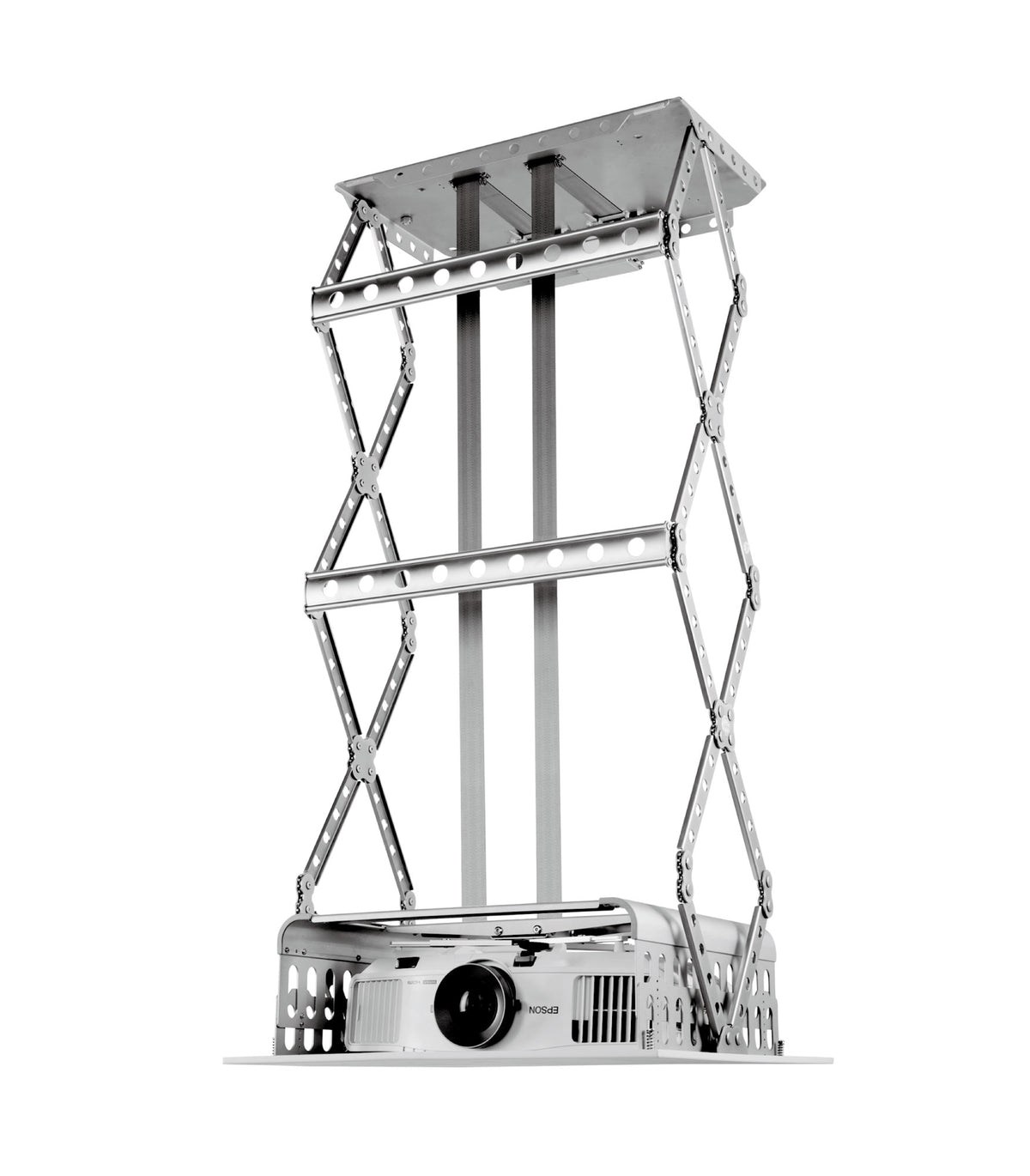

  • An ultra-thin X-arm projector lift for small and medium projectors, designed to sit hidden above the ceiling.

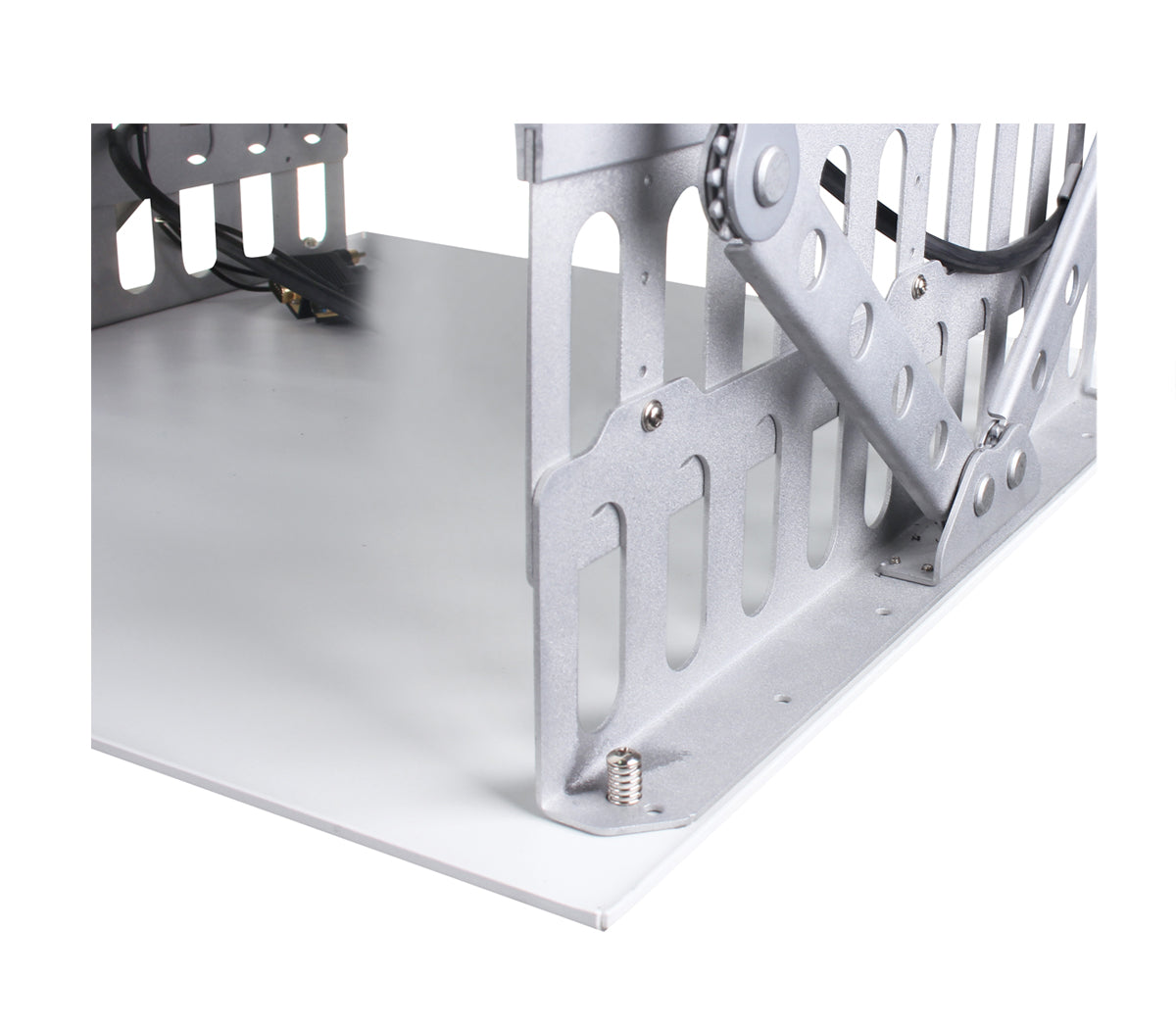

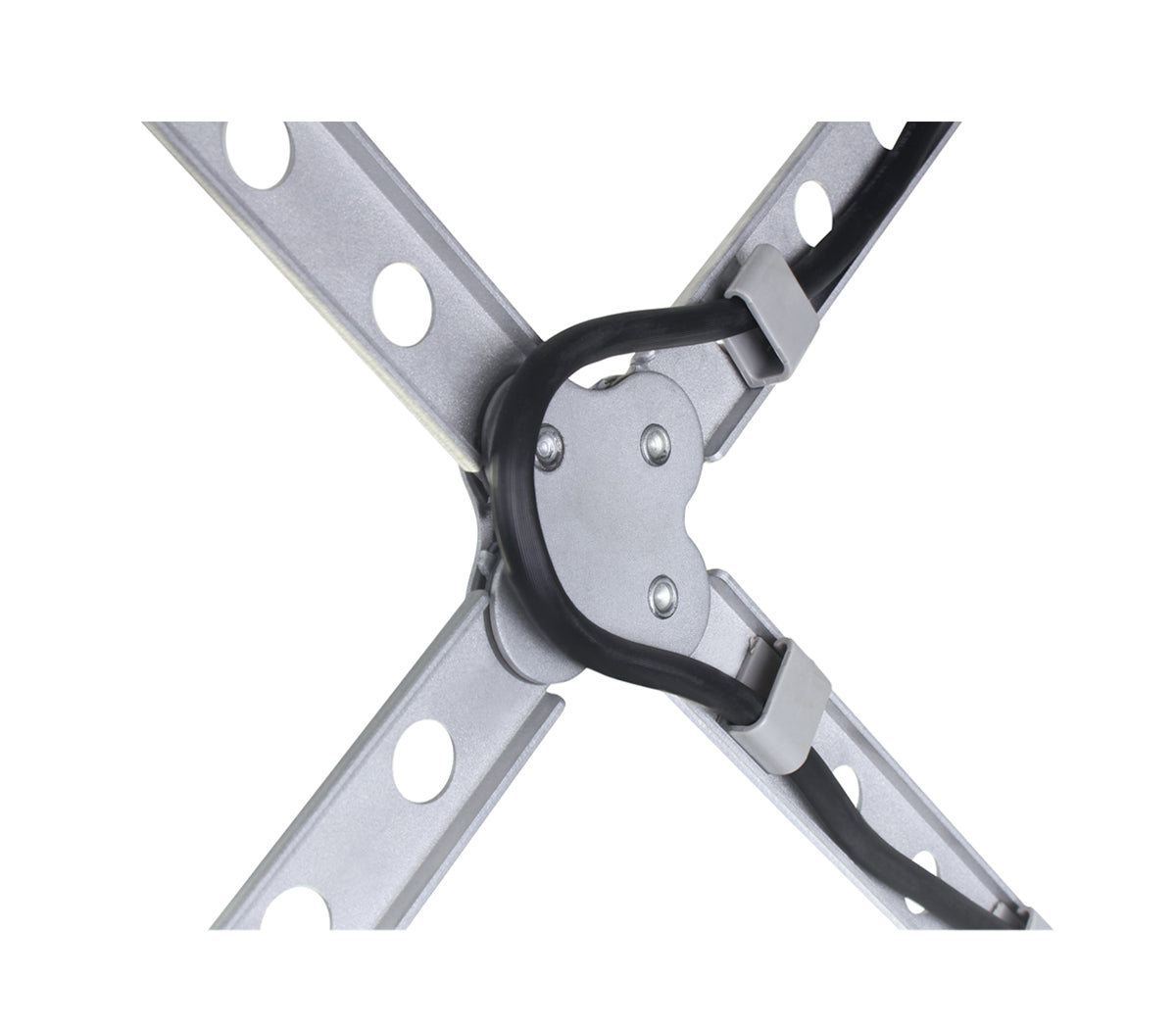

  • Ultra-Thin X-Arm DesignA slim X-arm mechanism keeps the lift compact so it can be concealed in the ceiling void.
  • Overload ProtectionBuilt-in overload protection safeguards the motor and projector.
  • Precise PositioningPositioning precision of less than 2 mm.
  • Flexible ControlDry contact and wireless RF control.

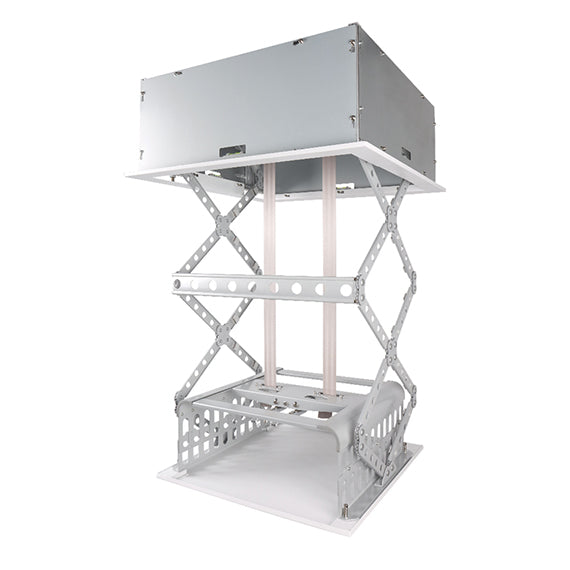

  • B Models (max projector 480×440×180 mm)
    • GPSC 5015B: travel 1500 mm · dimensions 580×580×340 mm · net weight 28.6 kg · max load 10 kg · packing 670×440×680 mm
    • GPSC 5010B: travel 1000 mm · dimensions 580×580×255 mm · net weight 27.2 kg · max load 12 kg · packing 670×405×680 mm
    • GPSC 5005B: travel 500 mm · dimensions 580×580×255 mm · net weight 23.8 kg · max load 15 kg · packing 670×405×680 mm

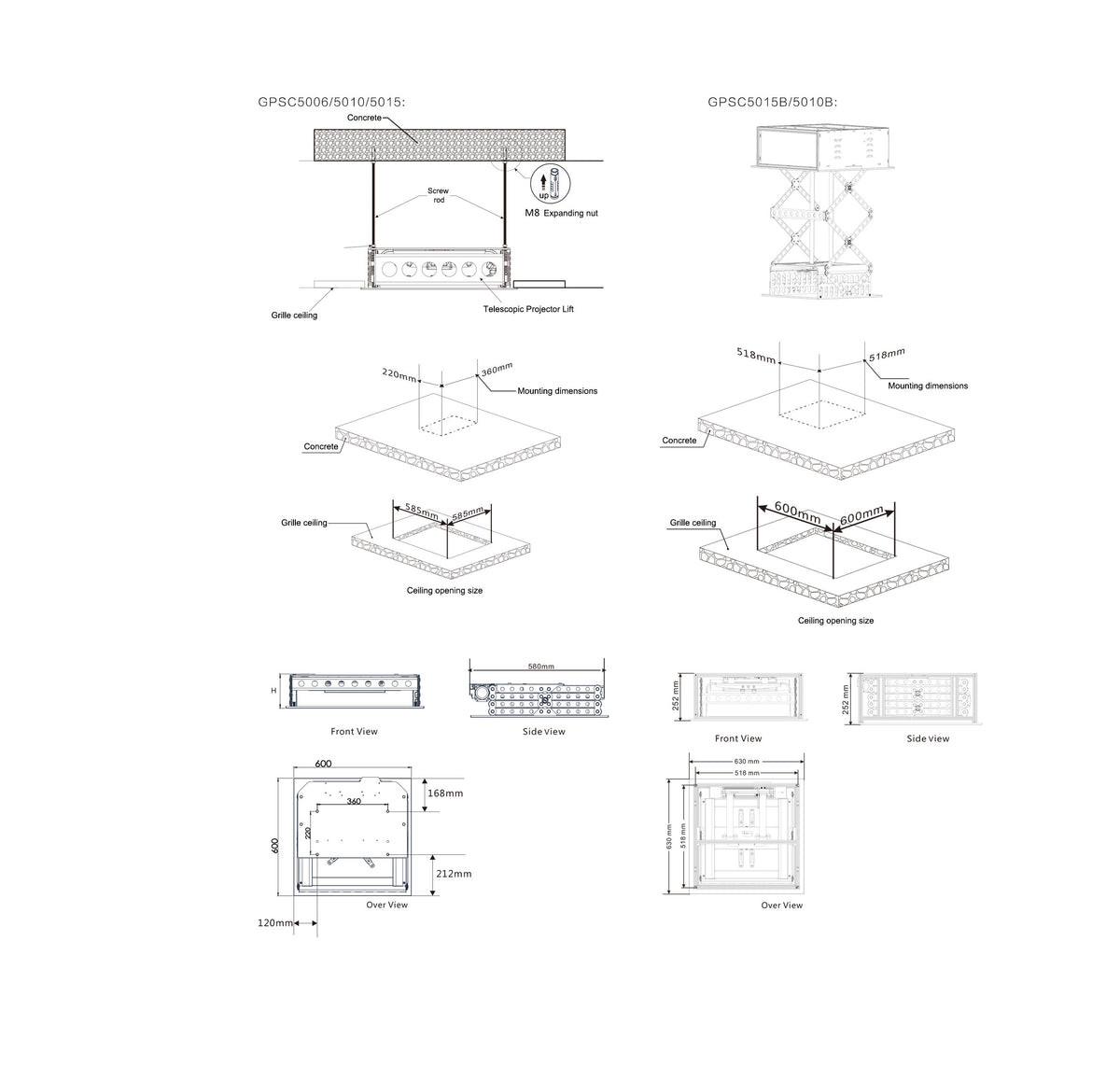

    • Jib attachment W340×D560 mm · decorative plate 630×630 mm · ceiling opening 600×600 mm
  • Standard Models (max projector 470×480×160 mm)
    • GPSC 5015: travel 1500 mm · dimensions 600×600×305 mm · net weight 24.4 kg · max load 10 kg · packing 650×410×640 mm
    • GPSC 5010: travel 1000 mm · dimensions 600×600×240 mm · net weight 21.8 kg · max load 12 kg · packing 650×365×640 mm
    • GPSC 5006: travel 600 mm · dimensions 600×600×180 mm · net weight 19.4 kg · max load 15 kg · packing 650×295×640 mm
    • Jib attachment W360×D220 mm · decorative plate 600×600 mm · ceiling opening 590×590 mm
  • Performance
    • Power: 145 W
    • Voltage: 220V / 110V
    • Positioning precision: less than 2 mm
    • Noise: ≤55 dB
    • Dry contact and wireless control
  • What's in the Box
    • GPSC Series projector lift
    • Nut
    • Screw rod
    • Screw package

    • Download Brochure (PDF)

    Download User Manual

    More manuals & downloads

    GPSC 5005B/5010B/5015B Instruction (PDF)

    GPSC 5006B/5010B/5015B Catalog (PDF)

    Control options

    • Wireless RF
