Grandview GPCK-ME Series Motorized Projector Lift

Name: Grandview GPCK-ME Series Motorized Projector Lift
Brand: Grandview
SKU: GPCK-ME
Availability: InStock

Enquire for price

Contact us for better pricing

The GPCK-ME Series is a ceiling projector lift for meeting rooms, multimedia classrooms and training rooms. Thirteen models across the standard, P and E series cover travel lengths from 500 mm to 4000 mm and a range of projector sizes and loads, with in-line switch and external RF control.

Total: MYR 0.00

Chat with us for quick check stock availability

Submit Payment

SKU: GPCK-ME

Tags:

Collections:

Fast Nationwide ShippingFree shipping over RM500.

100% Genuine ProductsWe only sell authentic, certified electronics.

Free Tech SupportHelp & troubleshooting 24/7

Grandview GPCK-ME Series Motorized Projector Lift

Enquire for price

A ceiling projector lift for meeting rooms, multimedia classrooms and training rooms, offered in standard, P and E series.

Three Series, Thirteen ModelsStandard (500–4000), P (500P–3000P) and E (1000E–4000E) models cover a wide range of travel lengths, projector sizes and loads.

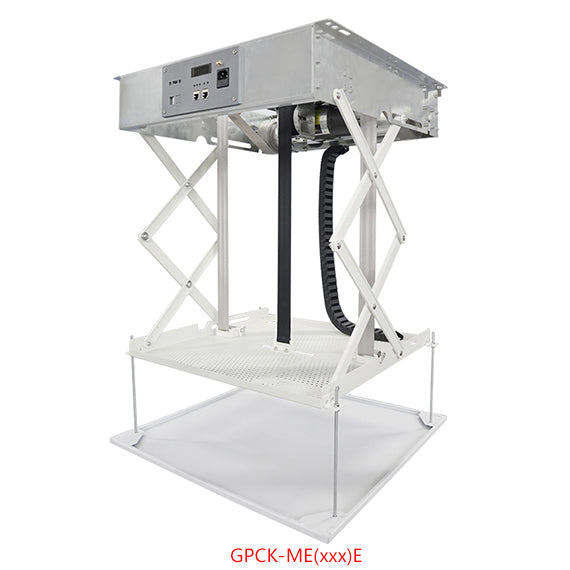

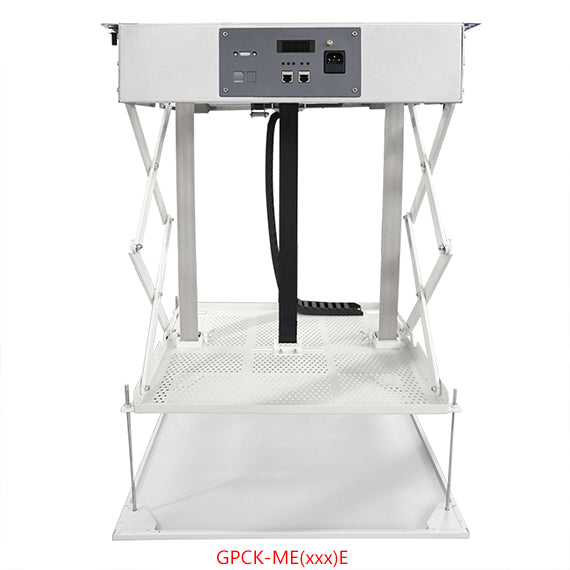

Heavy-Duty E SeriesE models carry up to 40 kg and include dry contact, RS485 and wireless control as standard.

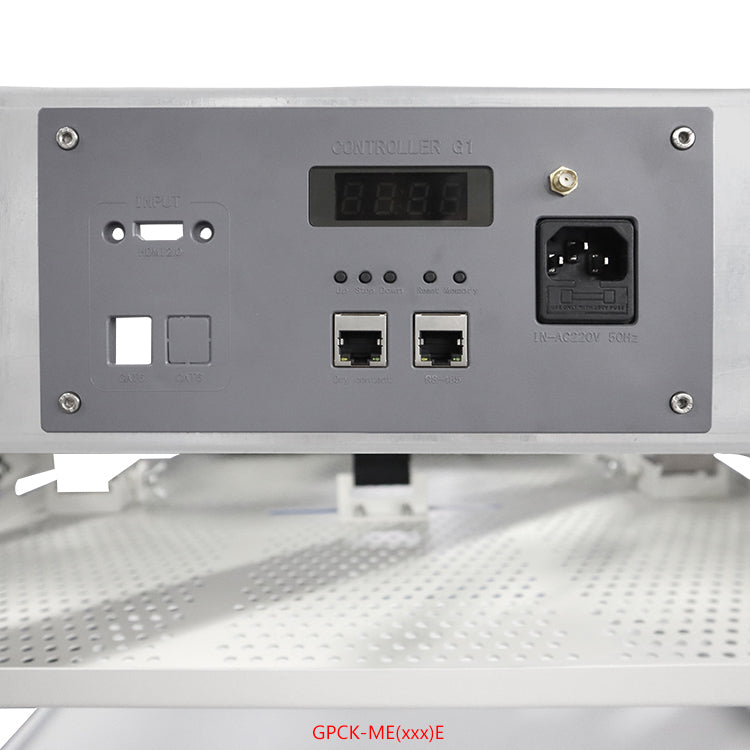

Flexible ControlControl by in-line switch or external RF control. Dry contact, RS485 and wireless are optional on the standard and P series.

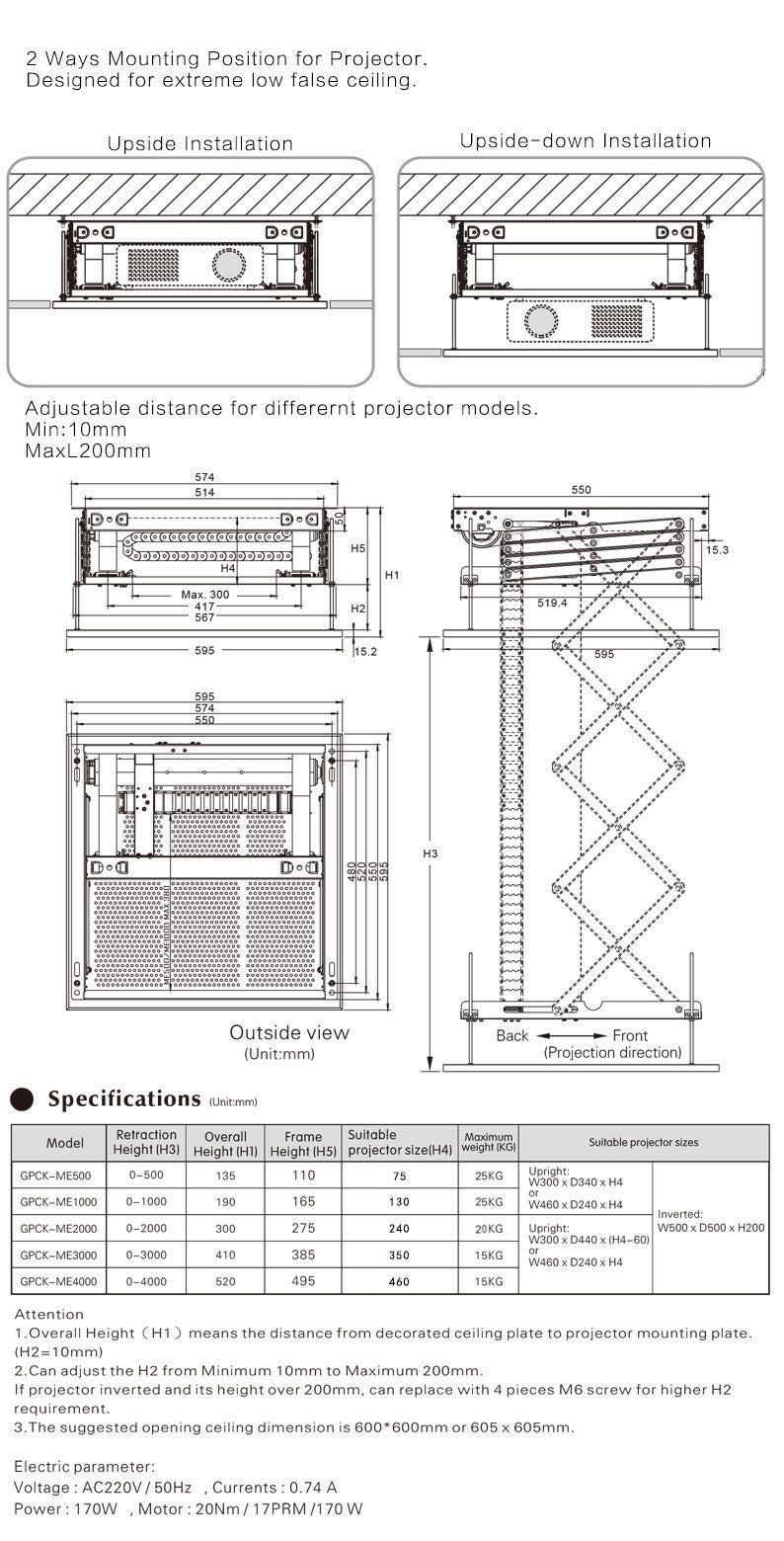

Standard Series (max projector 460×460×240 mm · 170 W)

GPCK-ME 500: travel 500 mm · dimensions 590×590×135 mm · net weight 15.3 kg · max load 25 kg · required opening height 435 mm · ceiling opening 600×600 mm · packing 635×635×205 mm
GPCK-ME 1000: travel 1000 mm · dimensions 590×590×190 mm · net weight 17 kg · max load 25 kg · required opening height 490 mm · ceiling opening 600×600 mm · packing 635×635×270 mm
GPCK-ME 2000: travel 2000 mm · dimensions 590×590×300 mm · net weight 19 kg · max load 20 kg · required opening height 600 mm · ceiling opening 600×600 mm · packing 635×635×430 mm
GPCK-ME 3000: travel 3000 mm · dimensions 590×590×410 mm · net weight 25 kg · max load 15 kg · required opening height 710 mm · ceiling opening 600×600 mm · packing 635×635×480 mm
GPCK-ME 4000: travel 4000 mm · dimensions 590×590×520 mm · net weight 32 kg · max load 15 kg · required opening height 820 mm · ceiling opening 600×600 mm · packing 635×635×580 mm

P Series (max projector 600×600×240 mm · 170 W)

GPCK-ME 500P: travel 500 mm · dimensions 695×695×135 mm · net weight 17.3 kg · max load 25 kg · required opening height 435 mm · ceiling opening 705×705 mm · packing 720×720×215 mm
GPCK-ME 1000P: travel 1000 mm · dimensions 695×695×190 mm · net weight 19 kg · max load 25 kg · required opening height 435 mm · ceiling opening 705×705 mm · packing 720×720×280 mm
GPCK-ME 2000P: travel 2000 mm · dimensions 695×695×300 mm · net weight 21 kg · max load 25 kg · required opening height 600 mm · ceiling opening 705×705 mm · packing 720×720×440 mm
GPCK-ME 3000P: travel 3000 mm · dimensions 695×695×410 mm · net weight 27 kg · max load 25 kg · required opening height 710 mm · ceiling opening 705×705 mm · packing 720×720×490 mm

E Series (max projector 600×600×240 mm · 60 W · max load 40 kg)

GPCK-ME 1000E: travel 1000 mm · dimensions 695×695×250 mm · net weight 27 kg · required opening height 550 mm · ceiling opening 705×705 mm
GPCK-ME 2000E: travel 2000 mm · dimensions 695×695×360 mm · net weight 31 kg · required opening height 660 mm · ceiling opening 705×705 mm
GPCK-ME 3000E: travel 3000 mm · dimensions 695×695×470 mm · net weight 35 kg · required opening height 770 mm · ceiling opening 705×705 mm
GPCK-ME 4000E: travel 4000 mm · dimensions 695×695×580 mm · net weight 39 kg · required opening height 880 mm · ceiling opening 705×705 mm

Common
