Grandview GPAD/AC 64 Series Telescopic Projector Lift

Enquire for price

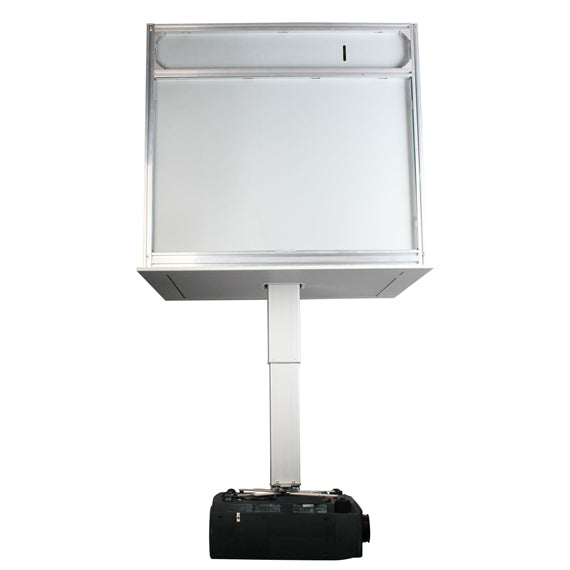

The GPAD/AC 64 Series is a single-pole telescopic ceiling projector lift that accommodates the majority of engineering projectors up to 20,000 lumens, with a rated load of 40 kg. Guide-pillar lifting with a precision screw drive, multi-point lifting and multiple anti-fall protections keep movement stable. Ten travel lengths from 500 mm to 5000 mm are available, with RF, dry contact and RS485 control.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "Grandview GPAD/AC 64 Series Telescopic Projector Lift".
Total: MYR 0.00
SKU: GPAD/AC 64
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
Grandview GPAD/AC 64 Series Telescopic Projector Lift
Enquire for price

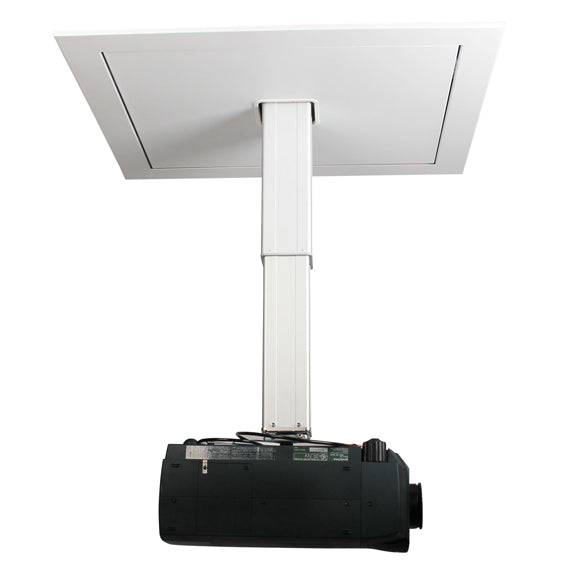

  • A single-pole telescopic ceiling lift that carries most engineering projectors up to 20,000 lumens, with simple lines that suit a wide range of ceiling finishes.
  • Stable Guide-Pillar LiftingGuide-pillar lifting with a built-in precision screw drive and multi-point lifting keeps the projector steady throughout its travel.
  • Patented Cable ManagementThe patented wire-collection design allows the lift to raise and lower without a load.
  • Multiple Safety ProtectionsAnti-fall protection, a fully enclosed aluminium alloy frame and an industrial long-running motor give safe, durable operation.
  • High-Precision PositioningA multi-section aluminium alloy square tube, double-opening inner door and high-precision encoder deliver positioning accuracy of ≤1 mm, with RF and RS485 positioning.
  • Built-In CablesIncludes projector power cable ×1, HDMI 2.0 ×1 and Category 6 network cable ×1 (other requirements can be customised).
  • Universal Projector MountUniversal mounting claws are adjustable through multiple angles to suit most projectors.
  • Flexible ControlControl by RF remote, weak-current dry contact or RS485 code.
  • Models
    • GPAD/AC 6450 (II): travel 5000 mm · product dimensions 975×825×1652 mm · net weight 160 kg · packing 945×1802×1095 mm
    • GPAD/AC 6445 (II): travel 4500 mm · product dimensions 975×825×1552 mm · net weight 155 kg · packing 945×1702×1095 mm
    • GPAD/AC 6440 (II): travel 4000 mm · product dimensions 975×825×1452 mm · net weight 150 kg · packing 945×1602×1095 mm
    • GPAD/AC 6435: travel 3500 mm · product dimensions 975×825×1500 mm · net weight 145 kg · packing 945×1650×1095 mm
    • GPAD/AC 6430: travel 3000 mm · product dimensions 975×825×1375 mm · net weight 140 kg · packing 945×1525×1095 mm
    • GPAD/AC 6425: travel 2500 mm · product dimensions 975×825×1250 mm · net weight 135 kg · packing 945×1400×1095 mm
    • GPAD/AC 6420: travel 2000 mm · product dimensions 975×825×1125 mm · net weight 130 kg · packing 945×1275×1095 mm
    • GPAD/AC 6415: travel 1500 mm · product dimensions 975×825×1000 mm · net weight 125 kg · packing 945×1150×1095 mm
    • GPAD/AC 6410: travel 1000 mm · product dimensions 975×825×875 mm · net weight 120 kg · packing 945×1025×1095 mm
    • GPAD/AC 6405: travel 500 mm · product dimensions 975×825×750 mm · net weight 100 kg · packing 945×900×1095 mm
  • Load & Projector Size

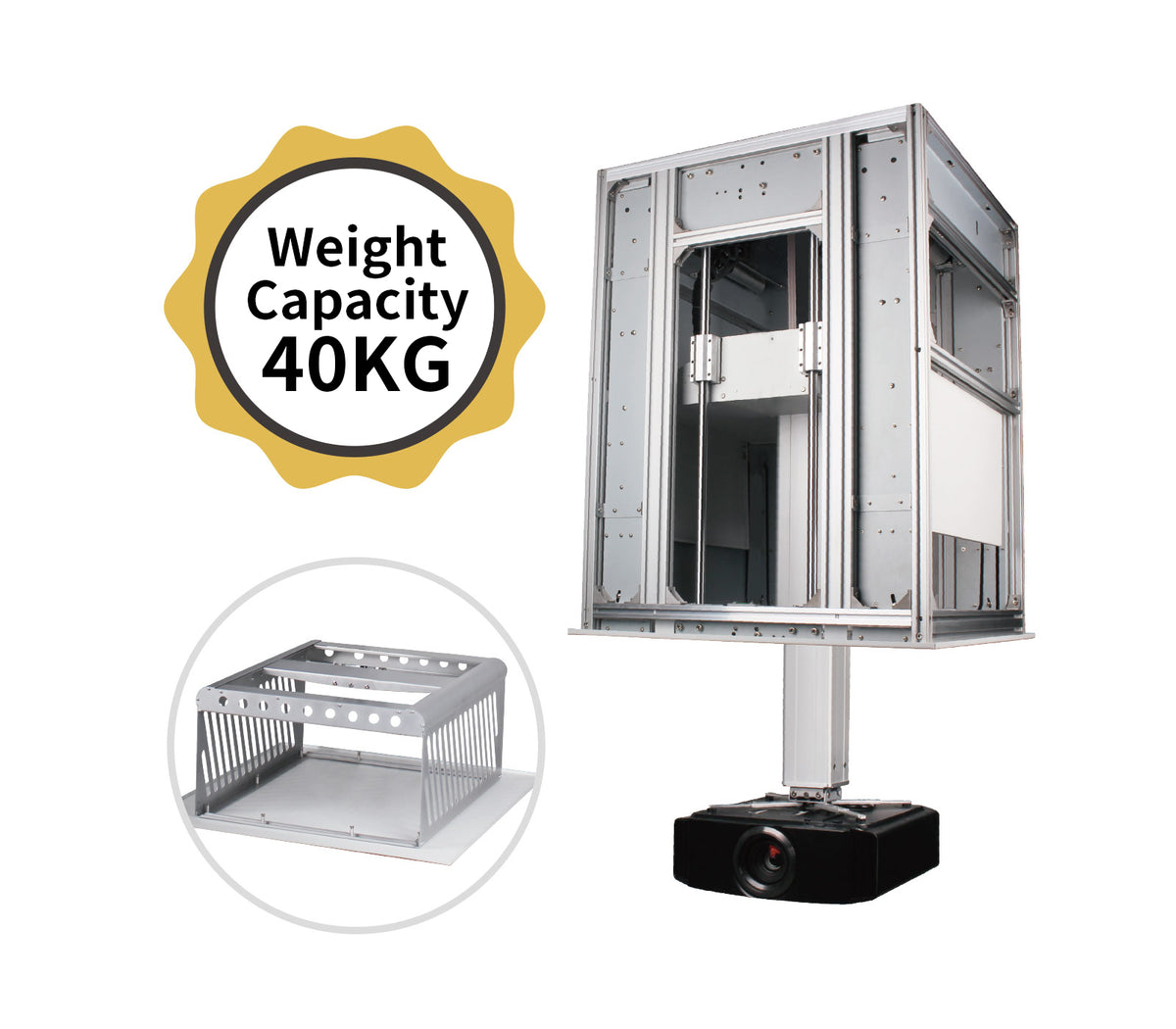

    • Max load: 40 kg
    • Max projector dimensions (with cables and lens): 730×620×280 mm
    • Angle adjustment: 1° / 8° / 4° / 4° (up / down / left / right)

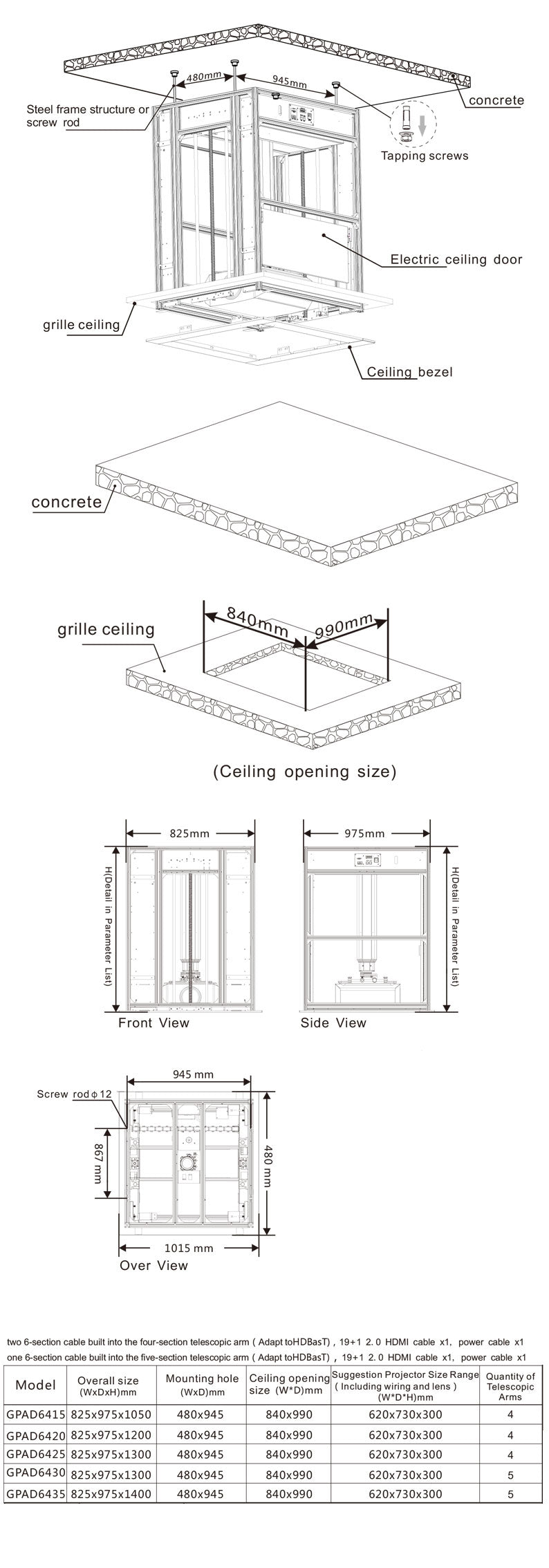

  • Installation
    • Jib attachment: 480×945 mm
    • Decorative plate: 867×1015 mm
    • Ceiling opening: 840×990 mm
    • Required ceiling opening height: greater than H+50 mm
  • Performance
    • Power: 100 W
    • Voltage: 220V / 110V
    • Positioning precision: less than 2 mm
    • Noise: ≤55 dB

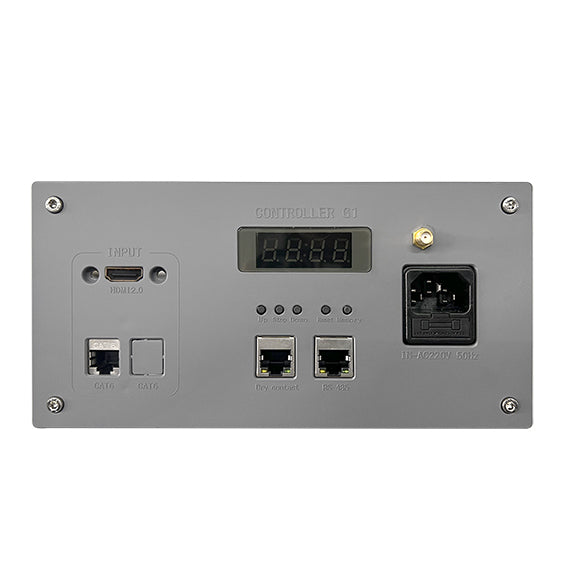

  • Control & Cables
    • Dry contact: yes
    • Wireless control: yes
    • Built-in cables: Category 6 network cable ×1, HDMI 2.0 ×1, power cord ×1
  • What's in the Box
    • GPAD/AC 64 Series projector lift
    • RF remote control
    • Screws: 4×25, 5×25 and 6×25 (4 pcs each)
    • Gasket
    • Limit adjustment tool
    • Power line

    • Download Brochure (PDF)

    Download User Manual

    More manuals & downloads

    GPAD/AC 64 Drawing (Toptu) (PDF)

    Control options

    • Wireless RF
    • Wall Switch
    • RS485
