Epson EB-W56S WXGA Short Throw Portable Projector

RM3,884.00
RM3,884.00

This lightweight, portable short throw projector is designed for convenient use in compact spaces or installations requiring minimal distance. It offers flexible connectivity options, including optional wireless functionality. The device features automatic power-up when a signal cable is connected, simplifying setup. Equipped with a robust 16W speaker, it delivers clear, wide-range audio coverage. Additionally, the projector provides durable performance, allowing for instant shut-off simply by unplugging, ensuring efficient cleanup and ease of use.
Total: MYR 3,884.00
Reference Number:Epson006
SKU: W56S
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
EB-W56S
RM3,884.00
RM3,884.00
  • A compact, short-throw projector built for flexible use across boardrooms and classrooms — the EB-W56S delivers a large, bright image from close range, and its light weight makes it easy to move between rooms whenever you need it.
  • WXGA ResolutionDisplays clear, crisp visuals with a high resolution that holds up well even on large screen sizes.
  • Short-Throw, Portable DesignProject a large image up to 300" from close range thanks to a 0.6:1 throw ratio, and move it easily between rooms at just 3.1kg.
  • Easy Maintenance, Longer Lamp LifeLamp lasts up to 10,000–17,000 hours in ECO mode, cutting replacement frequency and lowering total cost of ownership.
  • Flexible ConnectivityStandard Ethernet port plus 2x HDMI, with optional wireless via the ELPAP11 module and support for Epson's iProjection app.
  • Split Screen CapabilityShow up to 2 different images from 2 different devices at the same time, side by side.
  • Secure Enterprise WirelessWPA2/WPA3-Enterprise support lets the projector connect safely to a business wireless network.
  • Built-in 16W SpeakerPowerful integrated audio without needing external speakers.
  • Technology
    • RGB liquid crystal shutter projection system (3LCD)
    • LCD Lens Size: 0.59″ (C2 Fine)

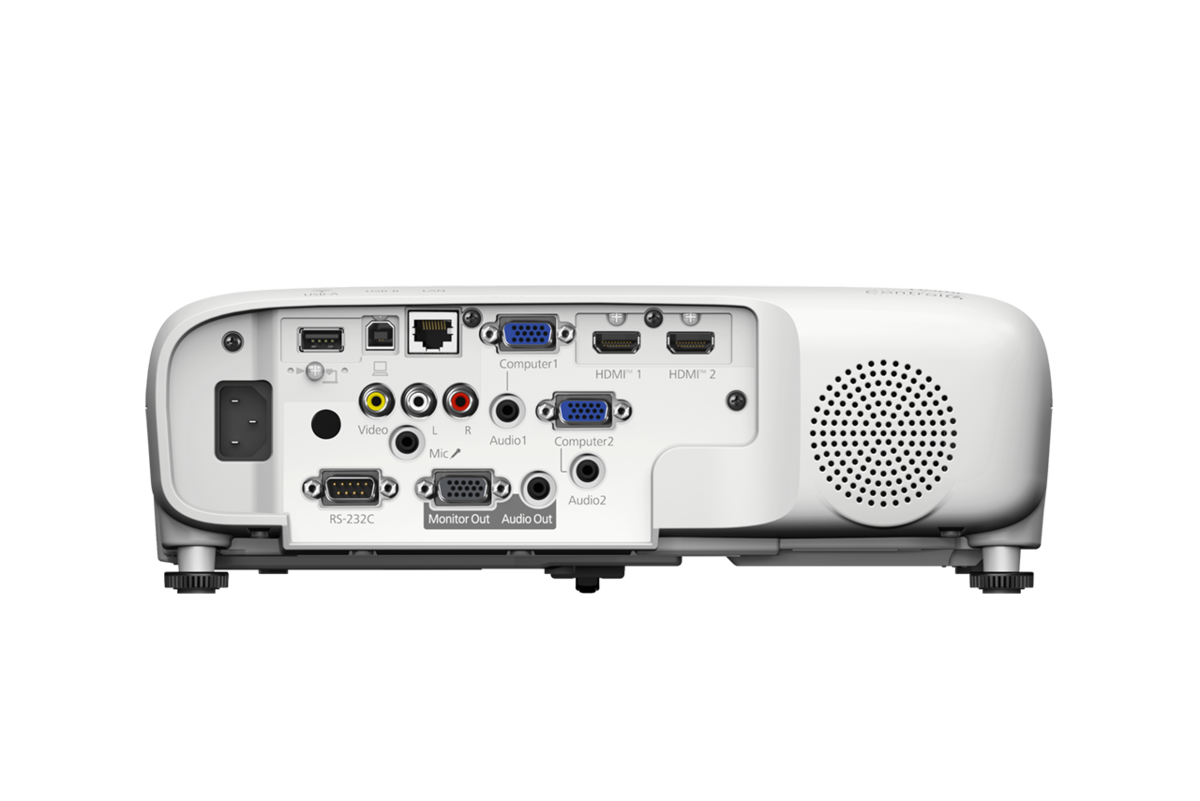

  • Connectivity
    • Internal Speaker: Monaural 16W
    • Analog Input: D-Sub 15pin x2
    • Composite Input: RCA x1
    • Digital Input: HDMI x2 (HDCP 1.4)
    • Analog Output: D-Sub 15pin x1
    • Audio Input: 2x RCA, 2x Stereo Mini
    • Audio Output: Stereo Mini x1
    • Mic Input: Stereo Mini x1
    • Control: RS232C x1
    • USB Type A: Wireless LAN, 5V/2A, PC free, digital camera
    • USB Type B: Firmware update, copy OSD settings, project computer image
    • Optional Wireless: ELPAP11
    • Start-Up Period: up to 7 seconds; Warm-up: 30 seconds
    • Cool Down Period: Instant Off
    • Direct Power On/Off: Yes
    • Dimensions (excl. feet, W x H x D): 309 x 90 x 282 mm
    • Weight: approx. 3.1 kg
    • Air Filter Type: Electrostatic Filter
    • Air Filter Model: ELPAF54
    • Maintenance Cycle: 10,000 / 20,000 hours
    • Fan Noise (Normal/Eco): 38dB / 28dB
    • Power Supply: 100–240V AC ±10%, 50/60Hz
  • Projection Lens
    • Throw Ratio: 0.60–0.81:1
    • Zoom Ratio: 1–1.35 (Digital Zoom)
    • F-Number: 1.8
    • Focal Length: 7.8mm
    • No optical zoom / manual focus
  • Image
    • Brightness (White/Colour, Normal/Eco): 3700 / 2000 lm
    • Native Resolution: WXGA (1280 x 800)
    • Aspect Ratio: 16:10
    • Contrast Ratio: 16,000:1
    • Lamp Type / Model: 210W UHE / ELPLP97
    • Lamp Life (Normal/Normal/Eco): 6,500 / 10,000 / 17,000 hours
    • Keystone: Auto / Manual Vertical ±15°, Manual Horizontal ±15°
    • Screen Size (Projected Distance): Tele 37″–222″ (0.64–3.94m); Wide 50″–300″ (0.64–3.94m)
    • Geometric Correction: Yes

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's fixed lens throw ratio (0.6:1).

    —
    —

    Fixed lens (no optical zoom, manual focus). Screen size changes only by physically moving the projector closer to or further from the screen, at a fixed 0.6:1 throw ratio. This model also offers up to 1.4x digital zoom to shrink the image further at a given distance, but digital zoom reduces image quality and isn't reflected in the figures above.

  • What's in the Box
    • Power cable (1.8m)
    • HDMI cable (1.8m)
    • Remote control with 2x AA batteries
    • Quick guide & user manual (CD)
  • Extended Warranty (Epson CoverPlus)

    • Download Brochure (PDF)

    ELPAF54 Air Filter
    ELPAF54 Air Filter
    What is the EB-W56S best suited for?
    The EB-W56S is a short-throw projector that can sit close to the screen while still filling it — useful in tighter rooms.
    What resolution does the EB-W56S project at?
    The EB-W56S's native resolution is WXGA.
    How far from the screen does the EB-W56S need to be placed?
    It has a throw ratio of 0.6–0.81:1 (fixed lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    Does the EB-W56S use a lamp or a laser light source?
    This model uses a traditional projector lamp, which is a wearable part — see the warranty question below for lamp coverage.
    What warranty comes with the EB-W56S?
    Includes a 2-year (24-month) carry-in warranty, plus a 1-year (or 1,000-hour) lamp warranty. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
    What are the standout features of the EB-W56S?
    A few highlights: a 0.6:1 throw ratio (a large image from very close range); a light body (approx. 3.1kg) that's easy to move between rooms; an Ethernet port plus 2x HDMI; WPA2/WPA3-Enterprise wireless security.
    How bright is the EB-W56S?
    The EB-W56S has brightness of 3,700 lm and a contrast ratio of 16,000:1.
    How long does the EB-W56S's light source last?
    It's rated for 6,500 hrs normal / up to 17,000 hrs in ECO mode.
