  3. Epson EB-U50 WUXGA Digital Signage Projector
By Epson

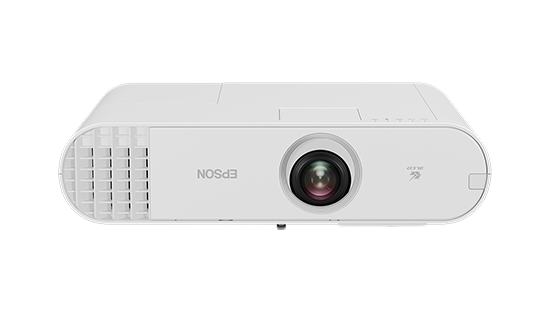

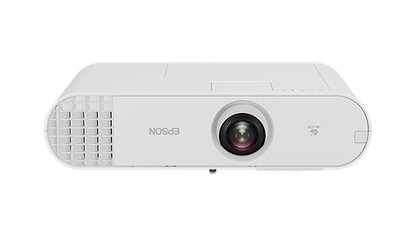

Epson EB-U50 WUXGA Digital Signage Projector

RM5,459.00
RM5,459.00

This digital signage projector is built for creating dynamic, eye-catching visual displays in commercial environments. Its high brightness ensures visibility even in well-lit spaces, making it well suited to retail, hospitality, and public-facing installations.
Total: MYR 5,459.00
Reference Number:Epson030
SKU: E0024
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
EB-U50
RM5,459.00
RM5,459.00
  • A white-bodied digital signage projector designed to blend into retail, gallery, and museum interiors — the EB-U50 pairs bright WUXGA imagery with a compact, inconspicuous design and enterprise-grade security for extended, always-on display use.
  • Inconspicuous White DesignA discreet white housing built to blend into retail, gallery, and museum spaces rather than look like a typical AV projector.
  • WUXGA High ResolutionNative 1920 x 1200 resolution for sharp text, graphics, and imagery on large signage displays.
  • Flexible InstallationCeiling-mounted, desktop, or lighting-track positioning, with 1.2x zoom to fit the screen.
  • Long-Life Light SourceUp to 17,000 hours in Eco mode reduces maintenance visits for continuous signage operation.
  • Enterprise SecurityPassword protection, Kensington lock, and wireless LAN unit lock help prevent tampering or theft in public spaces.
  • Wired & Wireless NetworkingRJ-45 LAN and wireless LAN support centralised content management across multiple displays.
  • Compact & LightweightAt approximately 3.1kg, it mounts discreetly in tight retail and gallery spaces.
  • Technology
    • 3LCD projection system
    • LCD Panel Size: 0.67″
  • Image
    • Native Resolution: WUXGA (1920 x 1200)
    • Aspect Ratio: 16:10
    • Brightness (Colour/White, Normal): 3,700 lm
    • Brightness (Eco): 2,400 lm
    • Contrast Ratio: 16,000:1 (Auto Iris On)
    • Light Source: 200W UHE Lamp
    • Lamp Life: Up to 10,000 hrs (Normal) / 17,000 hrs (Eco)
  • Projection Lens
    • Throw Ratio: 1.38–1.68:1
    • Zoom Ratio: 1.2x Optical (Manual)
    • Keystone Correction: ±30° Vertical/Horizontal
    • Screen Size: 30″–300″

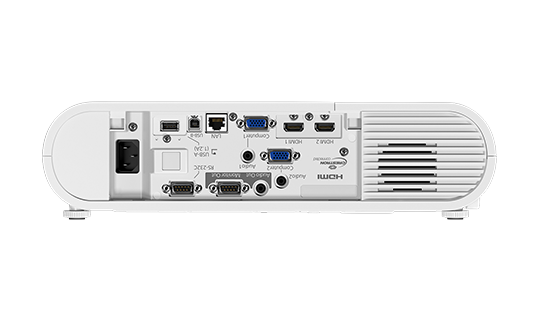

  • Connectivity
    • Digital Input: HDMI x2
    • Analog Input: D-Sub 15-pin x2
    • USB Type-A / Type-B: Yes
    • Network: LAN (RJ-45)
    • Wireless LAN: 802.11b/g/n
    • Control I/O: RS-232C
    • Audio: Stereo In x2, Out x1
    • Internal Speaker: 5W
    • Security: Password Protection, Kensington Lock, Wireless LAN Unit Lock
  • General
    • Dimensions (D x W x H): 248 x 364 x 87 mm
    • Weight: Approx. 3.1 kg
    • Power Consumption: 285W (Normal) / 218W (Eco) / 2.0W–0.3W (Standby)
    • Fan Noise (Normal/Eco): 37dB(A) / 28dB(A)

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's actual zoom lens throw ratio (1.38–1.68:1).

    —
    —

    Figures are estimates based on manual zoom range and a WUXGA (85% width-to-diagonal) aspect ratio. Confirm exact placement with Epson's official projection calculator or a dealer before installation.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)

    • Download Brochure (PDF)

    Download User Manual

    ELPAF59 Air Filter
    ELPAF59 Air Filter
    ELPAP10 Wireless LAN Unit
    ELPAP10 Wireless LAN Unit
    ELPMB60W Ceiling Mount (White)
    ELPMB60W Ceiling Mount (White)
    What is the EB-U50 best suited for?
    The EB-U50 is a compact signage-style display projector, positioned for always-on retail and branded visual displays rather than a typical meeting-room setup.
    What resolution does the EB-U50 project at?
    The EB-U50's native resolution is WUXGA.
    How far from the screen does the EB-U50 need to be placed?
    It has a throw ratio of 1.38–1.68:1 (zoom lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    Does the EB-U50 use a lamp or a laser light source?
    This model uses a traditional projector lamp, which is a wearable part — see the warranty question below for lamp coverage.
    What warranty comes with the EB-U50?
    Includes a 2-year carry-in warranty (plus 3 extra months when registered), and a 1-year (or 1,000-hour) lamp warranty. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
