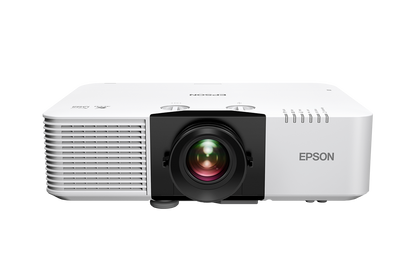

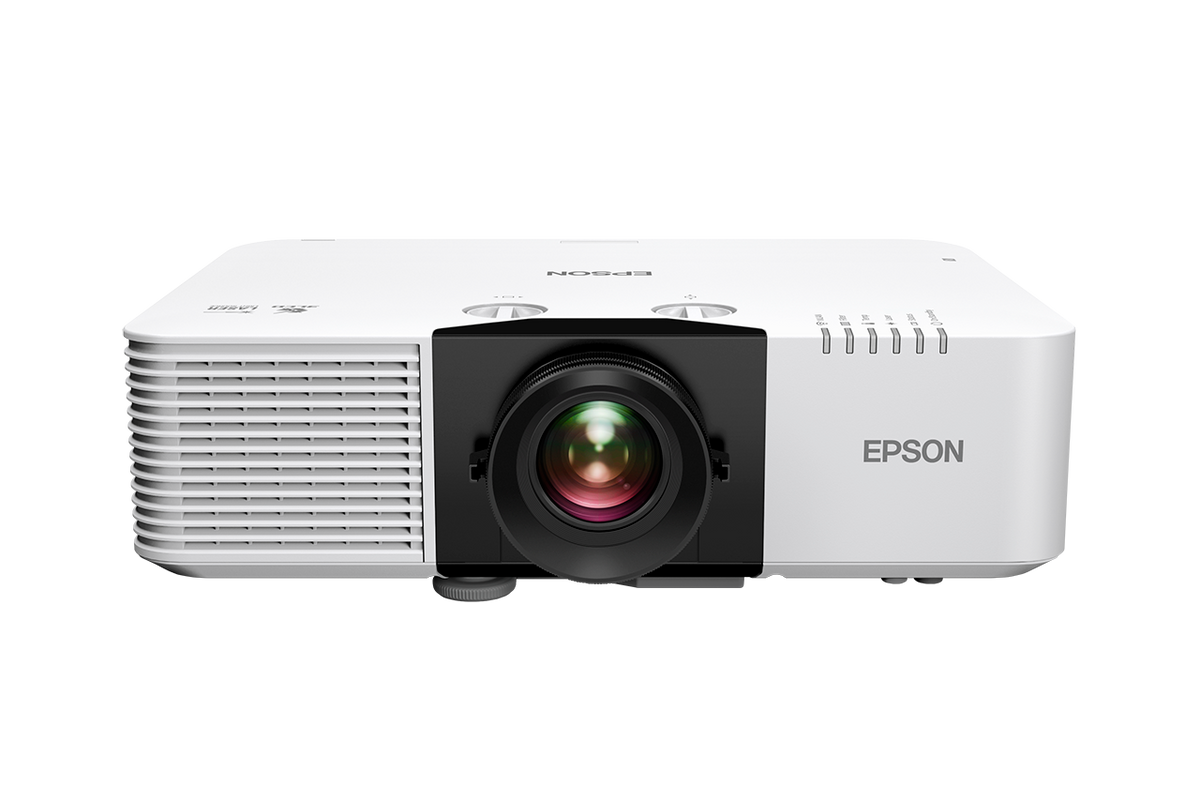

Epson EB-L690U WUXGA Laser Projector

RM19,949.00
RM19,949.00

A laser high-brightness projector with WUXGA resolution, built for large venues, auditoriums, boardrooms, and schools. The laser light source offers longer lifespan, steady brightness, fast on/off operation, and low maintenance, while a higher contrast ratio improves detail in visuals and video.
Total: MYR 19,949.00
Reference Number:Epson034
SKU: L690U
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
EB-L690U
RM19,949.00
RM19,949.00
  • A compact, high-brightness laser projector built for mid-sized meeting rooms, training rooms, and classrooms — the EB-L690U pairs true-to-life 3LCD colour with flexible installation and built-in wireless connectivity, so it fits into almost any room without extra hardware.
  • 3-Chip 3LCD TechnologyDelivers equal colour and white brightness for vivid, true-to-life images with no rainbow effect.
  • 6,500 Lumens BrightnessBright enough for well-lit rooms and larger presentation spaces without dimming the lights.
  • Laser Light SourceUp to 20,000 hours (Normal) or 30,000 hours (Eco) of virtually maintenance-free operation — no lamp replacements.
  • Flexible InstallationManual lens shift, 1.6x zoom, and geometric correction make it easy to fit the image to the screen — supports 360° projection for ceiling, floor, or portrait mounting.
  • Built-In Wireless & Screen MirroringWi-Fi, HDBaseT, AirPlay 2, Miracast and NFC tap-to-connect make it simple to present wirelessly from laptops, phones, and tablets.
  • Split Screen CapabilityShow two different sources side by side at the same time.
  • Remote Fleet ManagementSupports Epson Projector Management software and over-the-air firmware updates, ideal for multi-unit deployments across several rooms.
  • Technology
    • 3-chip 3LCD projection system
    • LCD Panel Size: 0.67" (C2 Fine)
  • Image
    • Native Resolution: WUXGA (1920 x 1200)
    • Aspect Ratio: 16:10
    • Brightness (Colour/White, Normal): 6,500 lm
    • Brightness (Economy): 4,550 lm
    • Contrast Ratio: Over 5,000,000:1
    • Light Source: Laser
    • Light Source Life: 20,000 hrs (Normal) / 30,000 hrs (Eco)
  • Projection Lens
    • Throw Ratio: 1.35–2.2:1
    • Zoom Ratio: 1–1.6x (Manual)
    • Lens Shift: Manual – Vertical ±50%, Horizontal ±20%
    • Keystone Correction: Manual Vertical/Horizontal ±30°
    • Screen Size: 50″–500″
    • Projection Distance: 1.4m–14.8m (Wide) / 2.4m–23.8m (Tele)

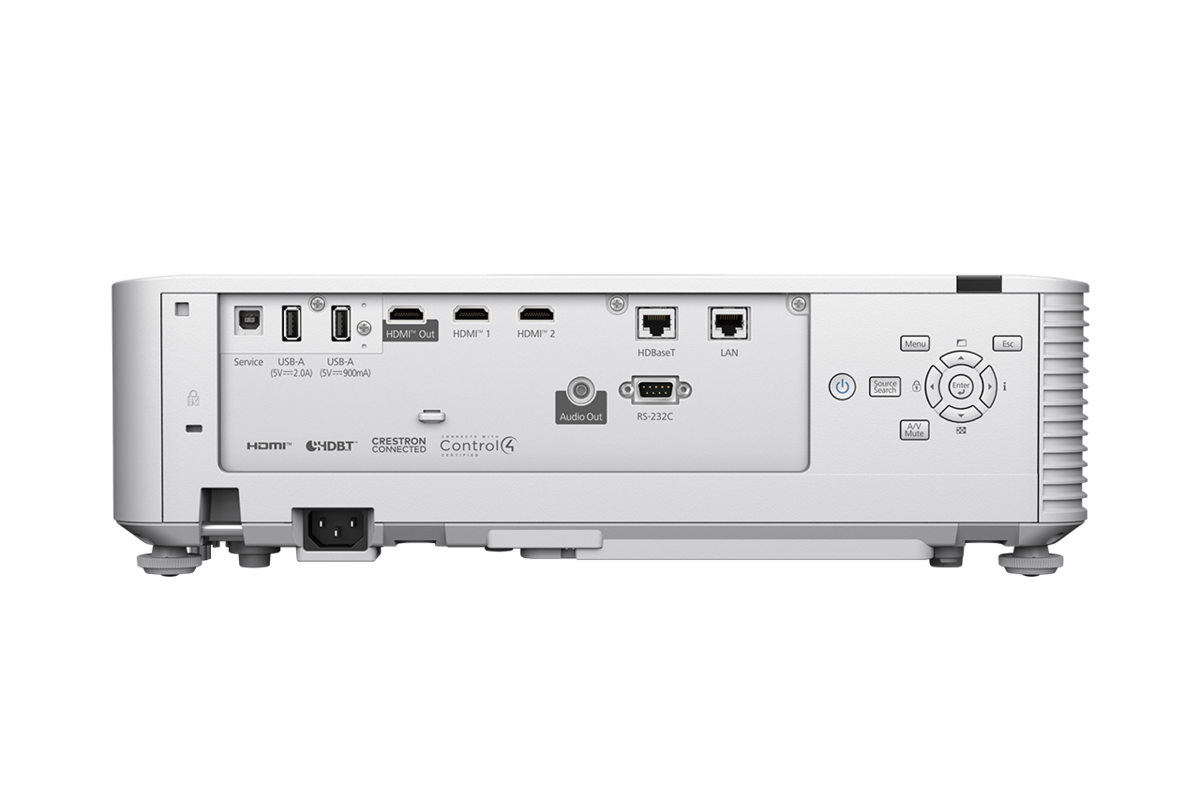

  • Connectivity
    • Digital Input: HDMI x2 (HDCP 2.3)
    • HDBaseT: Yes
    • USB Type-A: x2 (2.0)
    • Control I/O: RS-232C
    • Network: LAN (100/10 Base-T)
    • Wireless LAN: Built-in 802.11a/b/g/n/ac
    • Screen Mirroring: Apple AirPlay 2, Miracast
    • NFC: Yes (tap-to-connect setup)
    • Audio Output: Yes
    • Internal Speaker: 10W
  • General
    • Dimensions (W x D x H): 440 x 340 x 138 mm
    • Weight: 8.2 kg
    • Power Consumption: 336W (Normal) / 233W (Eco) / 0.4W (Standby)
    • Fan Noise (Normal/Eco): 32dB(A) / 25dB(A)

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's actual zoom lens throw ratio (1.35–2.2:1).

    —
    —

    Figures are estimates based on manual zoom range and a WUXGA (85% width-to-diagonal) aspect ratio. Confirm exact placement with Epson's official projection calculator or a dealer before installation.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)

    • Download Brochure (PDF)

    Download User Manual

    ELPDC21 Document Camera
    ELPDC21 Document Camera
    ELPEC01 HBR Camera
    ELPEC01 HBR Camera
    ELPAF65 Air Filter
    ELPAF65 Air Filter
    What is the EB-L690U best suited for?
    The EB-L690U is a mid-size meeting/training room projector, with enough throw-distance flexibility for typical conference rooms.
    What resolution does the EB-L690U project at?
    The EB-L690U's native resolution is WUXGA.
    How far from the screen does the EB-L690U need to be placed?
    It has a throw ratio of 1.35–2.2:1 (zoom lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    What warranty comes with the EB-L690U?
    Includes a 3-year carry-in warranty. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
