  3. Epson EB-L690SU WUXGA Laser Short-Zoom Projector
By Epson

Epson EB-L690SU WUXGA Laser Short-Zoom Projector

RM25,199.00
RM25,199.00

A laser high-brightness projector with WUXGA resolution and a semi-short zoom lens, built for large venues, auditoriums, boardrooms, and educational institutions. WUXGA resolution delivers detailed images ideal for presentations and multimedia content, while the laser light source offers a longer lifespan, steady brightness, fast start-up, and minimal maintenance.

Flexible mounting positions, a variety of input options, and optional wireless connectivity support diverse installations, and edge blending with multiple units enables seamless, large-scale images.
Total: MYR 25,199.00
Reference Number:Epson007
SKU: L690SU
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
EB-L690SU
RM25,199.00
RM25,199.00
  • A short-throw laser projector built for tight installation spaces — the EB-L690SU delivers a large, bright WUXGA image from close to the screen, making it ideal for compact classrooms, huddle rooms, and spaces where a long throw distance isn't available.
  • Short-Throw FlexibilityA 0.80–1.36:1 throw ratio lets you project a large image from very close to the screen, freeing up floor space and reducing shadow interference from presenters.
  • 6,200 Lumens BrightnessBright enough for well-lit rooms without dimming the lights.
  • Laser Light SourceUp to 20,000 hours (Normal) or 30,000 hours (Eco) of virtually maintenance-free operation — no lamp replacements.
  • 3-Chip 3LCD TechnologyDelivers equal colour and white brightness for vivid, true-to-life images with no rainbow effect.
  • Flexible InstallationManual lens shift and geometric correction make it easy to fit the image to the screen — supports 360° projection for ceiling, floor, or portrait mounting.
  • Built-In Wireless & Screen MirroringWi-Fi 6/6E, HDBaseT, AirPlay 2 and Miracast make it simple to present wirelessly from laptops, phones, and tablets.
  • Remote Fleet ManagementSupports Epson Projector Management software and over-the-air firmware updates, ideal for multi-unit deployments across several rooms.
  • Technology
    • 3-chip 3LCD projection system
    • LCD Panel Size: 0.67" (C2 Fine)
  • Image
    • Native Resolution: WUXGA (1920 x 1200)
    • Aspect Ratio: 16:10
    • Brightness (Colour/White, Normal): 6,200 lm
    • Contrast Ratio: Up to 5,000,000:1
    • Light Source: Laser
    • Light Source Life: 20,000 hrs (Normal) / 30,000 hrs (Eco)
  • Projection Lens
    • Type: Short-Throw Zoom Lens
    • Throw Ratio: 0.80–1.36:1
    • Zoom Ratio: 1–1.7x (Manual)
    • Lens Shift: Manual – Vertical ±50%, Horizontal ±20%
    • Keystone Correction: Manual Vertical/Horizontal ±30°
    • Screen Size: 60″–400″
    • Projection Distance: 1.8m–6.9m

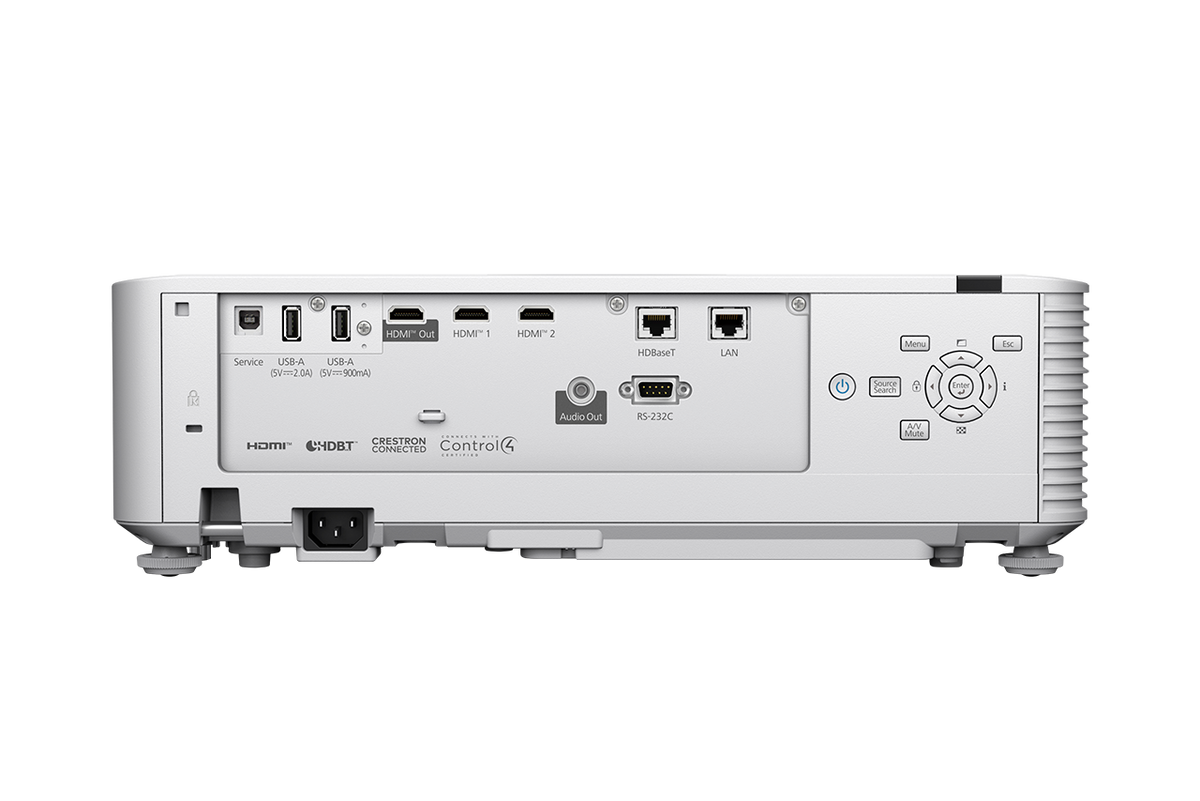

  • Connectivity
    • Digital Input: HDMI x2 (HDCP 2.3)
    • HDBaseT: Yes
    • USB Type-A: x2 (2.0)
    • Control I/O: RS-232C
    • Network: LAN (100/10 Base-T)
    • Wireless LAN: Built-in Wi-Fi 6/6E
    • Screen Mirroring: Apple AirPlay 2, Miracast
    • Audio Output: Yes
    • Internal Speaker: 10W
  • General
    • Dimensions (W x D x H): 440 x 362 x 151 mm
    • Weight: 10.0 kg
    • Power Consumption: 415W (Normal) / 305W (Eco) / 0.3W (Standby)
    • Fan Noise (Normal/Eco): 38dB(A) / 27dB(A)

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's actual zoom lens throw ratio (0.79–1.36:1).

    —
    —

    Figures are estimates based on manual zoom range and a WUXGA (85% width-to-diagonal) aspect ratio. Confirm exact placement with Epson's official projection calculator or a dealer before installation.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)

    • Download Brochure (PDF)

    Download User Manual

    ELPDC21 Document Camera
    ELPDC21 Document Camera
    ELPEC01 HBR Camera
    ELPEC01 HBR Camera
    ELPAF65 Air Filter
    ELPAF65 Air Filter
    What is the EB-L690SU best suited for?
    The EB-L690SU is a mid-size meeting/training room projector, with enough throw-distance flexibility for typical conference rooms.
    What resolution does the EB-L690SU project at?
    The EB-L690SU's native resolution is WUXGA.
    How far from the screen does the EB-L690SU need to be placed?
    It has a throw ratio of 0.79–1.36:1 (zoom lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    What warranty comes with the EB-L690SU?
    Includes a 3-year carry-in warranty. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
