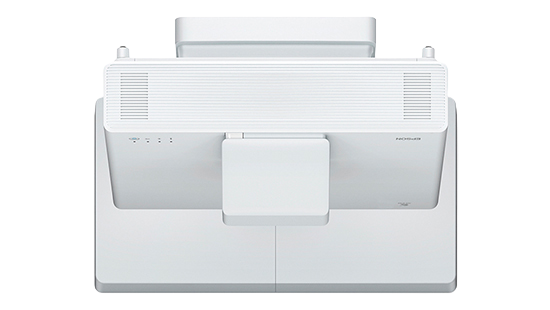

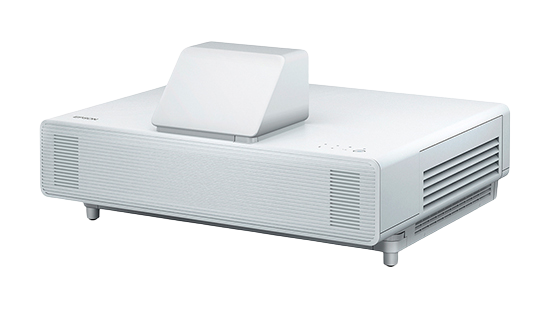

Epson EB-800F Full HD Laser Ultra Short Throw Projector

RM14,279.00
RM14,279.00

This ultra-short-throw (UST) light scene laser projector produces large, bright images from inches away from the projection surface, using advanced optics and lens technology. Ideal for retail setups, classrooms, and meeting rooms where space is limited, with built-in wireless connectivity for easy setup.
Total: MYR 14,279.00
Reference Number:Epson028
SKU: 800F
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
EB-800F
RM14,279.00
RM14,279.00
  • A compact ultra-short-throw laser projector built for signage, retail, and hospitality spaces — the EB-800F sits just centimetres from the wall to deliver a bright, Full HD-quality image up to 130″, with the flexibility to scale into multi-projector video walls.
  • Ultra-Short-Throw FlexibilityA 0.27–0.37:1 throw ratio projects up to a 130″ image from just centimetres away, ideal for compact retail and signage spaces.
  • Laser Light SourceUp to 20,000 hours (Normal/Quiet) or 30,000 hours (Extended) of virtually maintenance-free operation.
  • Full HD Image QualityFWXGA 3LCD panels with 4-way pixel-shifting deliver a full 1920 x 1080 (2,073,600 dot) image.
  • 5,000 Lumens BrightnessBright, vivid colour reproduction that holds up well in well-lit retail and hospitality environments.
  • Built-In Edge BlendingCombine multiple units with edge blending and daisy-chaining for seamless, expanded video-wall displays.
  • USB Content PlaybackPlay images and video directly from a USB stick — no connected PC required, ideal for unattended signage.
  • 360° InstallationSupports portrait and landscape orientations for ceiling, floor, or wall-mounted setups.
  • Technology
    • RGB liquid crystal shutter projection system (3LCD)
    • LCD Panel Size: 0.62″ Poly-silicon TFT active matrix
  • Image
    • Native Resolution: FWXGA (1366 x 768) x3 panels; Full HD (1920 x 1080 / 2,073,600 dots) via 4-way pixel-shifting
    • Aspect Ratio: 16:9
    • Brightness (Colour/White, Normal): 5,000 lm
    • Brightness (Quiet/Extended): 3,500 lm
    • Contrast Ratio: Over 5,000,000:1 (Dynamic Contrast On)
    • Light Source: Laser
    • Light Source Life: 20,000 hrs (Normal/Quiet) / 30,000 hrs (Extended)
  • Projection Lens
    • Throw Ratio: 0.27–0.37:1 (Ultra Short Throw)
    • Zoom Ratio: 1–1.35x (Digital, Manual)
    • Focus: Manual
    • Screen Size: 48″–130″

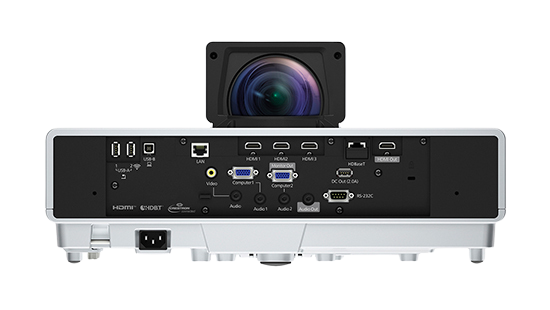

  • Connectivity
    • Digital Input: HDMI x3
    • HDBaseT: Yes (RJ-45)
    • Analog Input: Mini D-Sub 15-pin x2
    • Composite Input: RCA x1
    • USB Type-A: x2
    • USB Type-B: x1
    • Audio: Stereo Mini Jack x3
    • Network: LAN (100Base-TX)
    • Wireless LAN: 802.11b/g/n (2.4GHz) / 802.11a/n/ac (5GHz)
    • Control I/O: RS-232C
    • Internal Speaker: 2 x 8W Stereo
  • General
    • Dimensions (W x H x D, max): 458 x 227.5 x 450 mm
    • Weight: Approx. 9.4 kg (9.7 kg with cable cover)
    • Power Consumption: 381W (100–120V) / 366W (220–240V)
    • Standby Power: 2.0W (Comm. On) / 0.5W (Comm. Off)
    • Fan Noise (Normal/Extended, Quiet): 36dB(A) / 27dB(A)

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's fixed lens throw ratio (0.27:1).

    —
    —

    Fixed lens (no optical zoom, manual focus). Screen size changes only by physically moving the projector closer to or further from the screen, at a fixed 0.27:1 throw ratio. This model also offers up to 1.4x digital zoom to shrink the image further at a given distance, but digital zoom reduces image quality and isn't reflected in the figures above.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)
    • Standard: 3-year on-site warranty included
    • Laser Light Source warranty: 20,000 hours or 36 months, whichever comes first
    • View CoverPlus extension options
    • Must be purchased before your standard warranty expires

    • Download Brochure (PDF)

    Download User Manual

    ELPAF56 Air Filter Set
    ELPAF56 Air Filter Set
    ELPMB62 UST Setting Plate
    ELPMB62 UST Setting Plate
    ELPAP11 Wireless LAN Unit
    ELPAP11 Wireless LAN Unit
    ELPDC21 Document Camera
    ELPDC21 Document Camera
    ELPDC30 Document Camera
    ELPDC30 Document Camera
    What is the EB-800F best suited for?
    The EB-800F is a compact signage-style display projector, positioned for always-on retail and branded visual displays rather than a typical meeting-room setup.
    What resolution does the EB-800F project at?
    The EB-800F's native resolution is Full HD (1080p).
    How far from the screen does the EB-800F need to be placed?
    It has a throw ratio of 0.27–0.37:1 (fixed lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    Does the EB-800F use a lamp or a laser light source?
    This model uses a laser light source rather than a replaceable lamp, so there's no lamp to swap out over its rated life.
    What warranty comes with the EB-800F?
    Includes a 3-year on-site warranty, plus a laser light-source warranty of 20,000 hours or 36 months. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
