Epson EB-1485Fi WXGA Laser Interactive Ultra Short Throw Projector

RM19,739.00
RM19,739.00

This ultra-short-throw (UST) laser interactive projector combines short-distance projection with laser light source technology and interactive touch capability. Ideal for space-limited classrooms and meeting rooms, the laser source delivers better color accuracy, higher brightness, and quick start-up and shutdown compared to lamp-based models.
Total: MYR 19,739.00
Reference Number:Epson023
SKU: E0032
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
EB-1485Fi
RM19,739.00
RM19,739.00
  • An ultra-short-throw laser interactive display built for classrooms and training rooms — the EB-1485Fi projects a bright, Full HD image from just centimetres away and turns it into a shared touchscreen, so teachers and students can write, annotate, and collaborate directly on the wall without a separate whiteboard.
  • Dual-Pen & Finger-Touch InteractivityUp to 8 users can write, draw and interact on the screen at once using the two included interactive pens or finger touch — no software install needed on the source device.
  • Laser Light SourceUp to 20,000 hours (Normal) or 30,000 hours (Extended) of virtually maintenance-free operation, with instant on/off and no lamp to replace.
  • Ultra-Short Throw DesignSits just centimetres from the wall or screen, projecting up to 100" images without the shadows or glare caused by presenters standing in front of it.
  • Easy Interactive Tools & Whiteboard ModeAnnotate over any input source, or use the projector as a stand-alone digital whiteboard — save, print and share notes without a connected PC.
  • Full HD Image Quality5,000 lumens of colour and white brightness combine with a 3LCD engine for bright, true-to-life images even in well-lit rooms.
  • HDBaseT & Flexible ConnectivityBuilt-in HDBaseT, triple HDMI, wireless LAN, and screen mirroring make it simple to connect laptops, tablets and classroom AV systems.
  • BrightLink GoBoard SoftwareIncludes a 1-year trial of Epson's cloud-based collaborative whiteboarding software for hybrid teaching and remote collaboration.
  • Technology
    • 3-chip 3LCD projection system (RGB liquid crystal shutter)
    • LCD Panel Size: 0.62" (C2 Fine)
  • Image
    • Native Resolution: Full HD 1080p (3LCD pixel-shift from WXGA 1366 x 768 x2 panels)
    • Aspect Ratio: 16:9 (also supports 16:6)
    • Brightness (Colour/White, Normal): 5,000 lm
    • Brightness (Eco): 3,500 lm
    • Contrast Ratio: Over 2,500,000:1
    • Light Source: Laser Diode
    • Light Source Life: 20,000 hrs (Normal) / 30,000 hrs (Extended)
  • Projection Lens
    • Throw Ratio: 0.27–0.37:1 (Fixed, Ultra Short Throw)
    • Digital Zoom: 1.0–1.35x (manual focus, no optical zoom)
    • Keystone Correction: Manual Vertical/Horizontal ±3°, Quick Corner
    • Screen Size: 65″–100″ (16:9) / 61″–120″ (16:6)
    • Projection Distance: 39.2–61.3cm (16:9) / 39.5–79.6cm (16:6)
  • Interactive
    • Technology: Infrared touch
    • Input Devices: 2 interactive pens + finger-touch, up to 8 users
    • Pen Calibration: Auto / Manual (25-point)
    • Functions: Hover, right-click, auto pen-area adjustment
    • Software: Easy Interactive Tools, PC-free Whiteboard mode, 1-year trial of BrightLink GoBoard

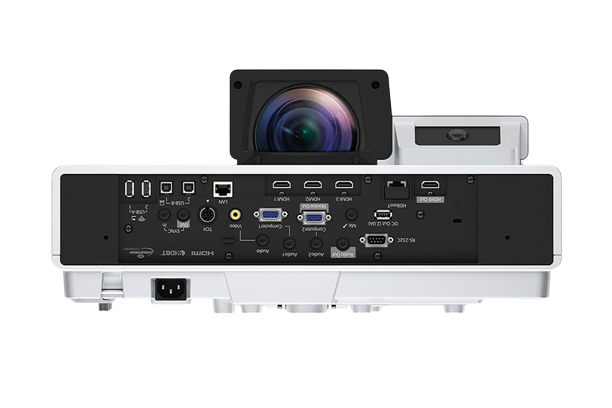

  • Connectivity
    • HDMI: 3x (HDCP 2.3)
    • HDBaseT: 1x (video/audio/interactive/control, HDCP 2.3)
    • Analog Input: 2x D-Sub 15-pin; Output: 1x D-Sub 15-pin
    • Composite Input: 1x RCA
    • USB Type-A: 2x; USB Type-B: 2x
    • Audio: 3x stereo mini-jack input, 1x output
    • Wired LAN: RJ45 (100Mbps)
    • Wireless: Built-in 802.11a/b/g/n/ac, Miracast, Wi-Fi Direct
    • Internal Speaker: 8W x 8W stereo
  • General
    • Dimensions (excl. feet): 375 x 458 x 209.5 mm
    • Weight: Approx. 9.7 kg
    • Power Consumption: 366W (Normal) / 262W (Eco) / 2.0W (Standby, network on) / 0.5W (Standby, network off)
    • Fan Noise: 36dB (Normal/Extended) / 27dB (Quiet)
    • Start-up Time: Under 8 seconds; Cool-down: Instant Off

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's fixed lens throw ratio (0.27:1).

    —
    —

    Fixed lens (no optical zoom, manual focus). Screen size changes only by physically moving the projector closer to or further from the screen, at a fixed 0.27:1 throw ratio. This model also offers up to 1.4x digital zoom to shrink the image further at a given distance, but digital zoom reduces image quality and isn't reflected in the figures above.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)
    • Standard: 3-year on-site warranty included
    • Laser Light Source warranty: 12,000 hours or 36 months, whichever comes first
    • View CoverPlus extension options
    • Must be purchased before your standard warranty expires

    • Download Brochure (PDF)

    Download User Manual

    ELPAF56 Air Filter Set
    ELPAF56 Air Filter Set
    ELPMB62 UST Setting Plate
    ELPMB62 UST Setting Plate
    ELPDC21 Document Camera
    ELPDC21 Document Camera
    ELPAP11 Wireless LAN Unit
    ELPAP11 Wireless LAN Unit
    ELPPN05A Easy Interactive Pen
    ELPPN05A Easy Interactive Pen
    ELPPN05B Easy Interactive Pen
    ELPPN05B Easy Interactive Pen
    What is the EB-1485Fi best suited for?
    The EB-1485Fi is an ultra-short-throw interactive projector that sits right beneath the screen and supports writing and annotating directly on the projected image — suited to classrooms and training rooms.
    What resolution does the EB-1485Fi project at?
    The EB-1485Fi's native resolution is 4K.
    How far from the screen does the EB-1485Fi need to be placed?
    It has a throw ratio of 0.27–0.37:1 (fixed lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    Does the EB-1485Fi use a lamp or a laser light source?
    This model uses a laser light source rather than a replaceable lamp, so there's no lamp to swap out over its rated life.
    What warranty comes with the EB-1485Fi?
    Includes a 3-year on-site warranty, plus a laser light-source warranty of 12,000 hours or 36 months. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
    Is the EB-1485Fi interactive?
    Yes — the EB-1485Fi supports writing and annotating directly on the projected image using its included interactive tools, which is why it's positioned for classrooms and training rooms.
