By Grandview
Grandview Dias Series Motorized Screen
Enquire for price

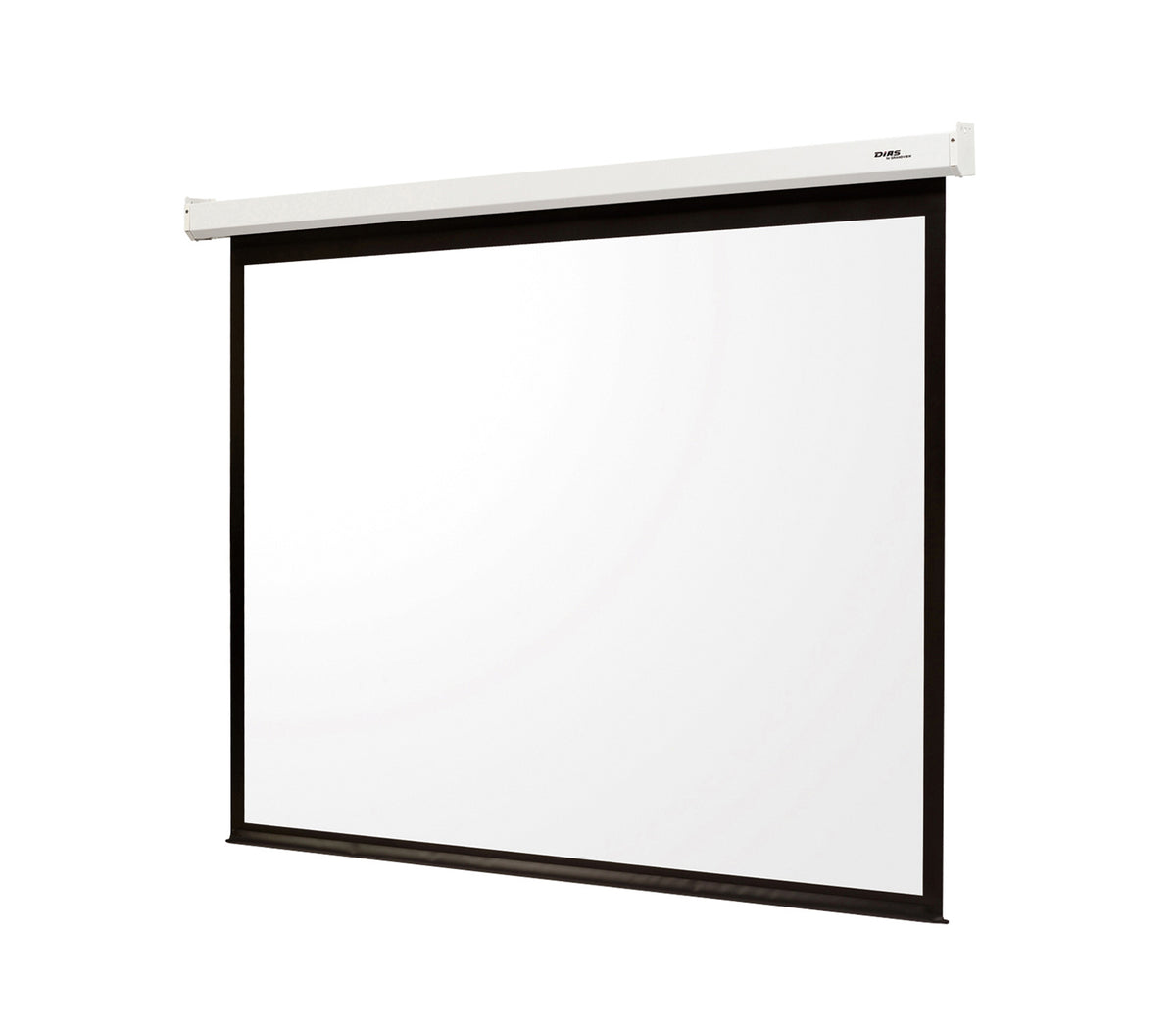

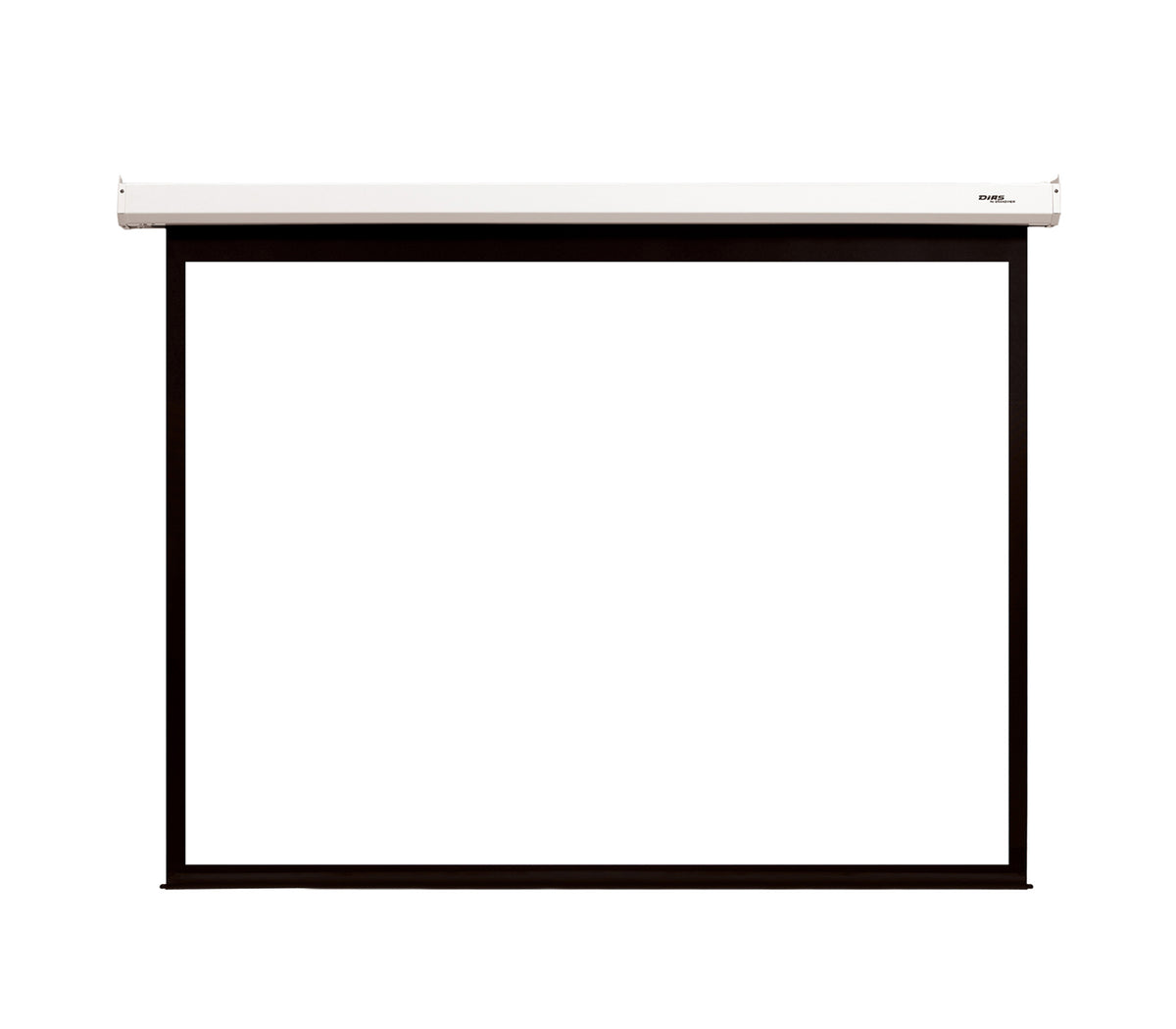

The Dias Series Motorized Screen balances practicality with integrated control in an economical package, featuring a sprayed metal coating and a quiet tubular motor. It is offered in a standard (DI-M) and integrated-control (DI-MI) configuration, with built-in IR remote plus optional RS485, dry contact, 3-12V trigger, and central control. Available in 4:3, 16:9, 16:10, and 2.35:1 aspect ratios from 92" to 200" diagonal, with WM5/WP5 matte white (1.0 gain) or GM5 matte grey (0.8 gain) fabric, each with a 160° viewing angle.
Couldn't load pickup availability
Total: MYR 0.00
Enquire for price

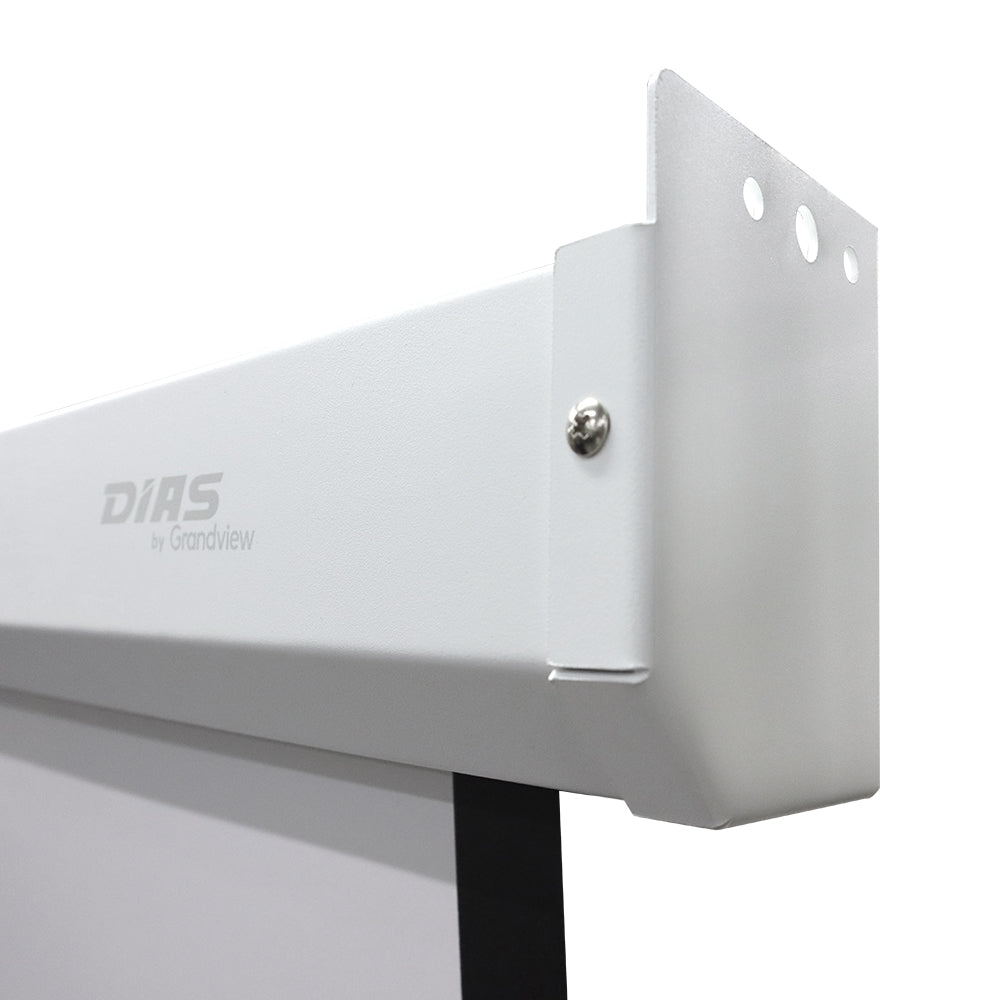

- Sprayed metal-coated housing with quiet tubular motor
- WM5 matte white — 1.0 gain, 160° viewing angle
- WP5 matte white — 1.0 gain, 160° viewing angle
- GM5 matte grey — 0.8 gain, 160° viewing angle
- 4:3, 16:9, 16:10, 2.35:1
- Diagonal range: 92" to 200"
- 0.8 to 1.0 depending on fabric
- Built-in IR remote control
- RS485 + dry contact
- 3-12V trigger
- Central control (integrated DI-MI model only)
- Floating wall mount
- Ceiling mount
- Suspended mount
- Dias Series motorized projection screen (fabric + housing)
- IR remote control
- Wall switch and smart wall switch
- Hanging brackets
- IR receiver
Standard accessories
- IR Remote Control
- Wall Switch
- Smart Wall Switch
- Hanging Brackets
- IR Receiver
- Wireless Remote
Optional accessories
- In-Line Switch
- External RF Control System
- External IR Receiver
- Power Synchro Relay
- RF Wireless Trigger
