  3. 4K HDMI Matrix Switcher HX-2544
By AVLink

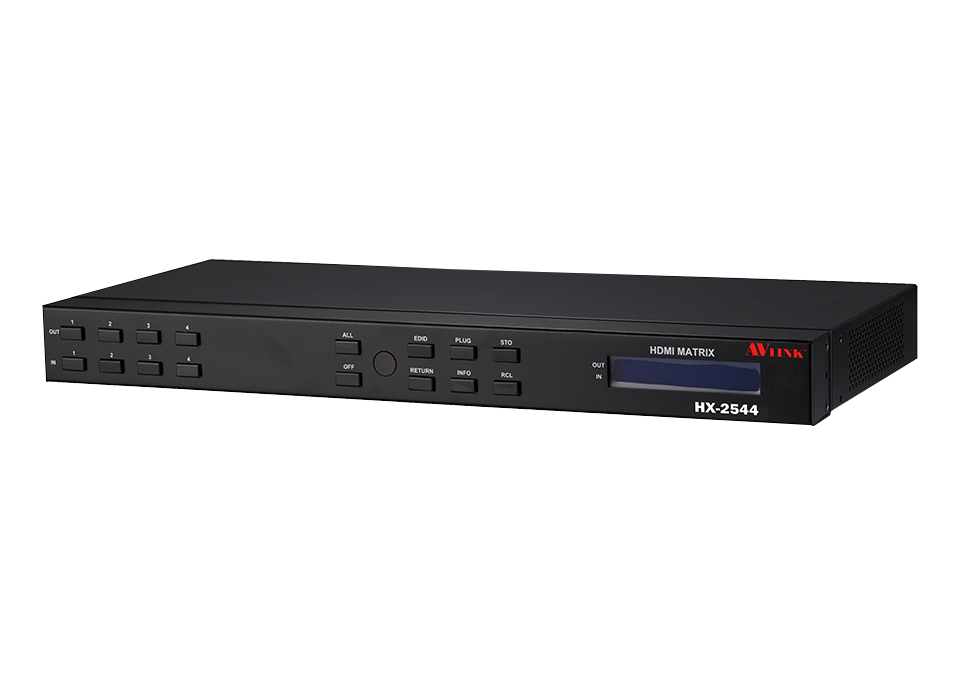

4K HDMI Matrix Switcher HX-2544

RM3,400.00
RM3,400.00

This 4K/HDR HDMI matrix switcher offers 4 inputs and 4 outputs with multi cross-switching up to UHD@60Hz (4:4:4), EDID copy from output 1, and RS-232 control. It supports seamless video and high-definition audio with fast channel switching and memory settings, controllable via manual push button, remote, or Ethernet.
Total: MYR 3,400.00
SKU: SW007
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
4K HDMI Matrix Switcher HX-2544
RM3,400.00
RM3,400.00
  • A 4x4 HDMI matrix switcher built for professional AV installations that need to route four HDMI sources to four displays independently — the HX-2544 combines full 4K UHD/DCI support with flexible IR, RS-232 and Ethernet control in a rack-mount chassis for boardrooms, control rooms and system integration projects.
  • True 4K UHD & DCI SupportPasses 4K (3840x2160) and DCI (4096x2160) video at up to 60Hz in full 4:4:4 chroma, keeping every source at its native picture quality.
  • HDCP Compliant with HDRWorks with HDCP-protected 4K sources and passes through HDR content without dropouts.
  • High-Fidelity Audio Pass-ThroughCarries Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio for full home-theatre-grade sound.
  • Triple Control OptionsOperate the matrix by IR remote, RS-232 or Ethernet (TCP/IP) so it fits into almost any existing control system.
  • IR Pass-Through on Every PortDuplex IR pass-through lets you control source devices from the display side of the room.
  • EDID ManagementCopies EDID from Output 1 across all inputs for consistent, reliable display handshaking.
  • Up to 4 Memory PresetsStore and recall routing configurations instantly for repeatable multi-room setups.
  • 1U Rack-Mount DesignCompact, all-metal 1U chassis with brackets for standard equipment rack installation.
  • Video/HDMI
    • HDMI Inputs: 4x Type-A Female
    • HDMI Outputs: 4x Type-A Female
    • Max Resolution: UHD (3840 x 2160) / DCI (4096 x 2160) @ 60Hz (4:4:4)
    • TMDS Bandwidth: 600 MHz
    • HDCP Compliant, HDR Support
    • 3D Pass-Through
    • Audio Pass-Through: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
  • Control
    • IR: Pass-through on all ports, duplex transmission
    • RS-232: DB9 connector, 9600 bps
    • Ethernet: RJ-45
    • EDID Management: Copied from Output 1
    • Memory Presets: Up to 4
  • General/Physical
    • Housing: 1U rack-mount metal chassis
    • Dimensions: 440 x 185 x 42 mm
    • Weight: 2,520 g
    • Minimum HDMI Cable Distance: 10 m
  • Power
    • Power Supply: DC 12V / 5A
  • What's in the Box
    • HX-2544 matrix switcher unit
    • DC 12V/5A power adapter
    • RS-232 cable
    • LAN (Ethernet) cable
    • HDMI cable
    • IR receiver & blaster cables
    • Remote controller with batteries
    • Rack-mount brackets
    • User manual

    • Download User Manual
