  3. 4K HDMI Matrix Switcher HX-1522W
By AVLink

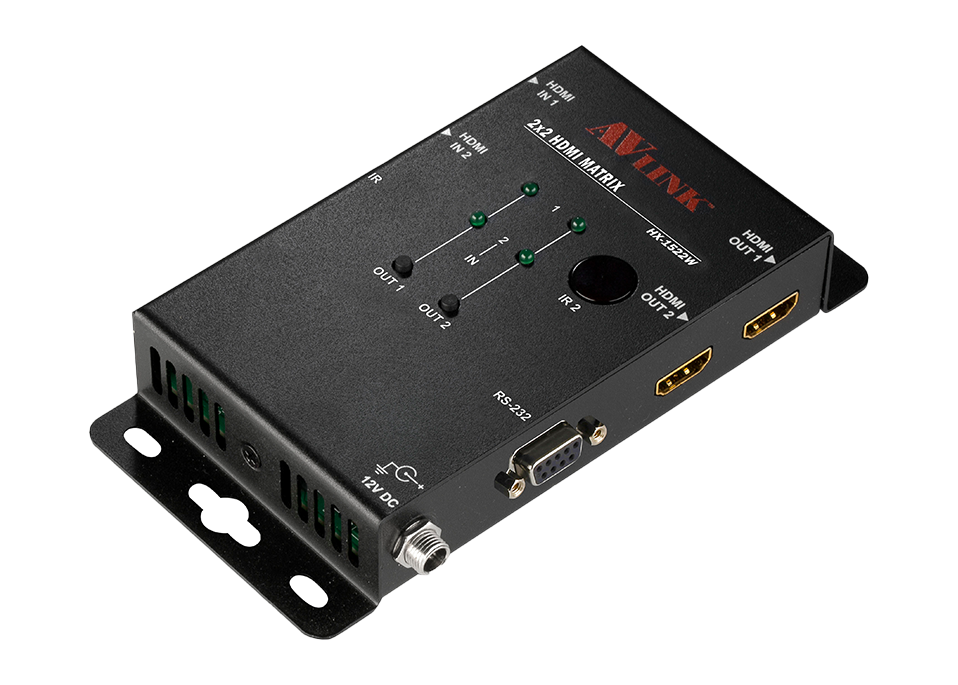

4K HDMI Matrix Switcher HX-1522W

RM670.00
RM670.00

This 4K HDMI matrix switcher offers 2 inputs and 2 outputs, supporting UHD@60Hz (4:4:4) with EDID copy from output 1 and RS-232 control. Higher-voltage DC 12V power reduces transmission loss, with manual push button and remote control support. Made in Taiwan.
Total: MYR 670.00
SKU: SW005
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
4K HDMI Matrix Switcher HX-1522W
RM670.00
RM670.00
  • A compact 2x2 HDMI 2.0 matrix switcher that routes either of two HDMI sources to either — or both — of two displays, with full 4K UHD/DCI support for small meeting rooms, retail displays and residential AV setups.
  • 2x2 HDMI 2.0 SwitchingRoute either of two HDMI sources independently to either or both of two connected displays.
  • Full 4K UHD/DCI @ 60HzPasses UHD (3840x2160) and DCI (4096x2160) video at up to 60Hz in full 4:4:4 chroma.
  • HDCP2.2 / HDMI2.0 CompliantWorks seamlessly with the latest copy-protected 4K sources and displays.
  • 3D Pass-ThroughPasses 3D HDMI content through the signal chain without loss.
  • EDID ManagementAutomatically copies EDID from Output 1 for stable display handshaking across sources.
  • IR & RS-232 ControlControl from the included remote, an IR system, or RS-232 serial commands for integration with automation systems.
  • Compact Metal ChassisRugged all-metal housing at just 150 x 80 x 25 mm, easy to hide behind a display or on a rack shelf.
  • Video/HDMI
    • HDMI Inputs: 2x A-Type Female (HDMI 2.0)
    • HDMI Outputs: 2x A-Type Female (HDMI 2.0)
    • Max Resolution: UHD (3840 x 2160) / DCI (4096 x 2160) @ 60Hz (4:4:4)
    • HDCP2.2 / HDMI2.0 Compliant
    • 3D Pass-Through
  • Control
    • IR: 3.5mm stereo jack (x1)
    • RS-232: 9-pin D-type female connector
    • EDID Management: Copied from Output 1
  • General/Physical
    • Housing: Metal
    • Dimensions: 150 x 80 x 25 mm
    • Weight: 305 g
  • Power
    • Power Supply: DC 12V, locking jack connector
  • What's in the Box
    • HX-1522W matrix switcher unit
    • DC 12V power adapter (locking connector)
    • Remote controller
    • Mounting screws
    • Rubber foot pads
    • User manual
