By Yealink

MeetingBoard 86 Pro

RM47,999.00
RM47,999.00
  • Supports Teams mode/Zoom mode/General Mode(BYOD/H.323/SIP);
  • 1 x 86 inch all-in-one Collaboration Display, 3m AC power cable, 3m CAT5E network cable, and 3x cable ties;
  • 4 x stylus pen;
  • Built-in 50MP triple-camera system;
  • Option (need to be purchased separately): MB-WallMount-860 (wall mount kit), MB-FS-P860T (floor stand kit), MB-WallStand-860W (wall stand kit), MB-12X Pro (optional PTZ zoom camera module for long-distance tracking)
  • Including 2-year hardware warranty.

Warranty: 2-Year | Microphone: built-in | Camera: built-in 50MP triple-camera
Total: MYR 47,999.00
SKU: MB86Pro-A02
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
YealinkMeetingBoard 75 Pro

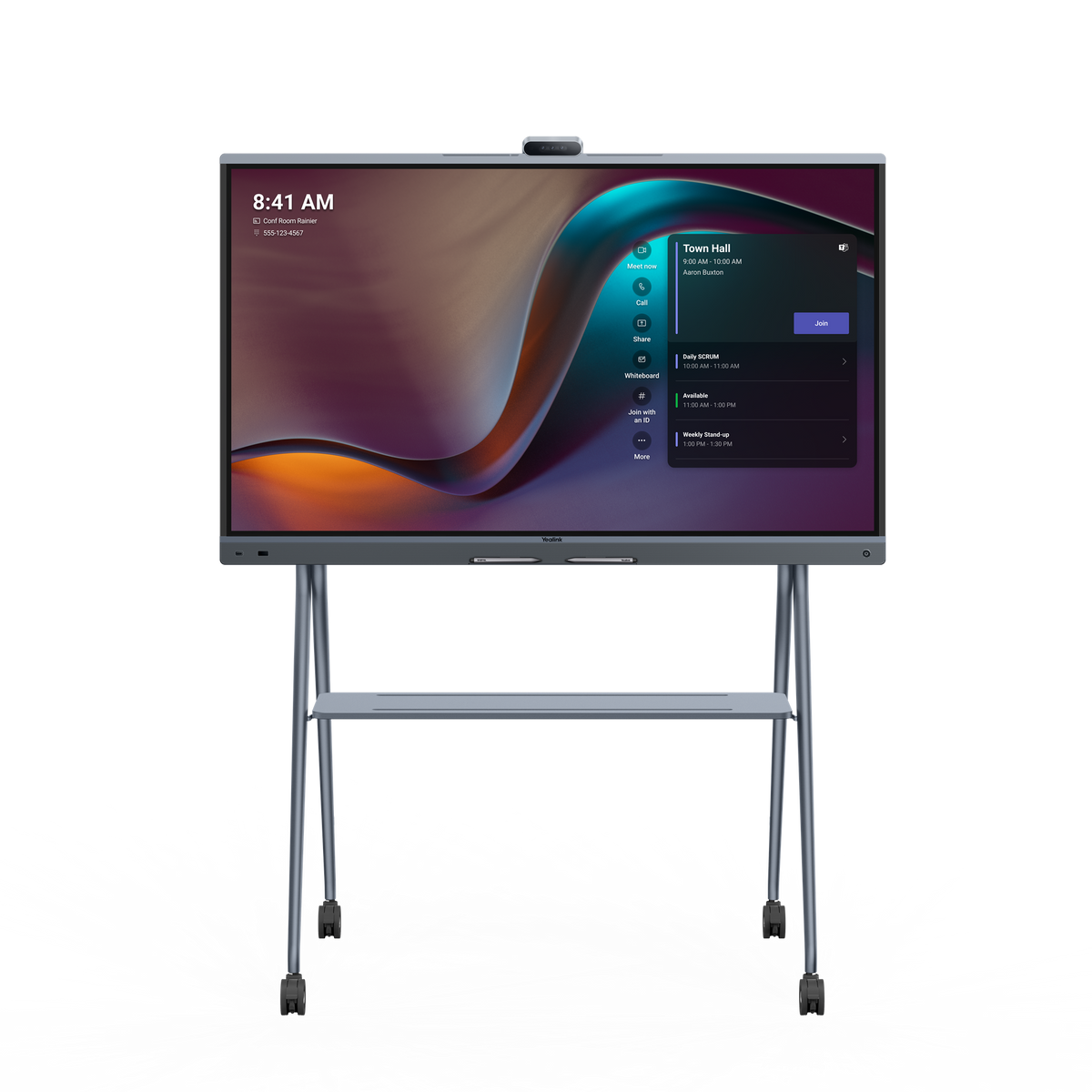

Yealink MeetingBoard 75 Pro - floor stand front view, built-in camera
Yealink DeskVision A24
YealinkDeskVision A24

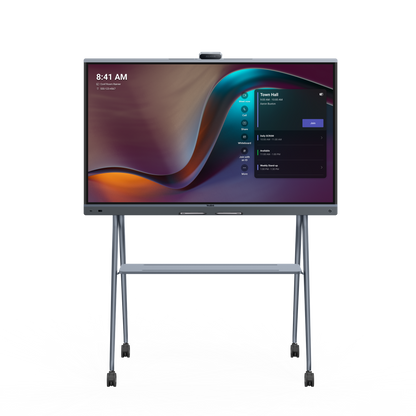

Yealink MeetingBoard 86 Pro - floor stand front view, built-in camera
RM47,999.00
RM47,999.00
  • The Yealink MeetingBoard 86 Pro is an 86-inch all-in-one collaboration display with a triple 50MP camera system and a 12-meter microphone array, built to run Microsoft Teams, Zoom, or General Mode (BYOD/H.323/SIP) meetings from a single interactive whiteboard.
  • 86" 4K UHD Touchscreen3840 x 2160 resolution at 400 cd/m² brightness with 1200:1 contrast, 72% NTSC/99% sRGB color gamut, and 20-point touch with just 21ms latency for natural writing and annotation.
  • Triple 50MP Camera SystemThree 50MP Sony-sensor cameras deliver a 98.2° horizontal field of view with 4x digital zoom, auto framing, speaker tracking, IntelliFocus, and video fence; an optional MB-12X Pro PTZ module adds 12x optical zoom for larger rooms.
  • 12-Meter Microphone PickupA 16-element MEMS microphone array captures full-duplex audio up to 12 meters away, paired with 30W stereo speakers for clear, natural-sounding calls — ideal for the larger boardrooms this size suits.
  • Runs Teams, Zoom & General ModeSupports Teams mode, Zoom mode, and General Mode (BYOD/H.323/SIP) on Android 13, so one device can flex across meeting platforms and room types.
  • Display
    • 86" LCD touchscreen, 3840 x 2160 (4K UHD)
    • 400 cd/m² brightness, 1200:1 contrast ratio
    • 72% NTSC / 99% sRGB color gamut
    • 20-point touch, 21ms touch latency
  • Camera
    • Triple 50MP Sony-sensor cameras, 98.2° horizontal FOV
    • 4x digital zoom; 4K (3840x2160) video output at 60Hz
    • Auto Framing, Speaker Tracking, IntelliFocus and Video Fence
    • Optional MB-12X Pro PTZ module with 12x optical zoom
  • Audio
    • Built-in 16 MEMS microphone array, 12-meter full-duplex pickup range
    • Stereo speakers, 30W rated power
    • 70dB@1kHz signal-to-noise ratio
  • Connectivity
    • 1x HDMI input, 1x HDMI output with CEC
    • RCA audio in/out
    • 3x USB-A 2.0
    • 2x 10/100/1000Mbps Ethernet ports
    • Wi-Fi 6 (802.11a/b/g/n/ac/ax, dual-band, 2x2 MIMO); Bluetooth 5.1
  • Dimensions & Weight
    • Bare unit: 1951 x 105 x 1218 mm
    • With stand: 1950 x 858 x 2058 mm
    • Net weight: 65.6 kg
  • Mounting
    • Wall-mounted, wall-stand, or floor-stand installation
  • Compatibility
    • Microsoft Teams mode, Zoom mode, and General Mode (BYOD/H.323/SIP)
  • Operating System
    • Android 13.0, 8GB RAM / 64GB flash storage
    • Manageable via YMCS, Microsoft Teams Admin Center, or Zoom Device Management
  • Warranty
    • 2-Year hardware warranty
  • Part Number
    • MB86Pro-A02 (*different regions may have different SKUs/part numbers)
  • What's in the Box
    • 1 × MeetingBoard 86 Pro all-in-one Collaboration Display
    • 1 × Cable Pack (3m AC Power Cable, 3m CAT5E Network Cable, 3x Cable Ties)
    • 4 × Stylus Pens
    • 1 × Quick Start Guide

    Note: MB-WallMount is sold separately and is not included as standard.

    • Download Brochure (PDF)

    Mounting Accessories

    • Wall Mount — MB-WallMount-650 (65") / MB-WallMount-860 (75" & 86")
    • Wall Stand — MB-WallStand-650W (65") / MB-WallStand-860W (75" & 86")
    • Floor Stand — MB-FS-P650T (65") / MB-FS-P750T (75") / MB-FS-P860T (86") / MB-FS-Lift (all sizes)

    Audio Accessories

    • Wired Microphone VCM35
    • Wireless Microphone VCM36-W
    • Ceiling Speaker CS10
    • Ceiling Microphone CM20

    Casting Accessories

    • Wireless Presentation Pod (unavailable in the United States)
    • Wired Sharing Box VCH51 / VCH51 Pro

    Camera Accessories

    • Pluggable Optical Zoom Camera Module MB-12X Pro
    • Video Conferencing Camera UVC86

    Controller

    • Touch Panel CTP25
    • Remote Controller MB-Remote

    Windows OPS Module

    • MCore-OPS
    • MCore-OPS-T (Teams Certified)
    • MCore-OPS-G2
    • MCore-OPS-G2T (Teams Certified)
