1. Home
  3. Yealink
  5. Bundle Zoom Room System ZVC S90 (BoardRoom)
By Yealink

Bundle Zoom Room System ZVC S90 (BoardRoom)

RM59,176.69
RM59,176.69

Native Zoom Rooms system for BoardRoom rooms

  • 2x UVC86 dual-eye Intelligent camera, VCR20 remote control, power adapter, wallmount bracket and cables;
  • Yealink MCoreKit-C5U (with MCore4 mini-PC, MTouch Plus and RoomSensor), power adapter, cables and wall bracket;
  • 1x AVHub multi-camera processor, power adapter and cables;
  • 1x MVC-BYOD-Extender USB-BYOD adapter;
  • The mini-PC computer preloads Windows 11 IoT Enterprise OS and license, Zoom Rooms App, as well as Yealink Camera Control Plug-in;
  • No audio devices;
  • Including 2-year hardware warranty.

Warranty: 2-Year
Total: MYR 59,176.69
SKU: ZVC S90-C5U-004
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
YealinkBundle Zoom Room System ZVC S98 (ProAV Rooms)

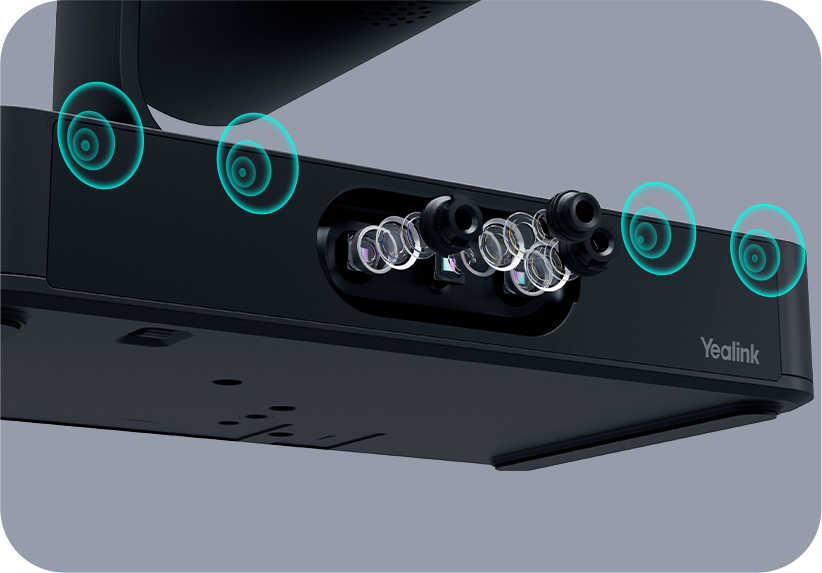

Yealink SmartVision 80 based ZVC S98 Zoom Room System
Yealink SmartVision 80 based ZVC S80 Zoom Room System
YealinkBundle Zoom Room System ZVC S80 (Medium-to-Large Rooms)
Yealink UVC86 based ZVC S90 Zoom Room System
RM59,176.69
RM59,176.69
  • A native Windows-based Zoom Rooms system for extra-large boardrooms and training rooms, pairing dual UVC86 dual-eye 4K cameras with an AVHub processor for wide, flexible coverage.
  • Dual UVC86 4K CamerasTwo dual-eye cameras with 20.4x HD zoom (12x optical) cover telephoto and panoramic fields of view, with auto-framing, speaker and presenter tracking, and up to 9 preset positions.
  • AVHub Multi-Camera ProcessingThe included AVHub processor synchronizes up to 9 cameras for consistent switching across large or divisible rooms.
  • Build-Your-Own AudioShips without audio devices so you can pair Yealink Dante-certified microphones and speakers (CM50, CS10-D, AP08) to match the room.
  • BYOD ReadyThe included MVC-BYOD-Extender lets guests join meetings from a personal laptop using the room's camera, audio, and display.
  • Overview
    • Native Zoom Rooms (Windows-based) system for BoardRoom and extra-large spaces, combining two UVC86 dual-eye PTZ cameras with an AVHub processor and the MCoreKit-C5U compute/touch/sensor kit
  • Included Hardware
    • 2x UVC86 dual-eye intelligent PTZ camera with VCR20 remote control, power adapter, wall-mount bracket and cables
    • 1x Yealink MCoreKit-C5U (MCore4 mini-PC, MTouch Plus touch console, RoomSensor) with power adapter, cables and wall bracket
    • 1x AVHub multi-camera processor with power adapter and cables
    • 1x MVC-BYOD-Extender USB-BYOD adapter
    • No audio devices included
  • Display Support
    • 3x HDMI video output with CEC support (mini-PC)
    • 1x HDMI input for 4K content sharing
  • Connectivity
    • 4x USB 3.0, 1x Yealink MTouch port (RJ45)
    • Built-in Wi-Fi and Bluetooth on the mini-PC
  • Compatibility
    • Preloaded with Windows 11 IoT Enterprise, the Zoom Rooms app, and the Yealink Camera Control plug-in
    • Supports up to 9-camera AVHub deployments
    • Compatible with Yealink CM50, CS10-D, and AP08 professional audio
  • Room Size
    • Large to extra-large boardrooms and training rooms
  • Warranty
    • 2-Year limited hardware warranty
  • Part Number (SKU)
    • ZVC S90-C5U-004
  • What's in the Box
    • 2x UVC86 dual-eye intelligent PTZ camera
    • VCR20 remote control, power adapter, wall-mount bracket and cables for cameras
    • 1x Yealink MCoreKit-C5U (MCore4 mini-PC, MTouch Plus touch console, RoomSensor)
    • Power adapter, cables and wall bracket for MCoreKit-C5U
    • 1x AVHub multi-camera processor with power adapter and cables
    • 1x MVC-BYOD-Extender USB-BYOD adapter
    • 2-year hardware warranty included

    • Download Brochure (PDF)

    CM50 Dante Beamforming Ceiling Microphone
    CM50 Dante Beamforming Ceiling Microphone
    CS10-D Dante Ceiling Speaker
    CS10-D Dante Ceiling Speaker
    AP08 Dante Digital Signal Processor
    AP08 Dante Digital Signal Processor
    UVC8X Mount Kits
