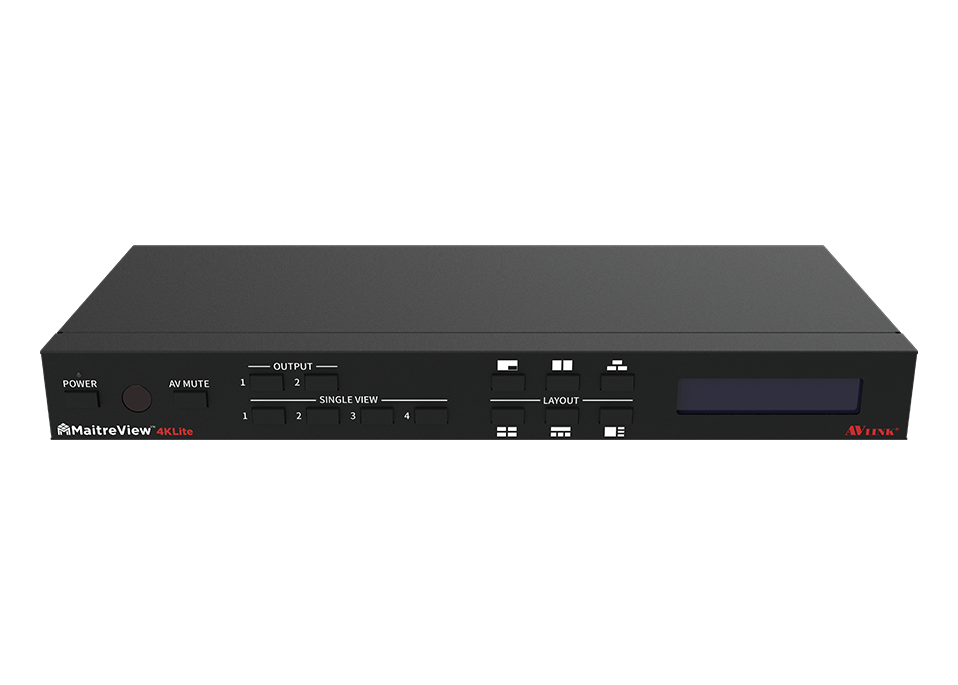

MaitreView 4KLite

RM9,720.00
RM9,720.00

The MaitreView 4KLite is a multi-window processor with 4 HDMI 2.0 inputs and 2 HDMI 2.0 outputs, all supporting uncompressed 4K@60Hz 4:4:4 (18Gbps bandwidth), seamless switching, and independent video outputs. It offers 4 video split layers per output, 6 default layouts, and control via web GUI, Android and iOS app, IR remote, or front panel buttons.
Total: MYR 9,720.00
SKU: MV0001
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
AVLink4K HDMI Matrix Switcher HX-2544
4K HDMI Matrix Switcher HX-2544
HDM-3MXCU Transceiver Pair
AVLinkHDM-3MXCU Transceiver (Pair)
MaitreView 4KLite
RM9,720.00
RM9,720.00
  • The MaitreView 4KLite is a 4K/60Hz multi-window video processor built for conferencing and collaborative work environments. Its FPGA-based engine handles uncompressed 4K content with real-time seamless switching, making it a compact way to put multiple sources on screen at once without compression artifacts or switching delay.
  • Uncompressed 4K@60Hz 4:4:4 Processing4 HDMI 2.0 inputs and 2 HDMI 2.0 outputs handle full 18Gbps bandwidth for true-to-source image quality.
  • Up to 4 Split Layers Per OutputBuild multi-window layouts with up to 4 independent split layers on each output for side-by-side comparison.
  • Independent Dual-Output LayoutsRun completely different window configurations on each of the 2 outputs at the same time.
  • Real-Time Seamless SwitchingPixel-level processing enables instant, glitch-free transitions between sources and presets.
  • Multiple Control OptionsOperate via Web GUI, tablet app, IR remote, front-panel buttons, RS-232, or third-party API integration.
  • 6 Configurable PresetsSwitch instantly between 6 multi-window and single-window layout presets to suit the content on screen.
  • Video/HDMI
    • Video Inputs: 4x HDMI 2.0 (HDCP 1.4/2.2 compatible)
    • Video Outputs: 2x HDMI 2.0 (HDCP 1.4/2.2 compatible)
    • Max Resolution: Uncompressed 4K@60Hz 4:4:4 (18Gbps bandwidth)
    • Processing: FPGA-based (Xilinx Kintex UltraScale)
  • Video Processing
    • Split Layers: Up to 4 independent split layers per output
    • Preset Layouts: 6 configurable multi-window/single-window layouts (up to 16 available layouts)
    • Switching: Real-time seamless switching between sources and presets
    • Output Independence: Different layouts can run on each of the 2 outputs simultaneously
  • Control
    • Interfaces: Web GUI, tablet/mobile app, IR remote control, front panel buttons, RS-232, APIs
    • Network: RJ45 Gigabit Ethernet (10/100/1000M)
    • Other Ports: USB 2.0
  • Audio
    • Audio Output: 3.5mm analog jack and S/PDIF digital output (1 stereo pair)
  • General/Physical
    • Dimensions: 383 x 170 x 43mm (482 x 170 x 43mm with mounting kit)
    • Weight: 2.05kg (2.17kg with mounting kit)
    • Operating Temperature: 0°C to +40°C
  • Power
    • Power Supply: DC 12V/5A external adapter (100-240V AC input)
    • Max Power Consumption: 40W
  • What's in the Box
    • MaitreView 4KLite unit (x1)
    • Rack-mounting ear set with screws
    • AC power adapter, DC 12V/5A (100-240V input)
    • Quick Start Guide

    • Download Brochure (PDF)

    Download User Manual
