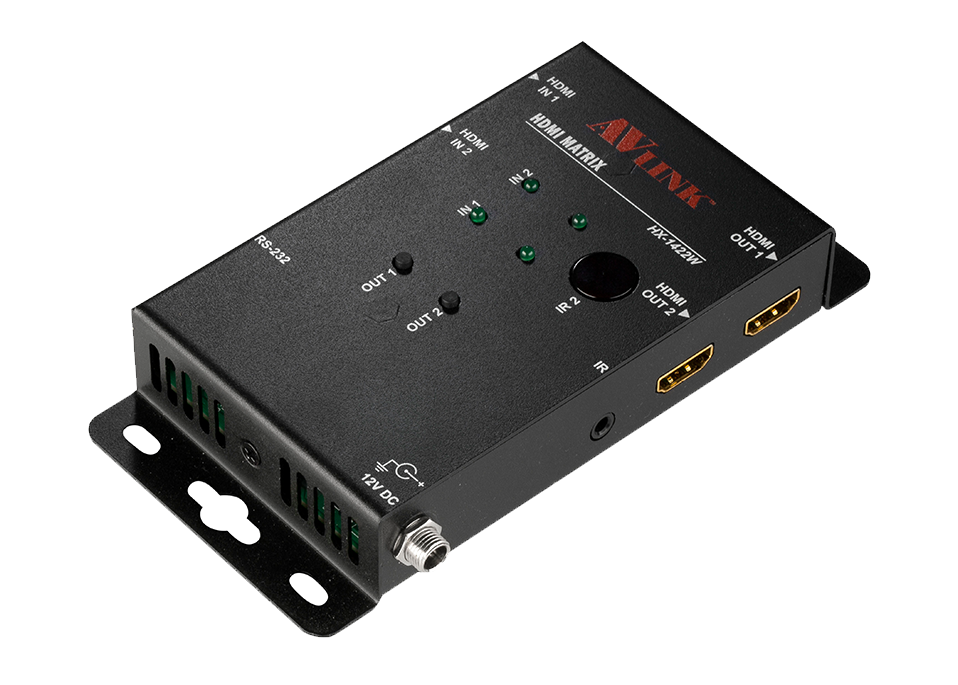

4K HDMI Matrix Switcher HX-1422W

RM580.00
RM580.00

This 4Kx2K HDMI matrix switcher offers 2 inputs and 2 outputs, supporting 4Kx2K@30Hz (4:4:4) and 4Kx2K@60Hz (4:2:0) with EDID copy from output 1 and RS-232 control. Higher-voltage DC 12V power reduces transmission loss, with manual push button and remote control support. Made in Taiwan.
Total: MYR 580.00
SKU: SW003
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

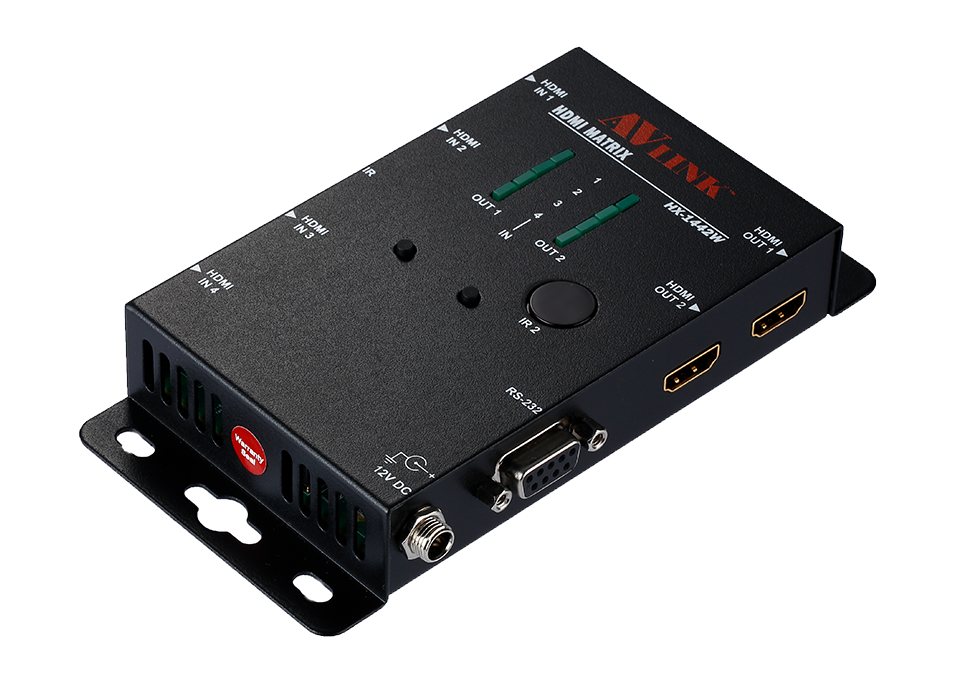

AVLink4K HDMI Matrix Switcher HX-1442W
4K HDMI Matrix Switcher HX-1442W
4K HDMI Matrix Switcher HX-2544
AVLink4K HDMI Matrix Switcher HX-2544
4K HDMI Matrix Switcher HX-1422W
RM580.00
RM580.00
  • A compact 2x2 HDMI matrix switcher that routes either of two HDMI sources to either — or both — of two displays, ideal for small meeting rooms, retail displays and residential AV setups where space and simple control matter.
  • 2x2 HDMI SwitchingRoute either of two HDMI sources independently to either or both of two connected displays.
  • 4K Resolution SupportPasses 4K x 2K at 30Hz (4:4:4) or 60Hz (4:2:0), covering current UHD source devices.
  • 3D Pass-ThroughPasses 3D HDMI content through the signal chain without loss.
  • HDCP CompliantWorks seamlessly with copy-protected content from Blu-ray players, streaming boxes and set-top boxes.
  • EDID ManagementAutomatically copies EDID from Output 1 for stable display handshaking across sources.
  • IR & RS-232 ControlControl from the included remote, an IR system, or RS-232 serial commands for integration with automation systems.
  • Compact Metal ChassisRugged all-metal housing at just 150 x 80 x 25 mm, easy to hide behind a display or on a rack shelf.
  • Video/HDMI
    • HDMI Inputs: 2x Type-A Female
    • HDMI Outputs: 2x Type-A Female
    • Max Resolution: 4K x 2K @ 30Hz (YCbCr 4:4:4) / 4K x 2K @ 60Hz (YCbCr 4:2:0)
    • HDCP Compliant
    • 3D Pass-Through
  • Control
    • IR: 3.5mm stereo jack input
    • RS-232: 9-pin D-type female connector
    • EDID Management: Copied from Output 1
  • General/Physical
    • Housing: Metal
    • Dimensions: 150 x 80 x 25 mm
    • Weight: 305 g
  • Power
    • Power Supply: DC 12V, locking jack connector
  • What's in the Box
    • HX-1422W matrix switcher unit
    • DC 12V power adapter (locking connector)
    • Remote controller
    • 2 mounting screws
    • 4 rubber foot pads
    • User manual

    • Download User Manual
