By Grandview

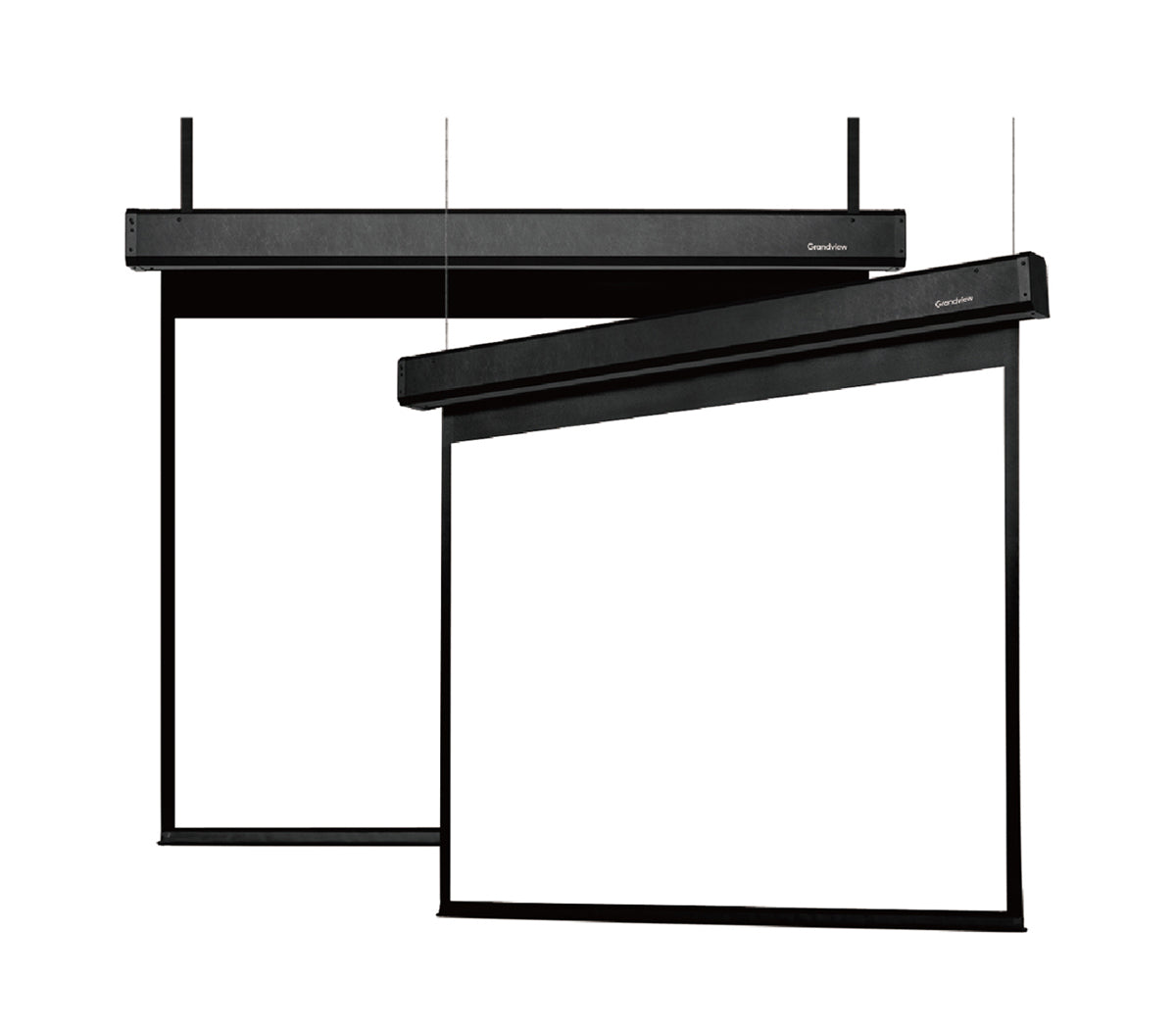

Grandview Skyshow Series Motorized Screen-Model A/B
Enquire for price
The Grandview Skyshow Series Motorized Screen-Model A/B was the world's first large motorized screen with a built-in self-winding cable system, allowing the casing to be lowered up to 5 meters for high-ceiling installations. It features electronic and mechanical positioning, an anti-drop safety mechanism, and a black aluminum casing, and is available from 60" to 240" diagonal in 1:1, 4:3, and 16:9 aspect ratios. Screen fabric options include WM5 and WM9, both fiberglass matte white with 1.0 gain and a 160° viewing angle.
Couldn't load pickup availability
Total: MYR 0.00
Enquire for price
- Black aluminum casing
- Endcap 173mm H x 133mm W (standard) or 253mm H x 167mm W (larger models); black drop 200mm
- WM5 and WM9 fiberglass matte white — gain 1.0, 160° viewing angle
- Model A/B: 60", 70", 84", 96", 100" (1:1)
- Model A: 100"-150" (4:3), 77"-136" (16:9)
- Model B: 135"-240" (4:3), 124"-220" (16:9), 128"-226" (16:10)
- RF remote, wall switch, RS485 + dry contact, 3-12V trigger, central control

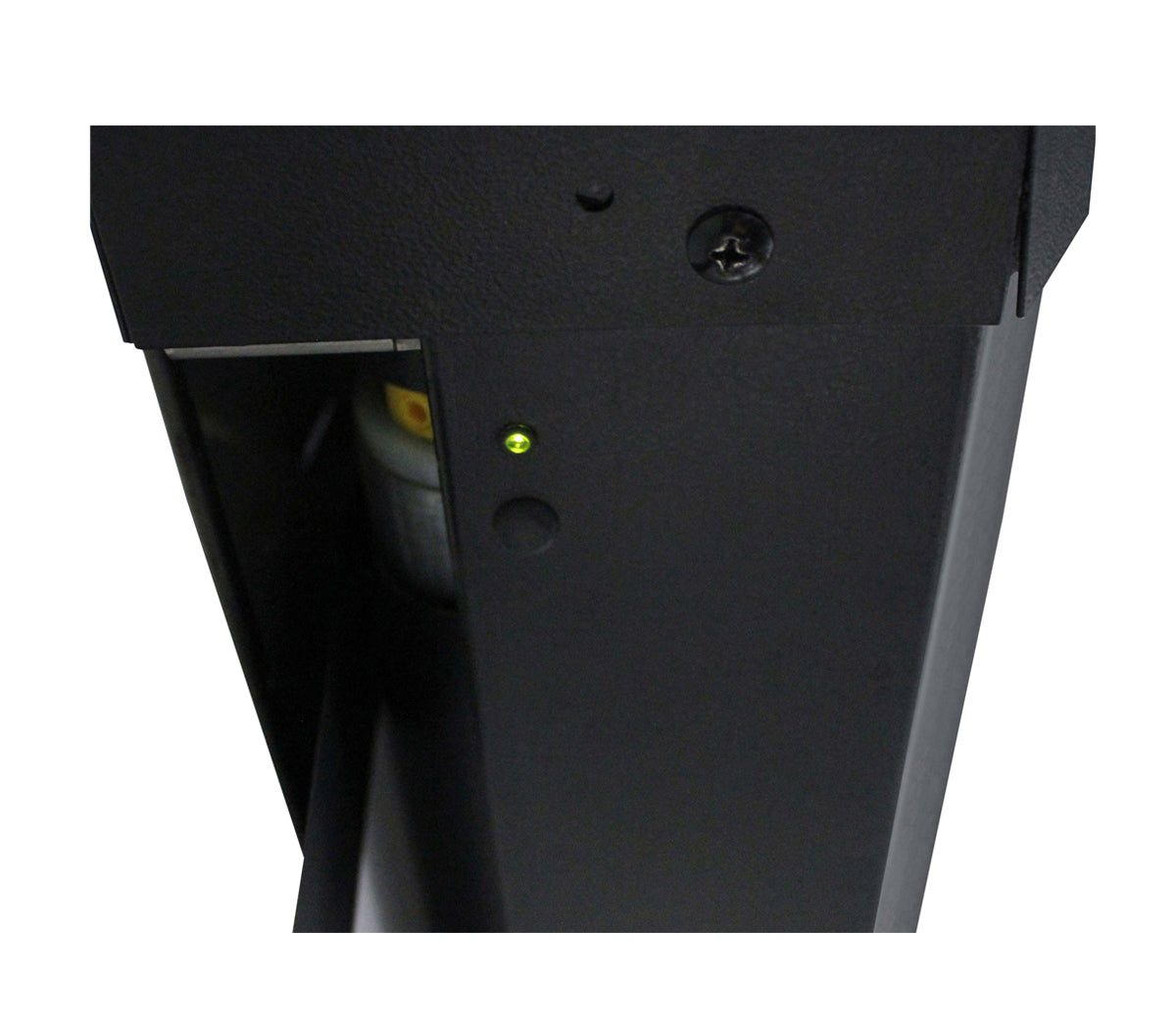

- Self-winding cable rigging with separate motor and brake mechanism, up to 5m drop
- Grandview standard limited manufacturer warranty
- Motorized Skyshow A/B screen with self-winding cable system
- RF Remote Control
- Limit Adjustment Tool
- Brake Mechanism
- Cable Box
Standard accessories
- RF Remote Control
- Limit Adjustment Tool
- Brake Mechanism
- Cable Box
Optional accessories
- Wall Switch
- Multimedia Cable Box
- Power Synchro Relay
