  5. Epson EB-EV115 WXGA Digital Signage Projector
By Epson

Epson EB-EV115 WXGA Digital Signage Projector

RM11,024.00
RM11,024.00

This digital signage projector is built for creating dynamic, eye-catching visual displays in commercial environments. Its high brightness ensures visibility even in well-lit spaces, making it well suited to retail, hospitality, and public-facing installations.
Total: MYR 11,024.00
Reference Number:Epson029
SKU: E0025
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
EpsonEpson EB-U50 WUXGA Digital Signage Projector
EB-U50
EB-800F
EpsonEpson EB-800F Full HD Laser Ultra Short Throw Projector
EB-EV115
RM11,024.00
RM11,024.00
  • A compact, cylindrical laser projector purpose-built for digital signage, accent lighting, and projection mapping — the EV-115 mounts unobtrusively on ceilings, walls or lighting tracks and is engineered for long, unattended runtimes in retail, hospitality, and visitor-attraction spaces.
  • Compact, Discreet Form FactorA small cylindrical housing that blends into ceilings, walls, and lighting tracks instead of a bulky projector body.
  • Laser Light SourceUp to 20,000 hours (Normal/Quiet) or 30,000 hours (Extended) — built for long-duration, always-on signage use.
  • Motorised Zoom, Focus & KeystonePowered 1.58x optical zoom plus wide ±40°/±45° keystone correction make it easy to fine-tune the image remotely after installation.
  • SD Card & USB PlaybackDisplay images and video directly from an SD card or USB drive — no PC required.
  • Web & Crestron ControlManage brightness, content, and settings remotely over the network via web browser or Crestron integration.

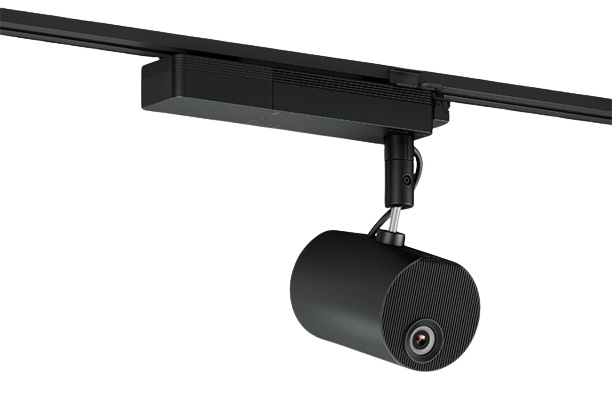

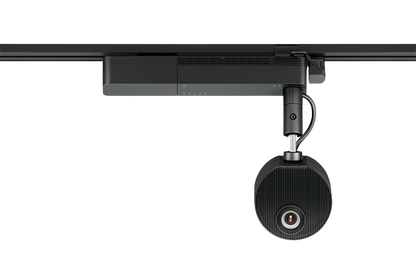

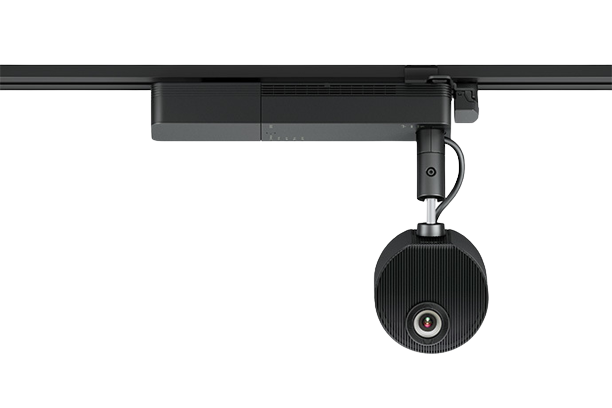

  • Flexible MountingCeiling, floor, lighting-track, or wall mounted, with 360° rotation for creative placement.
  • High-Contrast WXGA ImageUp to 2,500,000:1 dynamic contrast for vivid, sharp visuals and accent lighting effects.
  • Technology
    • RGB liquid crystal shutter projection system (3LCD)
    • LCD Panel Size: 0.59″ diagonal
  • Image
    • Native Resolution: WXGA (1280 x 800) x3 panels
    • Aspect Ratio: 16:10
    • Brightness (Normal): 2,200 lm
    • Brightness (Quiet/Extended): 1,100 lm
    • Contrast Ratio: Up to 2,500,000:1 (Dynamic Contrast)
    • Light Source: Laser
    • Light Source Life: 20,000 hrs (Normal/Quiet) / 30,000 hrs (Extended)
  • Projection Lens
    • Throw Ratio: 1.38–2.19:1
    • Zoom: 1–2.21x Electric (1–1.58x Optical + 1–1.4x Digital)
    • F-Number: 1.51–1.92
    • Focal Length: 18.2–28.4 mm
    • Keystone Correction: ±40° Horizontal, ±45° Vertical
    • Screen Size: 30″–150″
    • Projection Distance: 0.88m–4.51m

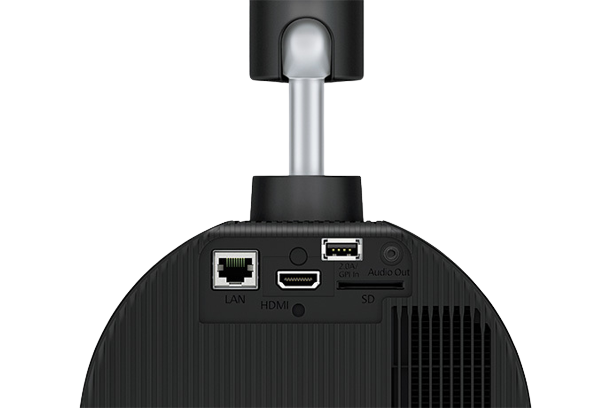

  • Connectivity
    • Digital Input: HDMI x1
    • SD Card Slot: Yes
    • Network: LAN (RJ-45)
    • Wireless LAN: 802.11a/b/g/n (up to 150Mbps)
    • Bluetooth: 4.2
    • USB: Type-A + Mini Type-B
    • Audio Output: Stereo
    • Remote Management: Web Control, Web Remote, Crestron
  • General
    • Dimensions: 175mm (Diameter) x 260mm (Depth), projection unit
    • Weight: Approx. 5.0 kg
    • Power Consumption: 150W (100–120V) / 149W (220–240V)
    • Fan Noise (Normal/Quiet): 34dB(A) / 22dB(A)
    • Mounting: Ceiling, Floor, Lighting Track, Wall Mounted; 360° rotation

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's actual zoom lens throw ratio (1.38–2.19:1).

    —
    —

    Figures are estimates based on manual zoom range and a WXGA (85% width-to-diagonal) aspect ratio. Confirm exact placement with Epson's official projection calculator or a dealer before installation.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)
    • Standard: 3-year on-site warranty included
    • Laser Light Source warranty: 20,000 hours or 36 months, whichever comes first
    • View CoverPlus extension options
    • Must be purchased before your standard warranty expires

    • Download Brochure (PDF)

    Download User Manual

    ELPMB66B Light Track Mount (Black)
    ELPMB66B Light Track Mount (Black)
    What is the EB-EV115 best suited for?
    The EB-EV115 is a compact signage-style display projector, positioned for always-on retail and branded visual displays rather than a typical meeting-room setup.
    What resolution does the EB-EV115 project at?
    The EB-EV115's native resolution is WXGA.
    How far from the screen does the EB-EV115 need to be placed?
    It has a throw ratio of 1.38–2.19:1 (zoom lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    Does the EB-EV115 use a lamp or a laser light source?
    This model uses a laser light source rather than a replaceable lamp, so there's no lamp to swap out over its rated life.
    What warranty comes with the EB-EV115?
    Includes a 3-year on-site warranty, plus a laser light-source warranty of 20,000 hours or 36 months. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
