  5. Epson EB-770Fi WXGA Laser Interactive Ultra Short Throw Projector
By Epson

Epson EB-770Fi WXGA Laser Interactive Ultra Short Throw Projector

RM16,799.00
RM16,799.00

This ultra-short-throw (UST) laser interactive projector projects large images from a very short distance, ideal for space-limited classrooms and meeting rooms. The laser light source offers better color accuracy, higher brightness, and quick start-up and shutdown compared to lamp-based models, while interactive touch capability lets users control content directly on the screen.
Total: MYR 16,799.00
Reference Number:Epson024
SKU: 770Fi
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

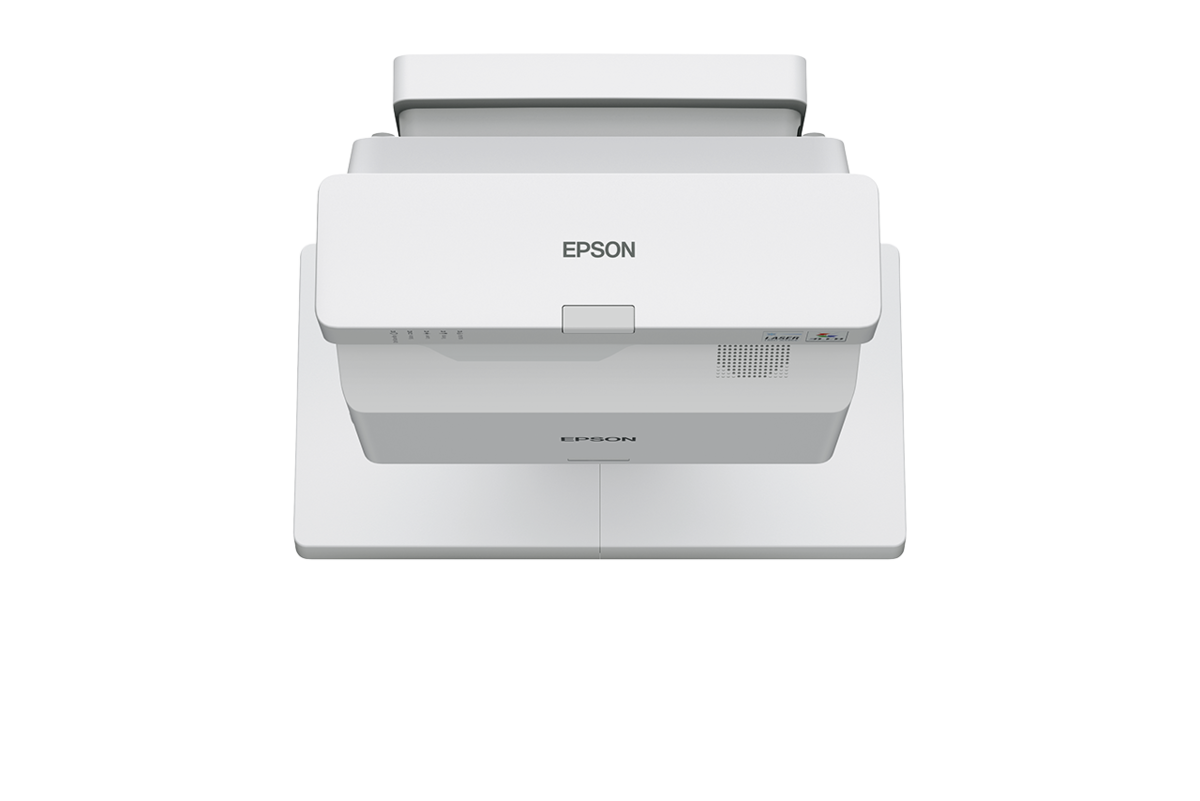

EpsonEpson EB-760W WXGA Laser Ultra Short Throw Projector
EB-760W
EB-695Wi
EpsonEpson EB-695Wi WXGA Interactive Ultra Short Throw Projector
EB-770Fi
RM16,799.00
RM16,799.00
  • A Full HD ultra-short-throw laser interactive display that turns any wall into a large, touch-enabled screen — the EB-770Fi is built for classrooms and training rooms where space is tight but engagement still needs to be big.
  • Interactive Touch UnitWith the included Touch Unit, up to 6 users can write, draw and interact directly on the screen using pen or finger — no extra software required on the connected device.
  • Full HD Laser Image1920 x 1080 resolution combined with 4,100 lumens of colour and white brightness delivers crisp, vivid visuals even with the lights on.
  • Laser Light SourceUp to 20,000 hours (Normal/Quiet) or 30,000 hours (Extended) of maintenance-free use, with instant on/off and no lamp replacements.
  • Ultra-Short Throw PlacementMounted just centimetres from the wall, it eliminates shadows and glare from presenters standing in front of the screen.
  • Easy Interactive Tools & WhiteboardAnnotate over any source, or use the built-in whiteboard mode to write, save and share notes without a connected PC.
  • Flexible Aspect RatiosSupports 16:9, 4:3, 16:10, 16:6 and ultra-wide 21:9 formats, useful for split-screen teaching layouts.
  • Built-In WirelessDual-band Wi-Fi and screen mirroring make it easy to connect laptops, tablets and phones without extra hardware.
  • Technology
    • 3-chip 3LCD projection system (RGB liquid crystal shutter)
    • LCD Panel Size: 0.62" (2,073,600 dots)
  • Image
    • Native Resolution: Full HD (1920 x 1080)
    • Aspect Ratio: 16:9 (also supports 4:3, 16:10, 16:6, ultra-wide 21:9)
    • Brightness (Colour/White, Normal): 4,100 lm
    • Brightness (Quiet/Extended): 2,800 lm
    • Contrast Ratio: Over 2,500,000:1
    • Light Source: Laser Diode (up to 97W, 449–461nm)
    • Light Source Life: 20,000 hrs (Normal/Quiet) / 30,000 hrs (Extended)
  • Projection Lens
    • Throw Ratio: 0.25–0.35:1 (Fixed, Ultra Short Throw)
    • Digital Zoom: 1.0–1.35x (manual)
    • Screen Size: up to 150" (varies by aspect ratio)
  • Interactive
    • Touch Unit: ELPFT01 (optional accessory)
    • Input: Pen or finger touch, up to 6 users simultaneously
    • Software: Easy Interactive Tools (Win/Mac), Easy Interactive Driver (Mac)
    • Whiteboard: Supports JPEG, PNG, PDF and EWF2 formats up to 1920 x 1080
  • Connectivity
    • HDMI: 3x
    • USB Type-B: 2x (plus TCH port for Touch Unit)
    • USB Type-A: 1x
    • Analog Input: D-Sub 15-pin
    • Composite Input: RCA
    • Audio Input/Output: Stereo mini-jack
    • Mic Input: Yes
    • Camera Input: Yes
    • Control I/O: RS-232C
    • Wired LAN: 100Base-TX
    • Wireless: 802.11b/g/n (2.4GHz) + 802.11a/n/ac (5GHz), WPA2/WPA3
  • General
    • Dimensions (max): 357 x 165 x 395 mm
    • Weight: Approx. 6.0 kg
    • Power Consumption: 277W (100–120V) / 263W (220–240V); Standby 0.5–2.0W
    • Fan Noise: 37dB (Normal/Extended) / 27dB (Quiet)

    • Estimate placement distance for your screen size, or find the ideal screen size for your available space — calculated from this projector's fixed lens throw ratio (0.25:1).

    —
    —

    Fixed lens (no optical zoom, manual focus). Screen size changes only by physically moving the projector closer to or further from the screen, at a fixed 0.25:1 throw ratio. This model also offers up to 1.4x digital zoom to shrink the image further at a given distance, but digital zoom reduces image quality and isn't reflected in the figures above.

  • What's in the Box
    • Projector unit
    • Power cable
    • Remote control with batteries
    • User documentation
  • Extended Warranty (Epson CoverPlus)
    • Standard: 3-year on-site warranty included
    • Laser Light Source warranty: 12,000 hours or 36 months, whichever comes first
    • View CoverPlus extension options
    • Must be purchased before your standard warranty expires

    • Download Brochure (PDF)

    Download User Manual

    ELPFT01 Finger Touch Unit
    ELPFT01 Finger Touch Unit
    ELPMB62 UST Setting Plate
    ELPMB62 UST Setting Plate
    ELPAF60 Air Filter
    ELPAF60 Air Filter
    What is the EB-770Fi best suited for?
    The EB-770Fi is an ultra-short-throw interactive projector that sits right beneath the screen and supports writing and annotating directly on the projected image — suited to classrooms and training rooms.
    What resolution does the EB-770Fi project at?
    The EB-770Fi's native resolution is Full HD (1080p).
    How far from the screen does the EB-770Fi need to be placed?
    It has a throw ratio of 0.25–0.35:1 (fixed lens). Use the Distance Calculator tab on this page to work out the exact placement distance for your screen size, or the screen size you'll get at a given distance.
    Does the EB-770Fi use a lamp or a laser light source?
    This model uses a laser light source rather than a replaceable lamp, so there's no lamp to swap out over its rated life.
    What warranty comes with the EB-770Fi?
    Includes a 3-year on-site warranty, plus a laser light-source warranty of 12,000 hours or 36 months. Extended CoverPlus warranty options are also available — see the Package Content & Extended Warranty tab on this page, or ask us before your standard warranty expires.
    Is the EB-770Fi interactive?
    Yes — the EB-770Fi supports writing and annotating directly on the projected image using its included interactive tools, which is why it's positioned for classrooms and training rooms.
