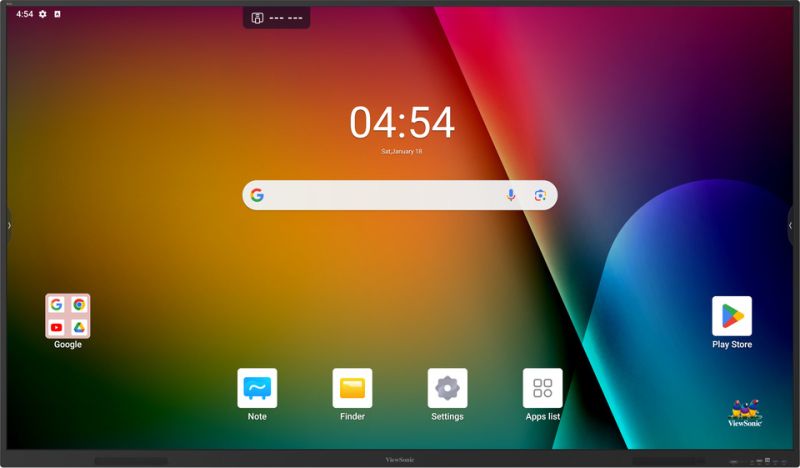

ViewBoard IN8603-1C

Enquire for price

Google Certified EDLA ViewBoard 86-inch 4K interactive display, built for Android/Google-based classroom and meeting room deployments.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "ViewBoard IN8603-1C".
Total: MYR 0.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

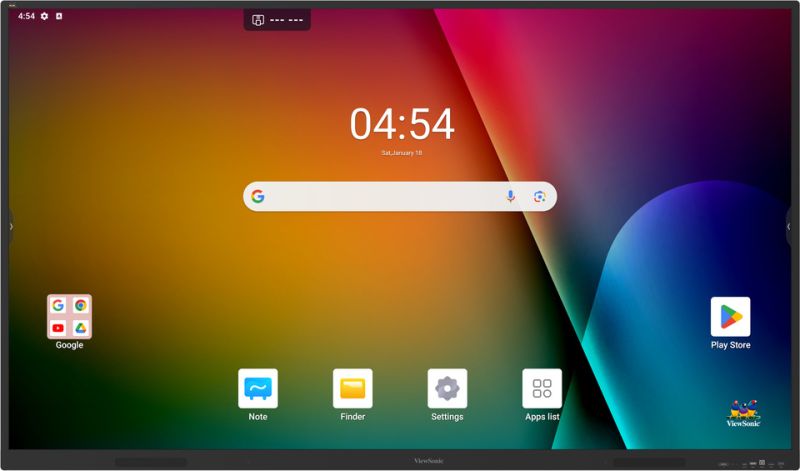

ViewSonicViewBoard IN7503-1C
ViewBoard IN7503-1C
IN8621C-2C
ViewSonicIN8621C-2C
ViewBoard IN8603-1C
Enquire for price
  • A Google EDLA-certified 86" 4K interactive display sized for large classrooms, lecture halls, and boardrooms — the IN8603-1C pairs precise 50-point touch with a built-in Android workspace and OPS expansion, so big-room collaboration doesn't need extra hardware.
  • 4K UHD IPS Panel at 86"An IPS panel at 480 nits keeps content crisp and legible with wide, consistent viewing angles across a large room.
  • 50-Point Ultra Fine TouchSimultaneous 50-point touch enables natural multi-user writing across a big canvas.
  • Android 14 EDLA CertifiedFull Google Play access with enterprise-grade security and over-the-air updates.
  • Expandable with OPS Slot-In PCAdd an optional Windows OPS module to run desktop software natively.
  • Practical ConnectivityHDMI, VGA, USB-C, and RJ45 ports support laptops, cameras, and network device management.
  • Built-In Speaker System with SubwooferA 15W x2 plus 25W subwoofer configuration delivers fuller audio for large-room presentations.
  • ENERGY STAR CertifiedMeets efficiency standards for sustainable large-format deployments.
  • Display
    • Screen Size: 86"
    • Panel Type: IPS
    • Native Resolution: 3840 x 2160 (4K UHD)
    • Brightness: 480 nits
    • Contrast Ratio: 5000:1 (max, DCR enabled)
    • Response Time: 5ms
    • Surface Hardness: 9H Anti-glare coating
    • Color Support: 1.07 billion colors
  • Touch
    • Technology: Ultra Fine Touch (Infrared)
    • Touch Points: 50-point simultaneous touch (Windows & Android)
  • OS/Compute
    • Operating System: Android 14, EDLA certified
    • Processor: Octa-core CPU
    • RAM: 8GB DDR4
    • Internal Storage: 128GB
    • OPS Slot: 1x (optional Intel-standard slot-in PC module)
  • Connectivity
    • HDMI: 2x input (HDMI 2.0, CEC), 1x output
    • VGA/RGB: 1x input
    • DisplayPort: n/a (rear I/O via HDMI/OPS)
    • USB-A: 4x (USB 3.2 Gen 1)
    • USB-B: 2x (USB 2.0)
    • USB-C: 1x (PD 15W)
    • RS232: 1x
    • RJ45 (LAN): 1x
    • SD/SDHC Slot: 1x
  • Audio
    • Built-In Speakers: 15W x 2 + 25W subwoofer
    • Audio Output: 1x
    • S/PDIF: 1x output
  • Physical/Power
    • Dimensions: 1957 x 1159 x 98.8 mm
    • Net Weight: 53.6 kg
    • VESA Mounting Pattern: 800 x 600 mm
    • Power Input: 100-240V AC
    • Power Consumption: 240W (normal operation)
    • Certifications: BIS, ENERGY STAR
  • What's in the Box
    • ViewBoard IN8603-1C interactive display
    • Remote control with batteries
    • Power cord
    • Touch pens (x2)
    • USB cable (Type-A to Type-B)
    • Wall mount bracket and screws
    • Quick start guide

    • Download Brochure (PDF)

    Download User Manual
