ViewBoard IFP92UW

Enquire for price

ViewBoard® 92-inch 5K interactive display for large meeting rooms and lecture halls, delivering ultra-sharp detail across an expansive screen.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "ViewBoard IFP92UW".
Total: MYR 0.00
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

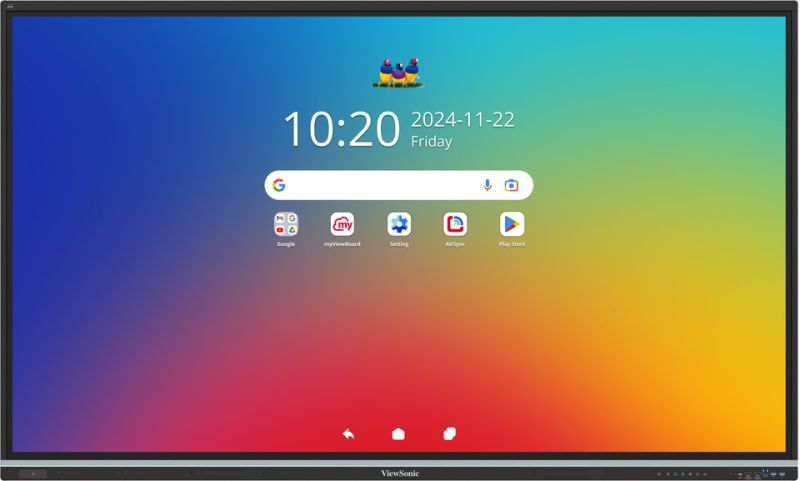

ViewSonicIFP8651
IFP8651
ViewBoard IFP9841-1-1C
ViewSonicViewBoard IFP9841-1-1C
ViewBoard IFP92UW
Enquire for price
  • The ViewBoard IFP92UW is a 92" 5K ultrawide interactive display with a 21:9 aspect ratio — built to show two full-height documents or apps side by side without shrinking either one, backed by an 8-microphone array and a 60W sound system.
  • 21:9 5K Ultrawide Canvas5120 x 2160 resolution across a 92" panel gives two side-by-side workspaces, each with the height of a standard 16:9 display.
  • 50-Point IR TouchMultiple users can write, draw, and gesture across the wide canvas at the same time.
  • 8-Microphone Beamforming ArrayBuilt-in far-field microphones capture voices clearly across the room for video calls.
  • 60W Integrated Sound SystemA dual-speaker plus subwoofer setup fills meeting and training rooms with clear audio.
  • Dual USB-C ConnectivityFront and rear USB-C ports carry video, data, and power delivery for a clean, cable-light setup.
  • Upgradeable OPS SlotAdd an optional slot-in PC module to run a full desktop OS without external hardware.
  • Display
    • Screen Size: 92" diagonal, 21:9 ultrawide
    • Panel: TFT LCD with DLED backlight, VA technology
    • Native Resolution: WUHD 5120 x 2160 (5K)
    • Brightness: 500 nits (typical)
    • Contrast Ratio: 5,000:1 (typical)
  • Touch
    • Technology: IR Recognition
    • Touch Points: Up to 50 points (Windows)
    • Touch Resolution: 32767 x 32767
  • OS & Compute
    • Processor: Rockchip RK3588, Octa-core
    • Memory: 8GB DDR4 RAM
    • Storage: 128GB eMMC
    • OS: Android 13
    • Expansion: OPS slot for optional slot-in PC module
  • Connectivity
    • HDMI: 4 rear ports (1x HDMI 2.1, 3x HDMI 2.0)
    • DisplayPort: 1
    • USB-C: 2 (front and rear, with power delivery)
  • Audio
    • Speakers: 60W soundbar (20W x 2 + 20W subwoofer)
    • Microphone: Built-in 8-array microphone
  • Physical & Power
    • Dimensions: 86.73" x 39.37" x 3.62" (2202 x 1000 x 92mm approx.)
    • Net Weight: 67kg (147.7 lb)
    • VESA Mount: 800 x 600mm
  • What's in the Box
    • ViewBoard IFP92UW display unit
    • Remote control with battery
    • Power cord
    • USB touch cable
    • HDMI cable
    • Touch pen(s)
    • Wall-mount hardware
    • Quick start guide & compliance statement
  • Note
    • Exact cable lengths and accessory counts may vary by region — contact us to confirm before installation.
