1. Home
  3. Grandview
  5. Grandview Premium Series Recessed Tab-Tension Screen
By Grandview

Grandview Premium Series Recessed Tab-Tension Screen

Enquire for price

The Premium Series Recessed Tab-Tension Screen is built for concealed in-ceiling installation, with a patented Separated Casing design that minimizes noise and vibration and an aluminum casing for commercial-grade durability. The tab-tension mechanism provides a flat, stable viewing surface with straightforward tension adjustment. Available in a wide range of sizes across 4:3, 16:9, and 2.35:1 aspect ratios, with IR/RF/RS485, dry contact, and 3-12V trigger control options, and fabric choices including UHD130, WW5, GG3, and AW6.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "Grandview Premium Series Recessed Tab-Tension Screen".
Total: MYR 0.00
SKU: PRT
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

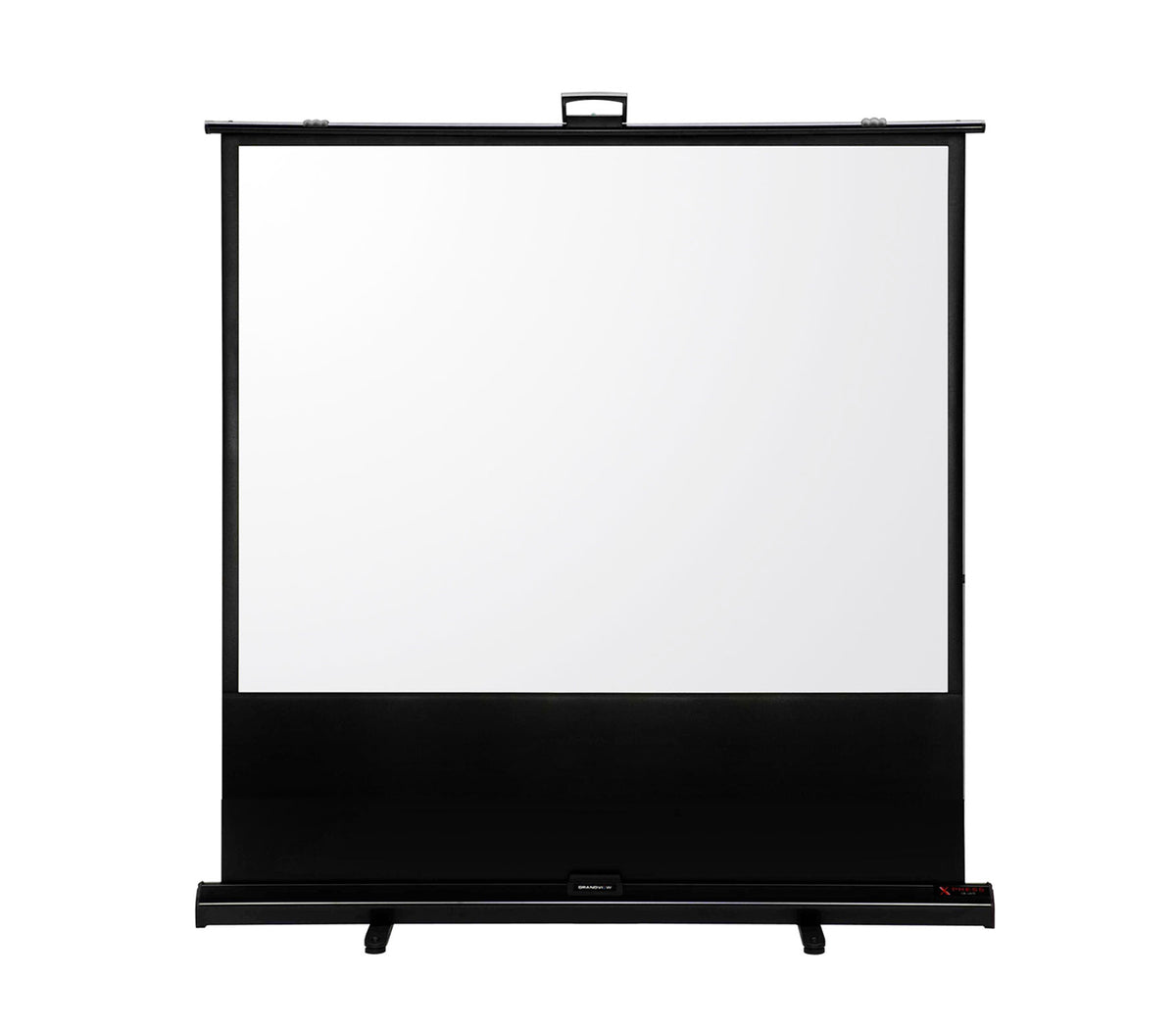

GrandviewGrandview Portable Series X/Y-Press Pull-Up Screen
Grandview Portable Series X/Y-Press Pull-Up Screen
Grandview Portable Series Pull-Up Screen
GrandviewGrandview Portable Series Pull-Up Screen
Grandview Premium Series Recessed Tab-Tension Screen
Enquire for price
  • The Premium Series Recessed Tab-Tension Screen delivers a flat, taut viewing surface from a fully concealed in-ceiling housing, built for commercial-grade reliability.
  • Patented Separated CasingAn isolated casing design minimizes operational noise and vibration during deployment and retraction.
  • Tab-Tension FlatnessA built-in tension adjustment mechanism keeps the fabric perfectly flat and taut for a distortion-free image.
  • Aluminum Casing ConstructionAluminum housing provides commercial-grade durability for frequent-use environments.
  • Wide Fabric SelectionChoose from UHD130, WW5, GG3, or AW6 fabrics across 4:3, 16:9, and 2.35:1 aspect ratios to match your room and projector.
  • Recess/Housing
    • Patented Separated Casing design, aluminum casing
    • Two installation profiles: Type I and Type II (differing housing heights)
    • Example 100" 16:9 — product height ~2209-2228mm, black drop 700mm, product length 2833mm, left/right borders 80mm each
    • Endcap dimensions: 161-180mm height x 170-171mm width
  • Fabric
    • UHD130 — 1.3 gain, 130° viewing angle
    • WW5 — 1.0 gain, 160° viewing angle
    • GG3 — 0.8 gain, 160° viewing angle
    • AW6 — 0.8 gain, 150° viewing angle
  • Available Sizes
    • 4:3 — 84", 100", 120", 138", 150"
    • 16:9 — 80", 92", 100", 106", 120", 150"
    • 2.35:1 — 100", 110", 120", 130", 140"
  • Control
    • Infrared (IR) remote
    • RF wireless remote
    • RS485 + dry contact
    • Voltage trigger
  • Mounting / Ceiling Clearance
    • Concealed in-ceiling recessed mount
    • Tension adjustment mechanism included for post-install fine-tuning
  • Warranty
    • Grandview manufacturer's limited warranty — contact your Grandview dealer for coverage terms
  • What's in the Box
    • Premium Series recessed tab-tension screen (housing + fabric assembly)
    • IR remote control
    • IR receiver
    • Trigger cable
    • Wrench

    • Download User Manual

    More manuals & downloads

    Premium Series Recessed Tab-Tension Screen (II) User Manual (PDF)

    Standard accessories

    • IR Remote Control
    • IR Receiver
    • Trigger Cable
    • Wrench
