  5. Grandview Hidetech Series Recessed Tab-Tension Screen
By Grandview

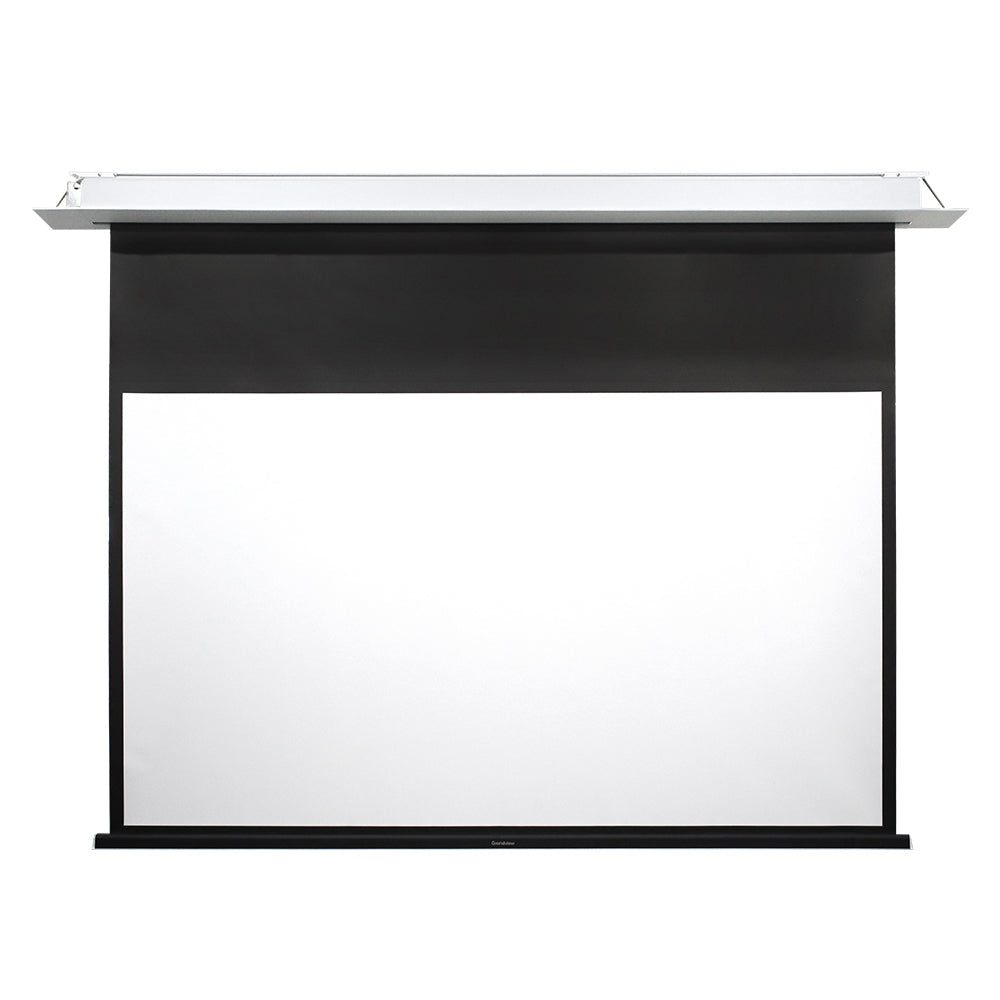

Grandview Hidetech Series Recessed Tab-Tension Screen

Enquire for price

The Hidetech Series Recessed Tab-Tension Screen blends seamlessly into any ceiling with a fully concealed in-ceiling design, using a patented Separated Casing construction to reduce noise and vibration during operation. Built with aluminum casing and aluminum endcaps, it delivers commercial-grade durability with tab-tension technology for a flat, taut viewing surface. Sizes range from 92" to 200" diagonal, with IR, RF, RS485/dry contact, and central control options, and support for both standard and ALR (Ambient Light Rejection) fabrics including UHD130, WW5, GG3, and the DY-series.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "Grandview Hidetech Series Recessed Tab-Tension Screen".
Total: MYR 0.00
SKU: HTT
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

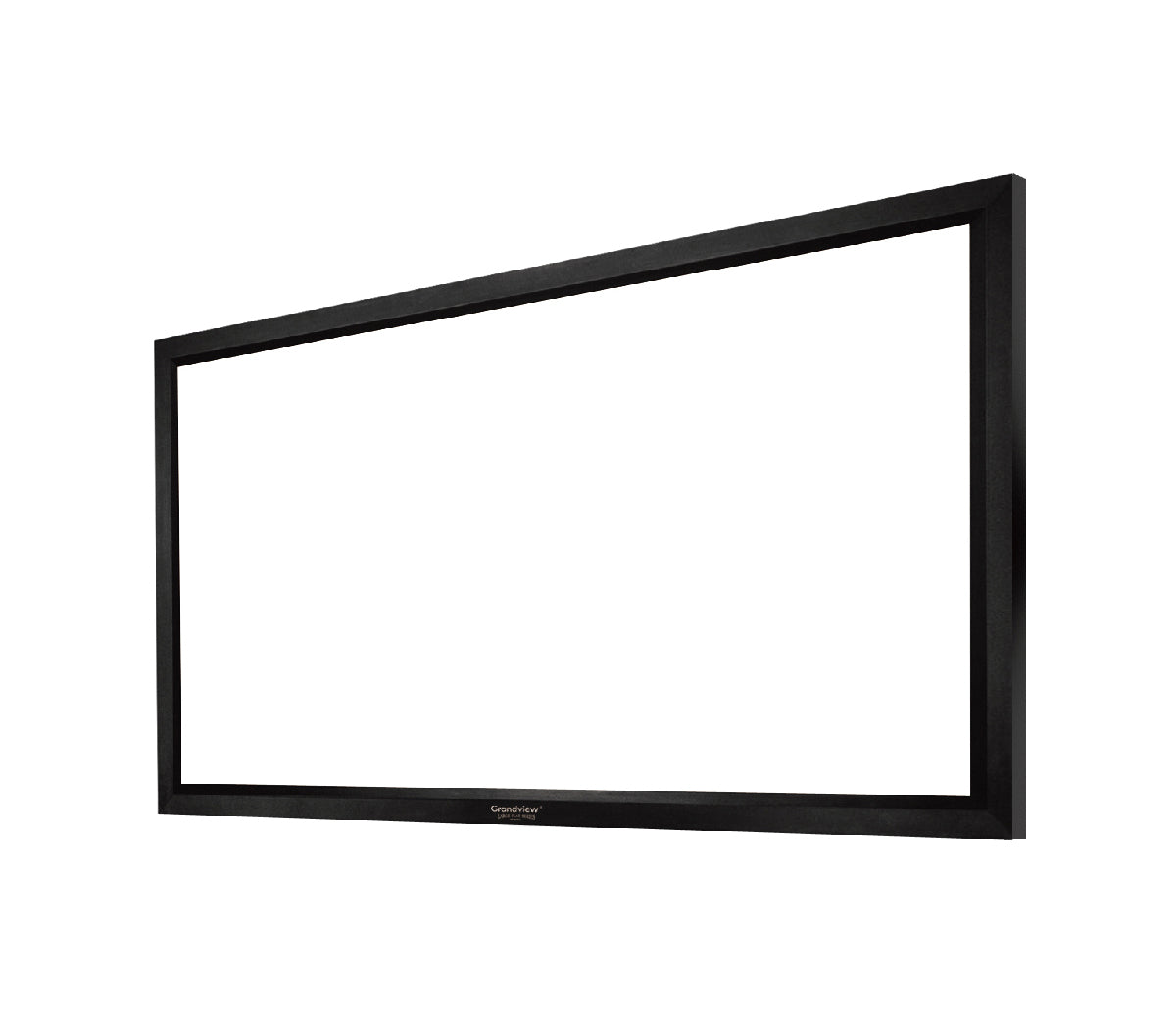

GrandviewGrandview Prestige Series Fixed Frame Screen
Grandview Prestige Series fixed frame screen - front view

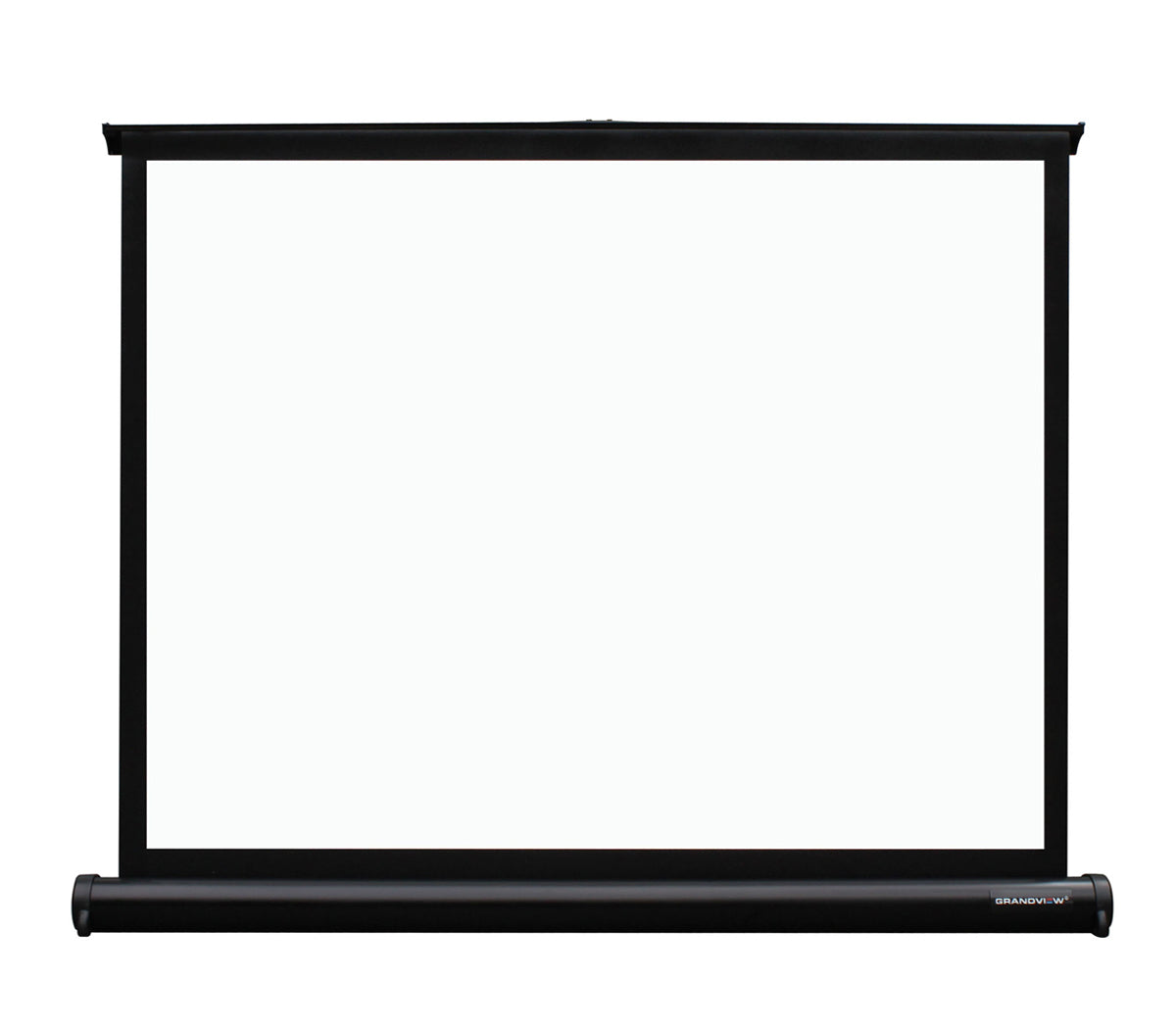

Grandview Portable Series U-WORK Tabletop Screen
GrandviewGrandview Portable Series U-WORK Tabletop Screen
Grandview Hidetech Series Recessed Tab-Tension Screen
Enquire for price
  • The Hidetech Series Recessed Tab-Tension Screen combines a fully concealed in-ceiling design with tab-tension technology, delivering a perfectly flat, taut viewing surface that disappears into the ceiling when not in use.
  • Patented Separated CasingAn isolated casing construction reduces operational noise and vibration for quieter, smoother screen deployment.
  • Commercial-Grade Aluminum BuildAluminum casing and aluminum endcaps provide long-term structural durability for demanding installations.
  • Tab-Tension FlatnessTab-tensioned fabric stays taut edge-to-edge, eliminating waves and ripples for a consistently sharp image across sizes up to 200".
  • Standard and ALR Fabric OptionsChoose from standard WW5/GG3 fabrics or ambient-light-rejecting UHD130 and DY-series fabrics to match any lighting environment.
  • Recess/Housing
    • Patented Separated Casing design — aluminum casing and aluminum endcaps

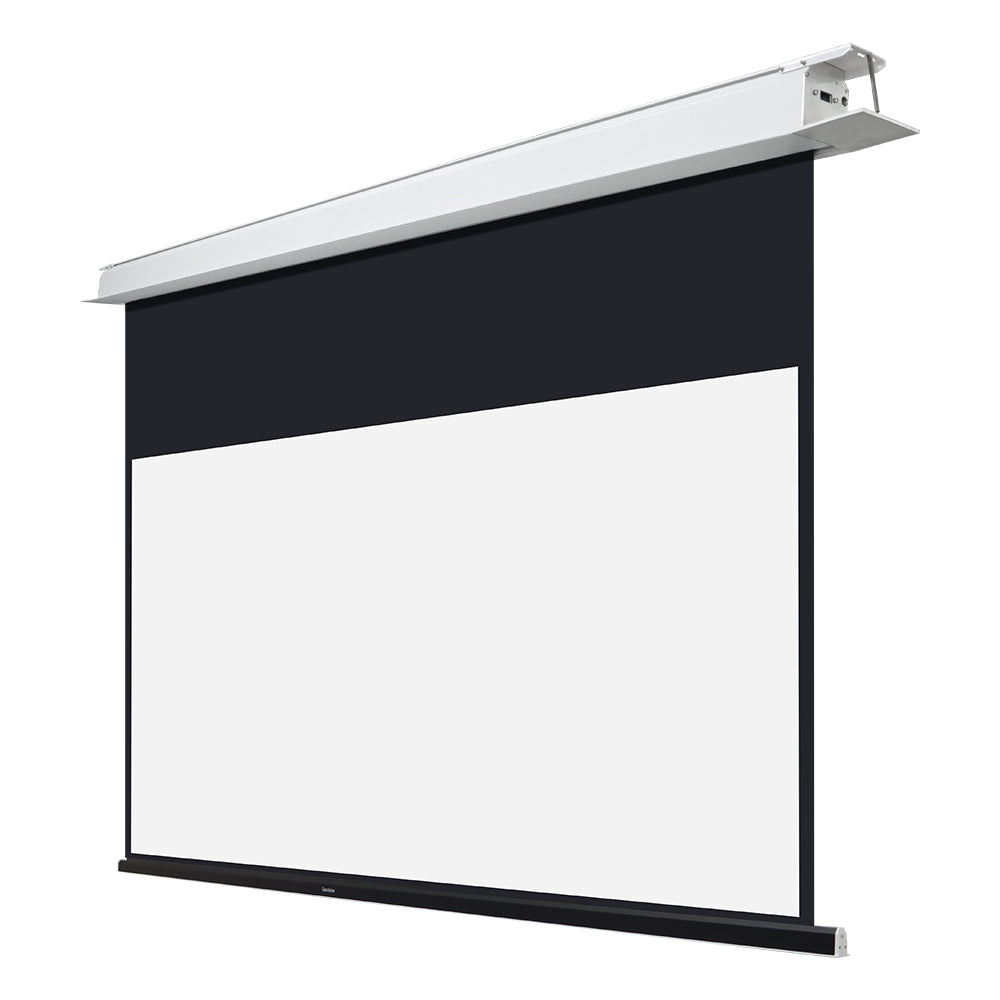

    • Concealed in-ceiling installation
  • Fabric
    • UHD130 — 1.3 gain, 130° viewing angle (ALR)
    • WW5 — 1.0 gain, 160° viewing angle
    • GG3 — 0.8 gain, 160° viewing angle
    • DY4 — 0.6 gain, 50° viewing angle (ALR)
    • DY7 — 1.2 gain, 50° viewing angle (ALR)
  • Available Sizes
    • Diagonal range: 92" to 200"
    • Formats: 4:3, 16:9, 16:10, 2.35:1
    • Example 16:9 viewing areas — 92": 2037×1146mm, 120": 2656×1494mm, 180": 3985×2241mm
  • Control
    • Infrared (IR) remote
    • RF wireless remote
    • RS485 + dry contact
    • Central control compatible
    • Optional USB trigger
  • Mounting / Ceiling Clearance
    • Fully concealed in-ceiling recessed mount
    • Tension adjustment mechanism for fine-tuning fabric flatness after install
  • Warranty
    • Grandview manufacturer's limited warranty — contact your Grandview dealer for coverage terms
  • What's in the Box
    • Hidetech Series recessed tab-tension screen (housing + fabric assembly)
    • IR remote control
    • Limit adjustment tool
    • Allen key
    • Brush accessory (ALR fabric models)

    • Download Brochure (PDF)

    Download User Manual

    More manuals & downloads

    Product Catalog (ALR) (PDF)

    Hidetech Recessed Tab-Tension Screen (ALR) (PDF)

    USB Wireless Trigger User Manual (PDF)

    Hidetech Model A1 Tab-Tension (U+IR) User Manual – HT-MI / HT-MF (PDF)

    Hidetech Model A2 Tab-Tension (U+IR) User Manual – HT-MI / HT-MF (PDF)

    Hidetech Model B2 Tab-Tension (A) User Manual – HT-MF (PDF)

    Hidetech Model BII Tab-Tension User Manual – HT-M xxx II (PDF)

    Standard accessories

    • IR Remote Control
    • Limit Adjustment Tool
    • Allen Key
    • Wireless Remote

    Optional accessories

    • USB Trigger
