  5. Grandview Hidetech Series Recessed Motorized Screen
By Grandview

Grandview Hidetech Series Recessed Motorized Screen

Enquire for price

The Hidetech Series Recessed Motorized Screen features an in-ceiling mounting system that keeps the screen fully concealed when not in use, maintaining a clean interior aesthetic. An S-curve motor control mechanism delivers smoother movement and reduces fabric strain, while wide voltage input (110-240V) eliminates the need for an external transformer. Smart control options include RS-485, dry contact, 433MHz RF, infrared, and 12V trigger, with fabric choices of WM5 matte white (1.0 gain) or GM5 matte grey (0.8 gain), both offering a 160° viewing angle.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "Grandview Hidetech Series Recessed Motorized Screen".
Total: MYR 0.00
SKU: HT-MF
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
GrandviewGrandview Ultimate Series Fixed Frame Screen

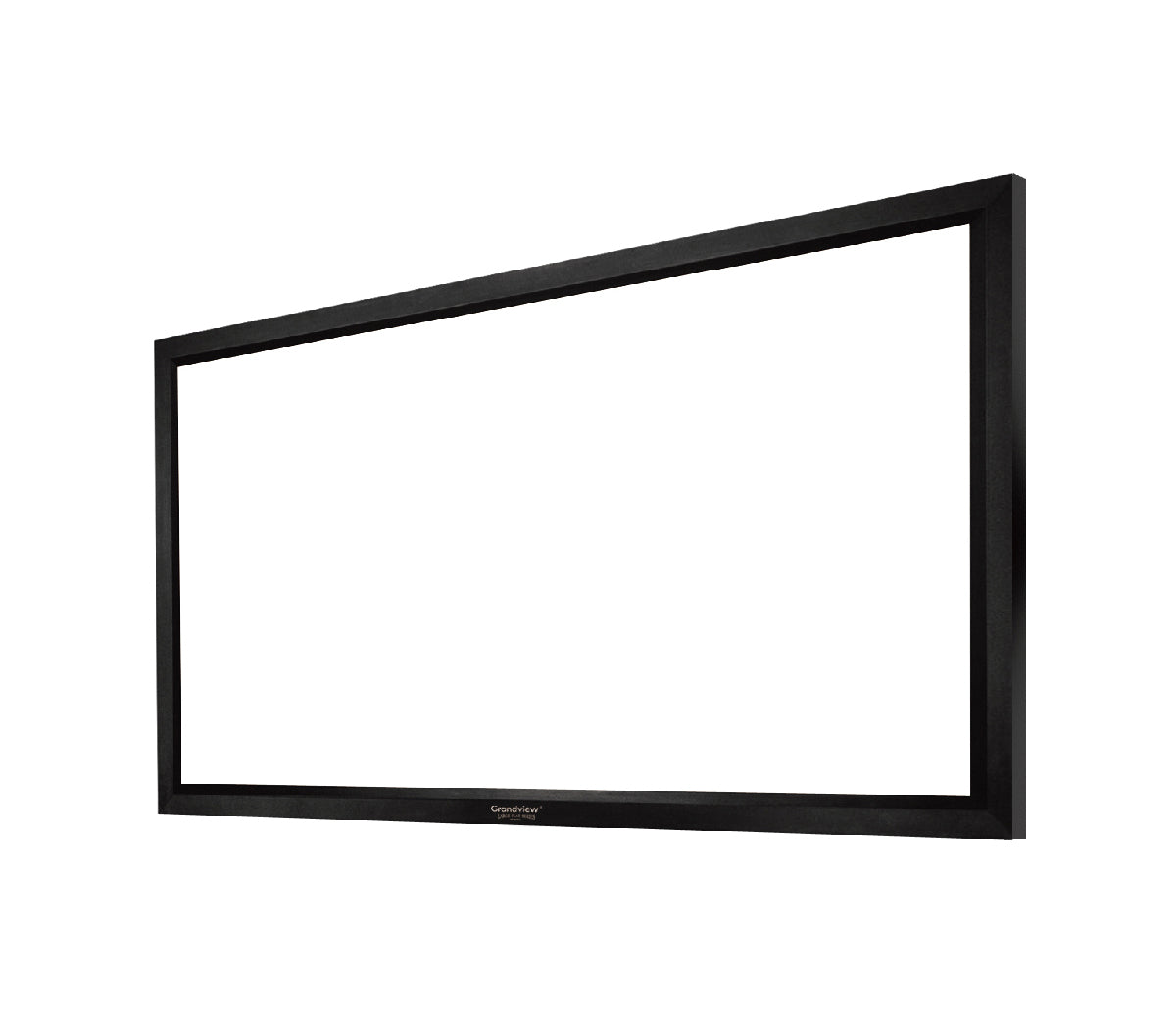

Grandview Ultimate Series fixed frame screen - front view
Grandview Prestige Series fixed frame screen - front view
GrandviewGrandview Prestige Series Fixed Frame Screen
Grandview Hidetech Series Recessed Motorized Screen
Enquire for price
  • The Hidetech Series Recessed Motorized Screen disappears into your ceiling when not in use, combining commercial-grade motor engineering with a fully concealed, in-ceiling design for a clean, uninterrupted room aesthetic.
  • S-Curve Motor ControlA smooth S-curve acceleration and deceleration profile reduces fabric strain and eliminates the jerky start/stop motion common in standard motorized screens.
  • Wide Voltage InputBuilt-in 110-240V wide voltage support means the screen works worldwide without an external transformer.
  • Multiple Smart Control OptionsOperate via RS-485, dry contact, 433MHz RF remote, infrared remote, or 12V trigger for seamless integration with home automation and control systems.
  • Premium Fiberglass FabricChoose WM5 matte white (1.0 gain) or GM5 matte grey (0.8 gain), both engineered for a 160° viewing angle and crisp, hot-spot-free image quality.
  • Recess/Housing Dimensions
    • Ceiling cut-out depth: 157mm (all sizes)
    • Recommended ceiling slot opening height: ≥157mm
    • Endcap height: 127mm
    • Endcap width: 105mm
  • Fabric
    • WM5 matte white — 1.0 gain, 160° viewing angle
    • GM5 matte grey — 0.8 gain, 160° viewing angle
  • Available Sizes
    • 4:3 — 84", 100", 120"
    • 16:9 — 80", 92", 100", 106", 110", 120", 133", 135"
    • 16:10 — 95", 103", 109", 113", 123", 137", 139"
    • 2.35:1 — 87", 100", 104", 114"
  • Control
    • RS-485
    • Dry contact
    • 433MHz RF wireless remote
    • Infrared (IR) remote
    • 12V trigger
  • Mounting / Ceiling Clearance
    • Concealed in-ceiling installation
    • Model designations: HT-MF (motorized) / HT-MI (motorized, IR)
  • Warranty
    • Grandview manufacturer's limited warranty — contact your Grandview dealer for coverage terms
  • What's in the Box
    • Hidetech Series recessed motorized screen (housing + fabric assembly)
    • Wireless RF remote control
    • IR remote control
    • Allen key
    • Mounting hardware

    • Download Brochure (PDF)

    Download User Manual

    More manuals & downloads

    USB Wireless Trigger User Manual (PDF)

    Hidetech Model A1 Motorized Screen (U+IR) User Manual – HT-MI / HT-MF (PDF)

    Hidetech Model A2 Motorized Screen (U+IR) User Manual – HT-MI / HT-MF (PDF)

    Hidetech BII Motorized (IP) User Manual – HT-MP / HT-MIR (PDF)

    Hidetech BII Motorized (MIR) User Manual – HT-MIR(xxx)BII (PDF)

    Hidetech BII Motorized User Manual – HT-M xxx II (PDF)

    Standard accessories

    • Wireless Remote
    • IR Remote
    • Allen Key
    • Ambient Light Rejection

    Optional accessories

    • USB Trigger
