By AVLink

WUH-3MXCU (Pair)

RM5,500.00
RM5,500.00

This uncompressed 4K@60Hz HDMI and USB-C extender pair with IR wall-mount transmitter supports distances up to 40 meters, includes USB 2.0 host extension, and features link and power indicators.
Total: MYR 5,500.00
SKU: EH0030
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
AVLinkWUH-3MLCU (Transmitter)

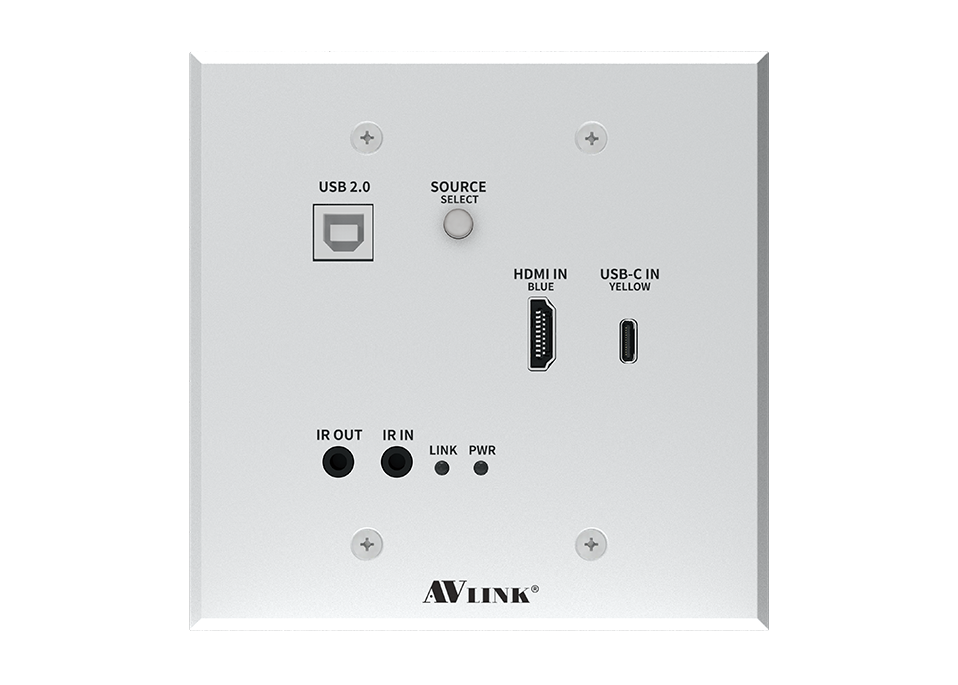

WUH-3MLCU Transmitter
WUH-3MXCU Pair
RM5,500.00
RM5,500.00
  • A 2-gang wall-plate extender that carries uncompressed 4K@60Hz 4:4:4 HDMI or USB-C video, plus USB 2.0 and IR, up to 40 metres over HDBaseT 3.0 — built for conference rooms and classrooms that need clean, dual-source wall connectivity.
  • Uncompressed 4K@60Hz 4:4:4Full-bandwidth 4K video with no compression artefacts, extended up to 40 metres over a single Cat.6A cable.
  • Dual HDMI / USB-C Input SwitchingAn illuminated push-button lets presenters switch instantly between an HDMI laptop and a USB-C source at the wall plate.
  • USB 2.0 Host ExtensionExtends a USB 2.0 host connection alongside video, ideal for touch displays and USB peripherals.
  • Power over Cable (PoC)Powers the link from a single side, simplifying installation where only one end has easy power access.
  • Full-Band IR Pass-ThroughTwo-way IR pass-through keeps remotes working across the extended link.
  • Broad HDCP CompatibilitySupports HDCP 1.4, 2.2 and 2.3 for compatibility with the widest range of protected 4K sources.
  • Compact 2-Gang Wall-Plate DesignMetal 2-gang housing with link and power LEDs fits neatly into standard wall boxes.
  • Video/HDMI
    • HDMI Version: 1.4 / 2.0 with HDR
    • Resolution: up to 4K@60Hz, 4:4:4
    • HDCP Compliant: 1.4 / 2.2 / 2.3
    • Bandwidth: up to 18Gbps
  • USB
    • USB Type-C Video Input: DisplayPort 1.2 Alt Mode
    • USB Host Extension: USB 2.0, Type-B
    • Illuminated push-button switching between HDMI and USB-C sources
  • Connectivity
    • Transmission: HDBaseT 3.0 over a single Cat.6A U/FTP cable
    • Cable Distance: up to 40m
    • Connectors: 1x HDMI-A, 1x USB-C, 1x RJ-45, 1x RS-232 (3-pole), 1x IR in/out (3.5mm)
    • Power over Cable (PoC) Supported
  • Control
    • IR Control: full frequency band pass-through
  • General/Physical
    • Dimensions: 120 x 120 x 37.5mm
    • Weight: 300g
    • Housing: Metal, 2-gang wall-plate
    • Link & power status LEDs
  • Power
    • Input: DC12V, 2A minimum
    • Power Consumption: 22W max / 2W standby
  • What's in the Box
    • 1x WUH-3MLCU wall-plate transmitter unit
    • 1x matching HDBaseT receiver unit
    • 2x DC12V power adapters
    • Mounting screws
    • User manual

    • Download Brochure (PDF)

    Download User Manual
