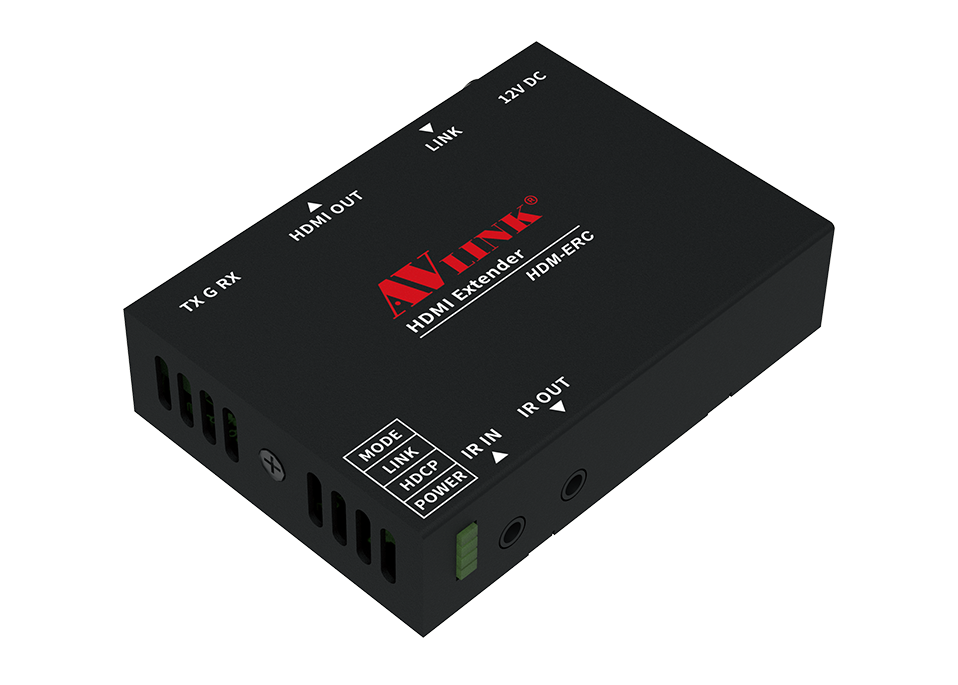

HDM-ERC (Receiver)

RM590.00
RM590.00

This HDBaseT receiver transmits uncompressed ultra-HD video, 3D video, digital audio, DC power, and RS-232 control over a single category cable (Cat5e/6/6a/7) up to 100 meters, supporting 4K@60Hz 4:2:0 and 4K@30Hz 4:4:4 with 3D and CEC pass-through.
Total: MYR 590.00
SKU: EH0023
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7
AVLinkHDM-ELC (Transmitter)
HDM-ELC Transmitter
HDM-EXC Pair
AVLinkHDM-EXC (Pair)
HDM-ERC Receiver
RM590.00
RM590.00
  • The remote (display-side) half of AVLink's single-cable HDBaseT extension system. This receiver takes the signal sent from a paired HDM-ELC transmitter (sold separately) over one Cat5e/6/6a/7 cable and outputs uncompressed Ultra-HD video, audio and control up to 100 metres from the source.
  • Single-Cable HDBaseT ReceptionRecovers HDMI video, audio, RS-232 and IR from a single Cat5e/6/6a/7 run, up to 100m from the source.
  • Ultra-HD Video OutputOutputs 4K/60Hz (4:2:0) or 4K/30Hz (4:4:4) with HDCP 1.4/2.2 compliance, plus 3D and CEC pass-through.
  • Bi-Directional RS-232 & IR Pass-ThroughSend control commands both ways along the same cable, with full frequency-band IR pass-through.
  • Power over Cable SupportPoC support simplifies cabling by allowing power to be carried between units where needed.
  • Compact Metal HousingDurable metal enclosure with a small footprint for desks, racks, or mounting behind a display.
  • Pairs With HDM-ELCDesigned to be used with the HDM-ELC transmitter (sold separately) to complete the extension link.
  • Video/HDMI
    • Max Resolution: 4K/60Hz (4:2:0) / 4K/30Hz (4:4:4)
    • HDCP Compliance: HDCP 1.4 / 2.2
    • 3D Pass-Through: Yes
    • CEC Pass-Through: Yes
    • HDMI Output: Type-A Female x1
  • Control
    • RS-232: Bi-directional pass-through (terminal block)
    • IR Control: Full frequency-band IR pass-through (IR receiver cable included)
  • Connectivity
    • Network Port: RJ-45 x1
    • Technology: HDBaseT 1.0
    • Transmission Cable: Single Cat5e/6/6a/7 cable
    • Pairs With: HDM-ELC transmitter (sold separately)
  • Power & Distance
    • Max Distance: Up to 100m over a single category cable
    • Power Input: DC 12V (locked connector)
    • Power over Cable (PoC): Supported
  • General/Physical
    • Housing: Metal enclosure
    • Dimensions (W x D x H): 89.2 x 63 x 22 mm
    • Weight: 183g
  • What's in the Box
    • 1x HDM-ERC Remote (Receiver) Unit
    • 1x DC 12V Power Adapter (locked connector)
    • IR Receiver Cable
    • RS-232 Terminal Block
    • Mounting Screws & Foot Pads
    • User Manual
  • Note
    • This is a standalone receiver unit. It must be paired with an HDM-ELC transmitter (sold separately) to form a complete extension link.

    • Download User Manual
