Grandview GPAD/AC 58 Series Telescopic Projector Lift

Enquire for price

The GPAD/AC 58 Series is a telescopic ceiling projector lift for small and medium commercial and home projectors, with a rated load of 25 kg. A built-in electric double door hides the lift inside the ceiling when it is closed. Ten travel lengths from 500 mm to 5000 mm are available, with RF, dry contact and RS485 control.
Enquire on WhatsApp Enquire by email

Email not opening? Write to support@avprojectorroom.com and quote "Grandview GPAD/AC 58 Series Telescopic Projector Lift".
Total: MYR 0.00
SKU: GPAD/AC 58
Tags:
Collections:
Fast Nationwide ShippingFree shipping over RM500.
100% Genuine ProductsWe only sell authentic, certified electronics.
Free Tech SupportHelp & troubleshooting 24/7

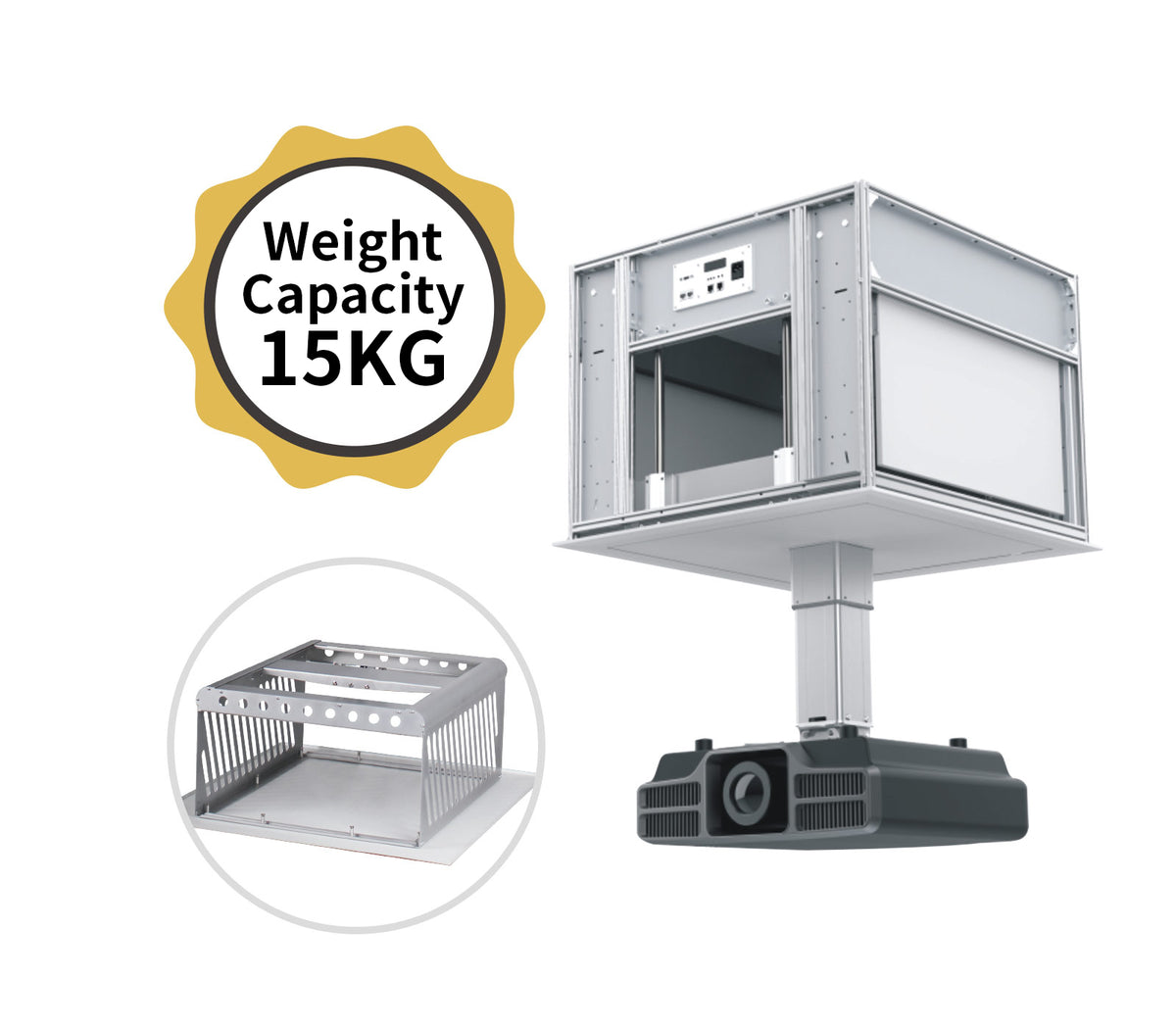

GrandviewGrandview GPAD/AC 50 Series Telescopic Projector Lift
Grandview GPAD/AC 50 Series Telescopic Projector Lift

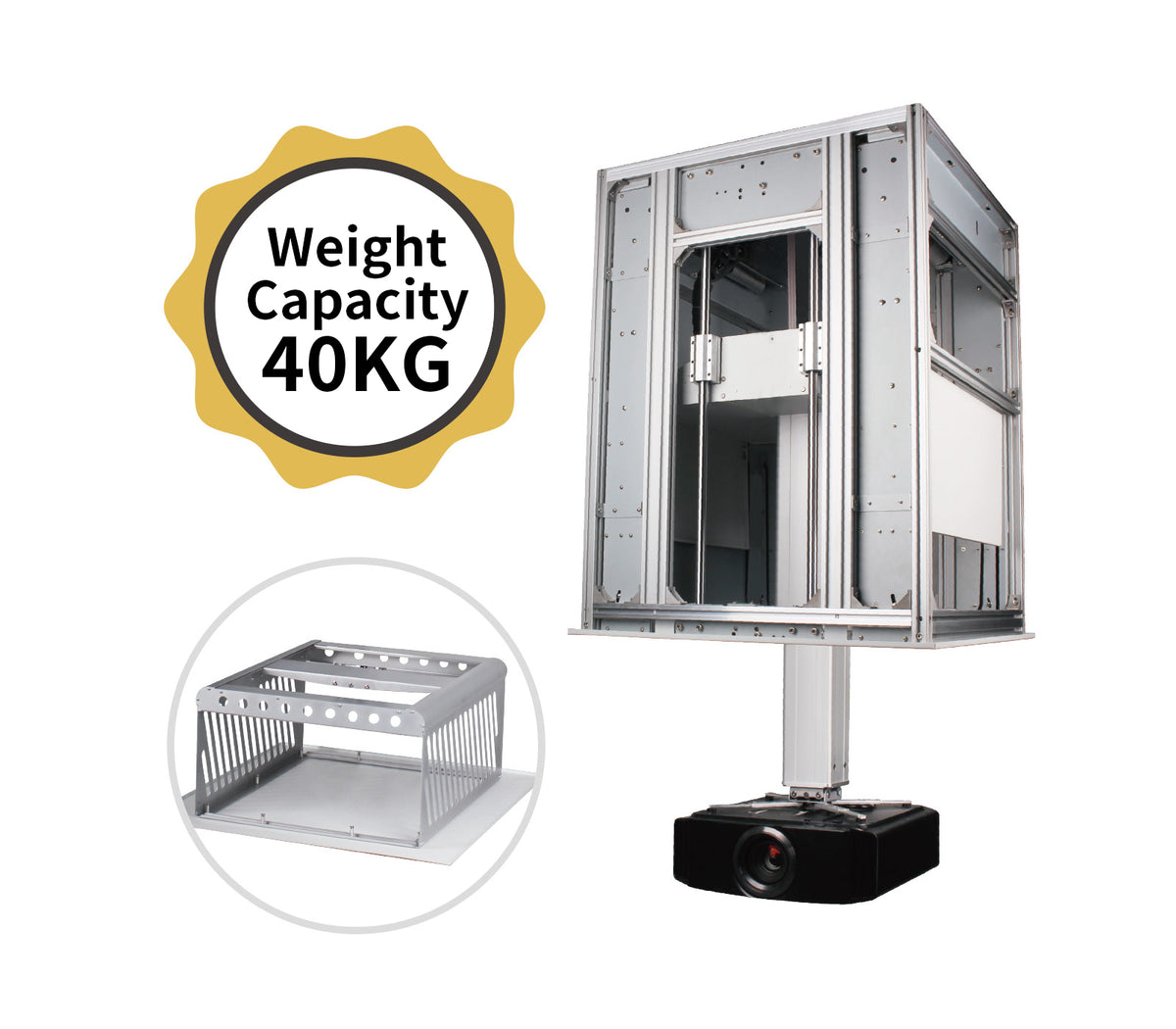

Grandview GPAD/AC 64 Series Telescopic Projector Lift
GrandviewGrandview GPAD/AC 64 Series Telescopic Projector Lift
Grandview GPAD/AC 58 Series Telescopic Projector Lift
Enquire for price
  • A telescopic ceiling lift for small and medium commercial and home projectors. A built-in electric double door hides the lift in the ceiling once it closes.
  • Stable Guide-Pillar LiftingGuide-pillar lifting with a built-in precision screw drive and multi-point lifting keeps the projector steady throughout its travel.
  • Patented Cable ManagementThe patented wire-collection design allows the lift to raise and lower without a load.
  • Multiple Safety ProtectionsAnti-fall protection, a fully enclosed aluminium alloy frame and an industrial long-running motor give safe, durable operation.
  • High-Precision PositioningA multi-section aluminium alloy square tube, double-opening inner door and high-precision encoder deliver positioning accuracy of ≤1 mm, with RF and RS485 positioning.
  • Built-In CablesIncludes projector power cable ×1, HDMI 2.0 ×1 and Category 6 network cable ×1 (other requirements can be customised).
  • Universal Projector MountUniversal mounting claws are adjustable through multiple angles to suit most projectors.
  • Flexible ControlControl by RF remote, weak-current dry contact or RS485 code.
  • Models
    • GPAD/AC 5850 (II): travel 5000 mm · product dimensions 760×760×1622 mm · net weight 141 kg · packing 880×1772×880 mm
    • GPAD/AC 5845 (II): travel 4500 mm · product dimensions 760×760×1522 mm · net weight 133 kg · packing 880×1672×880 mm
    • GPAD/AC 5840 (II): travel 4000 mm · product dimensions 760×760×1422 mm · net weight 125 kg · packing 880×1572×880 mm
    • GPAD/AC 5835: travel 3500 mm · product dimensions 760×760×1462.5 mm · net weight 117 kg · packing 880×1612.5×880 mm
    • GPAD/AC 5830: travel 3000 mm · product dimensions 760×760×1337.5 mm · net weight 109 kg · packing 880×1487.5×880 mm
    • GPAD/AC 5825: travel 2500 mm · product dimensions 760×760×1212.5 mm · net weight 101 kg · packing 880×1362.5×880 mm
    • GPAD/AC 5820: travel 2000 mm · product dimensions 760×760×1087.5 mm · net weight 93 kg · packing 880×1237.5×880 mm
    • GPAD/AC 5815: travel 1500 mm · product dimensions 760×760×962.5 mm · net weight 85 kg · packing 880×1112.5×880 mm
    • GPAD/AC 5810: travel 1000 mm · product dimensions 760×760×837.5 mm · net weight 80 kg · packing 880×987.5×880 mm
    • GPAD/AC 5805: travel 500 mm · product dimensions 760×760×712.5 mm · net weight 60 kg · packing 880×862.5×880 mm
  • Load & Projector Size
    • Max load: 25 kg
    • Max projector dimensions (with cables and lens): 580×550×260 mm
    • Angle adjustment: 1° / 8° / 4° / 4° (up / down / left / right)
  • Installation
    • Jib attachment: 453×740 mm
    • Decorative plate: 800×800 mm
    • Ceiling opening: 775×775 mm
    • Required ceiling opening height: greater than H+50 mm
  • Performance
    • Power: 100 W
    • Voltage: 220V / 110V
    • Positioning precision: less than 2 mm
    • Noise: ≤55 dB
  • Control & Cables
    • Dry contact: yes
    • RS485 control: GPAD/AC 5810 and 5805 only
    • Wireless control: yes
    • Built-in cables: Category 6 network cable ×1, HDMI 2.0 ×1, power cord ×1
  • What's in the Box
    • GPAD/AC 58 Series projector lift
    • RF remote control
    • Screws: 4×25, 5×25 and 6×25 (4 pcs each)
    • Gasket
    • Limit adjustment tool
    • Power line

    • Download Brochure (PDF)

    Download User Manual

    More manuals & downloads

    GPAD/AC 58 Drawing (Toptu) (PDF)

    Control options

    • RS485
    • Wall Switch
    • Wireless RF
